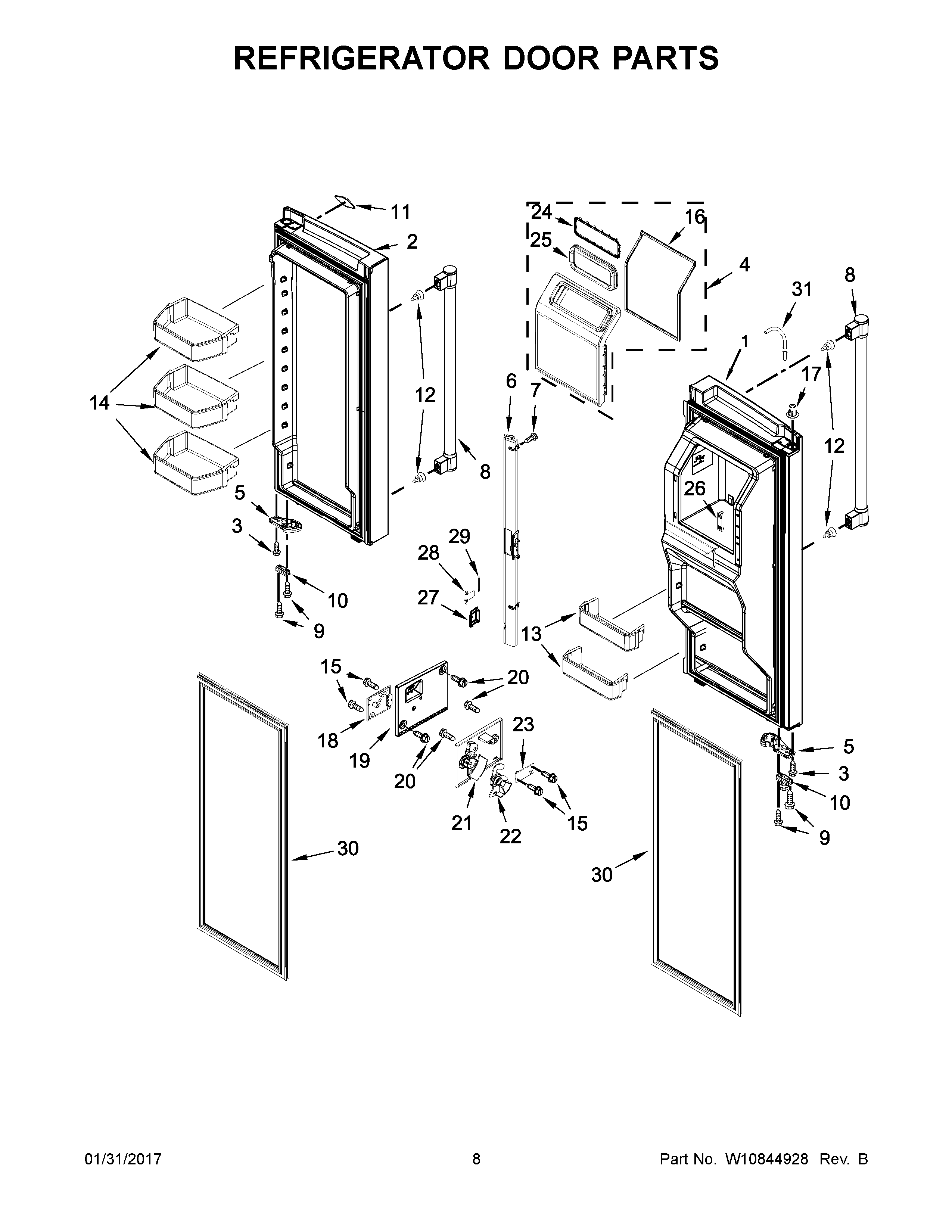

MFT2776DEE02 05 – REFRIGERATOR DOOR PARTS

MFT2776DEE02 05 – REFRIGERATOR DOOR PARTS

Written by

in

MFT2776DEE02 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY W10624490
1B	DOOR, LEFT (STAINLESS)
1A	DOOR, LEFT (BLACK)
2B	DOOR, RIGHT (STAINLESS)
2A	DOOR, RIGHT (BLACK)
2	DOOR, RIGHT (WHITE)
3	SCREW
4	MAY W10549593
5	MAY W10712952
5A	MAY W10712953
6B	MAY W10698199
6A	MAY W10698196
6	MAY W10698195
7	MAY 12990204
8	MAY W10643725N
9	MAY 12990504
10	BUMPER, DOOR (WHITE)
10A	BUMPER, DOOR (BLACK)
10B	MAY W10407188
11	MAY W10612926
12	MAY W10460893
13	TRIVET, 2 LITER
14	BUCKET, GALLON
15	Screw (2)
16	MAY W10347085
17	CLIP, TUBE
18	MAY W10518658
19	MAY W10258510
20	SCREW (STAINLESS)
21	MAY W10258502
22	MAY W10258540
23	MAY W10832970
24	RETAINER, ICE CHUTE
25	MAY W10347087
26	MAY W10646855
27	DOOR, EMITTER
28	SPRING, DOOR
29	PIN, DOOR
30B	GASKET, DOOR (GREY)
30	GASKET, DOOR (WHITE)
30A	GASKET, DOOR (BLACK)
31	MAY W10499015
