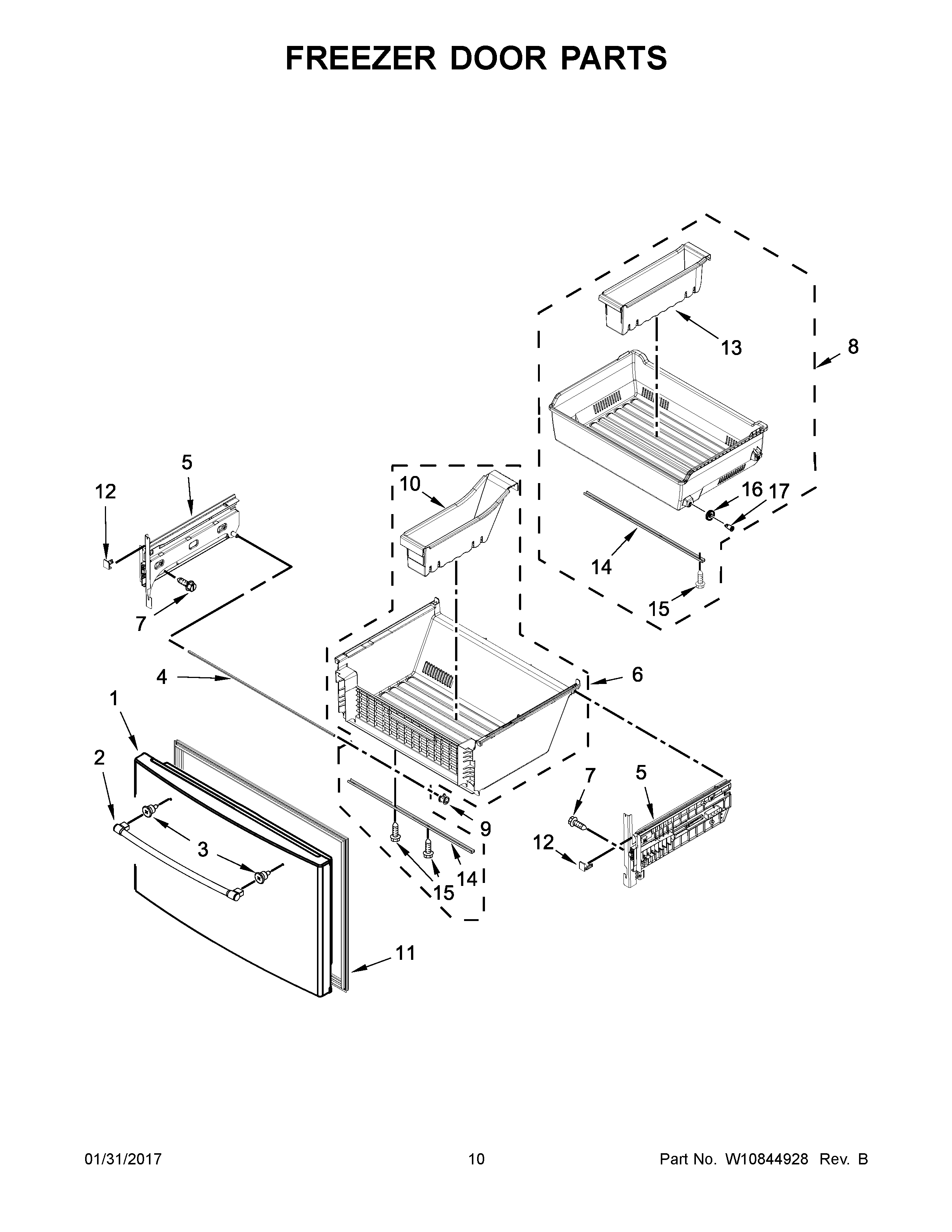

MFT2776DEE02 06 – FREEZER DOOR PARTS

MFT2776DEE02 06 – FREEZER DOOR PARTS

Written by

in

MFT2776DEE02 06 – FREEZER DOOR PARTS

Products

Position	Product
1B	DOOR, FREEZER (STAINLESS)
1A	DOOR, FREEZER (BLACK)
1	DOOR, FREEZER (WHITE)
2	MAY W10663448N
3	MAY W10460893
4	MAY W10503522
5	MAY W10795770
5A	MAY W10795768
6	ASSEMBLY, LOWER PAN
7	SCREW
8	BIN, UPPER
9	MAY W10709748
10	MAY W10507444
11B	MAY W10248749
11A	MAY W10248748
11	MAY W10587578
12A	MAY W10485089
12	MAY W10485096
13	MAY W10485654
14	SUPPORT, PAN
15	SCREW (STAINLESS)
16	MAY W10248555
17	MAY W10643690
