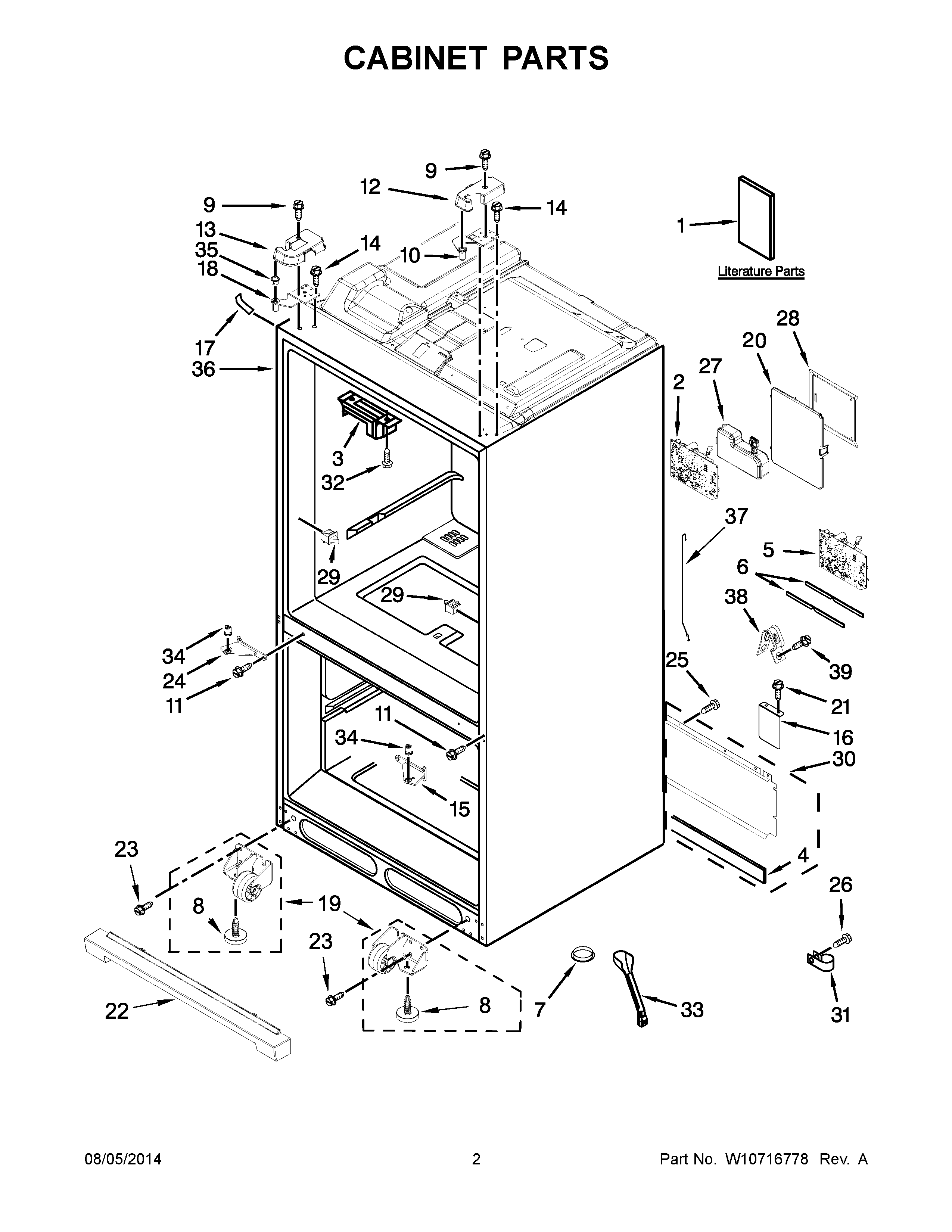

MFT2776DEH00 02 – CABINET PARTS

Products

Position	Product
1A	MAY W10694182
1C	ENERGY GUIDE
1	MAY W10710876
1B	MAY W10694186
2	SUPPLY, POWER
3	MAY W10344432
4	MAY W10505487
5	MAY W10589837
6	GASKET, HV BOX
7	A3076901 Whirlpool Refrigerator Plug
8	Brake, Foot
9	MAY 12992602
10	HINGE, TOP (RIGHT HAND)
11A	MAY W10403211
11B	SCREW
11	MAY W10403208
12A	MAY W10407157
12	MAY W10248562
12B	MAY W10407158
13A	COVER, LEFT HINGE (BLACK)
13	MAY W10471615
13B	MAY W10471618
14	SCREW (BLACK)
15	HINGE, CENTER (RT) (WHITE)
15B	HINGE, CENTER (RIGHT) (GREY)
15A	HINGE, CENTER (RT) (BLACK)
16	MAY W10336736
17	Cover, Corner (2) (White)
17B	COVER, CORNER (GREY)
17A	COVER, CORNER (BLACK)
18	HINGE, TOP (LEFT HAND)
19A	ROLLER ASSEMBLY (RIGHT HAND)
19	ROLLER ASSEMBLY (LEFT HAND)
20	MAY W10277839
21	MAY 12990701
22B	MAY W10637671
22A	MAY W10637669
22	MAY W10637668
23	Screw (8)
24	HINGE, CENTER (LT) (WHITE)
24A	HINGE, CENTER (LT) (BLACK)
24B	HINGE, CENTER (LEFT) (GREY)
26	SCREW (10)
27	SUPPLY, LED POWER
28	MAY W10485658
29	MAY 12466105
30	MAY W10577369
31	CLAMP, TUBE
32	Screw (4)
33	MAY W10503562
34	MAY W10505294
35	MAY W10212137
36	LINER (NOT A SERVICEABLE PART)
37	MAY W10678711
38	MAY 549193
39	MAY W10141645
