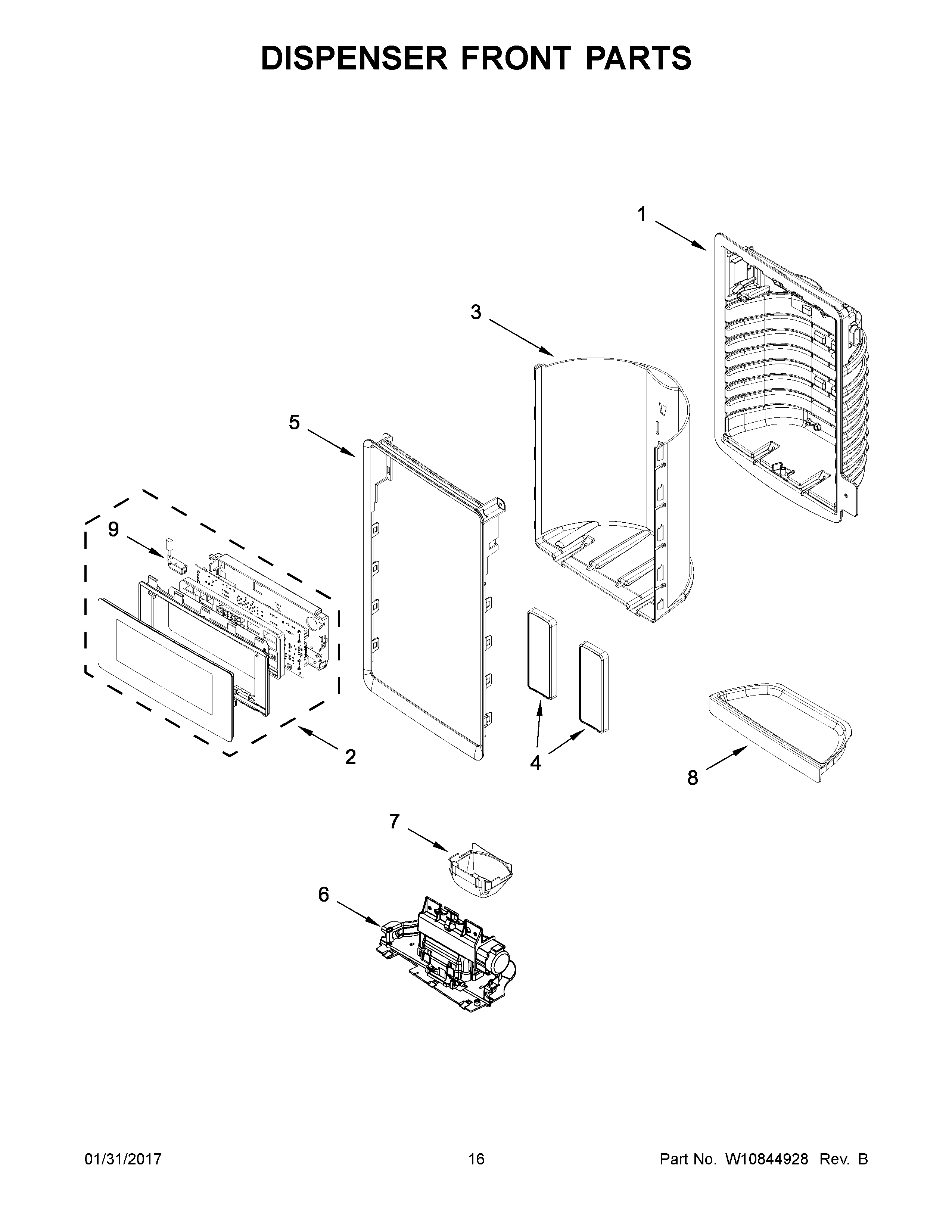

MFT2776DEH02 09 – DISPENSER FRONT PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2MAY W10845529
3WALL, DISPENSER FALSE (WHITE)
3AWALL, DISPENSER FALSE (GREY)
4AASSEMBLY, PAD (STAINLESS)
4ASSEMBLY, PAD (WHITE)
5MAY W10587907
5ARING, TRIM (STAINLESS)
6MAY W10577864
7MAY W10435760
8MAY W10322872
8AMAY W10410105
9ASSEMBLY, LED
