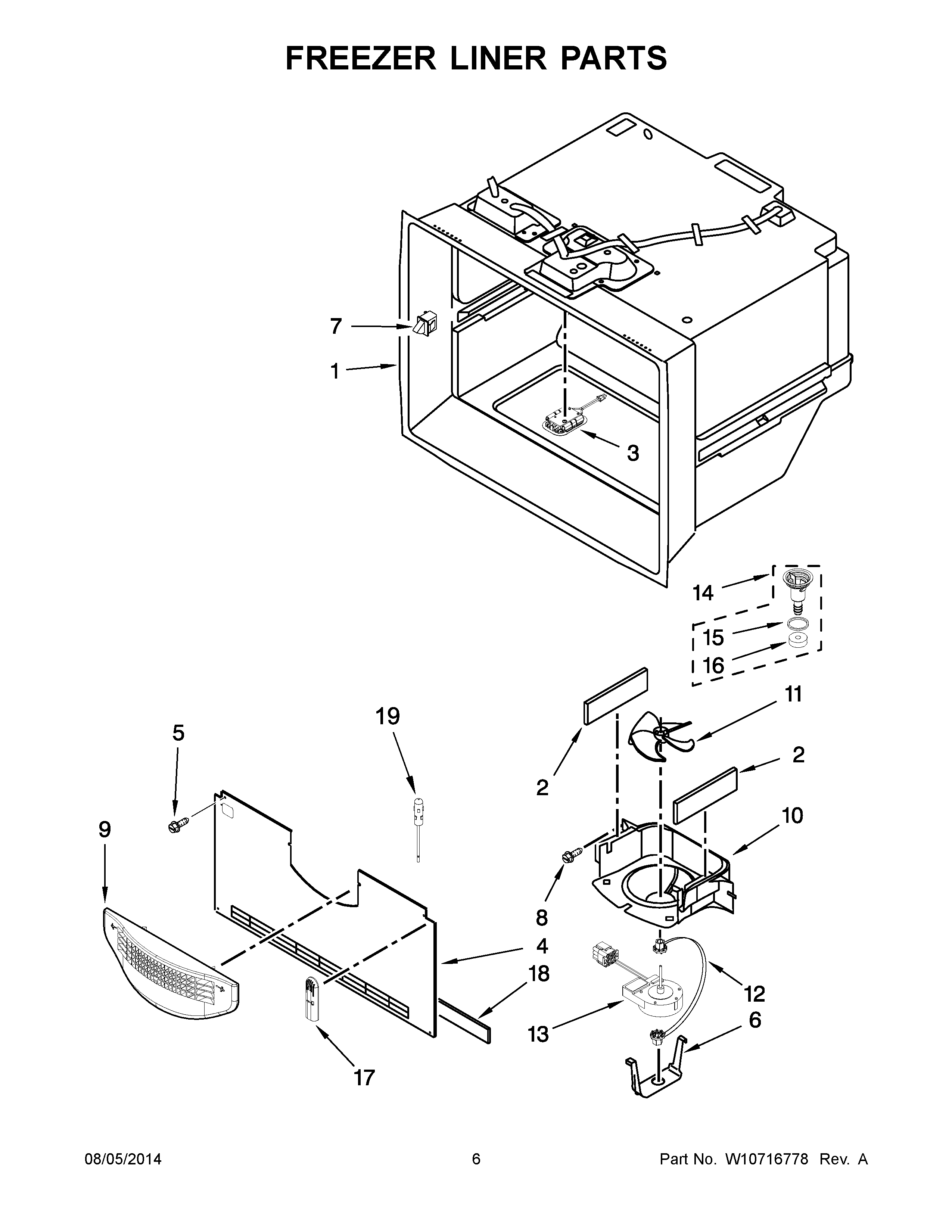

MFT2776DEM00 04 – FREEZER LINER PARTS

MFT2776DEM00 04 – FREEZER LINER PARTS

Written by

in

MFT2776DEM00 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	MAY W10637153
4	MAY W10513424
5	SCREW (10)
6	MAY 12956601
7	SWITCH, LIGHT (2)
8	MAY 12990504
9	GRILLE, AIR (FREEZER)
10	SHROUD, EVAPORATOR FAN
11	Blade, Fan (Evaporator)
12	Grommet, Fan Motor (2)
13	MAY W10514110
14	ASSEMBLY, DRAIN FUNNEL
15	MAY M0500703
16	Gasket
17	MAY W10405166
18	MAY W10531268
19	THERMISTOR
