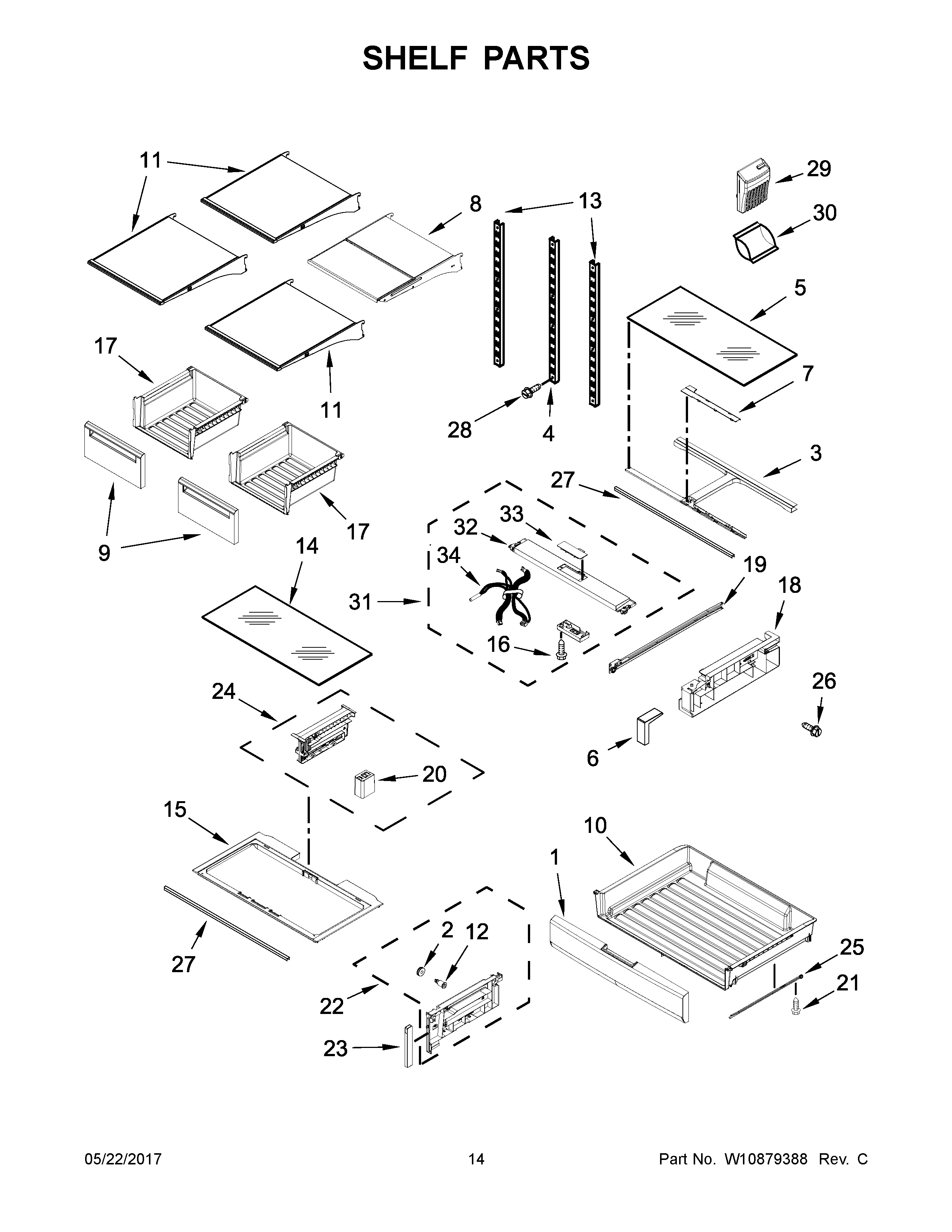

MFT2776FEZ00 08 – SHELF PARTS

Products

Position	Product
1	MAY W10559660
2	MAY W10248544
3	SUPPORT, PANTRY
4	MAY W10248516
5	MAY W10248799
6A	FRONT, SIDEPLATE (PANTRY) (RIGHT HAND)
6	FRONT, SIDEPLATE (PANTRY) (LEFT HAND)
7	SUPPORT, PANTRY COVER (INCLUDES GASKET)
8	SHELF, TUCK
9	FRONT, CRISPER
10	MAY W10498901
11	SHELF, FIXED
12	MAY W10257246
13	MAY W10372170
14	MAY W10248578
15	COVER, CRISPER
16	MAY 12990204
17	MAY W10410352
18A	SIDEPLATE, PANTRY (RIGHT HAND)
18	SIDEPLATE, PANTRY (LEFT HAND)
19	MAY W10508327
19A	MAY W10508326
20	MAY W10530315
21	SCREW
22	SIDEPLATE, CRISPER (LEFT HAND)
22A	SIDEPLATE, CRISPER (RIGHT HAND)
23	FRONT, SIDEPLATE (CRISPER)
24	TRACK ASSEMBLY, CRISPER
25A	RUNNER, PANTRY ROLLER (RIGHT HAND)
25	RUNNER, PANTRY ROLLER (LEFT HAND)
26	MAY W10185612
27	MAY W10236512
28	MAY W10423560
29	MAY W10408748
30	MAY W10346771
31	COVER, FRONT (INCLUDES LED ASSEMBLY)
32	COVER, TOP
33	ASSEMBLY, USER INTERFACE
34	ASSEMBLY, PANTRY WIRE (INCLUDES THERMISTOR)
