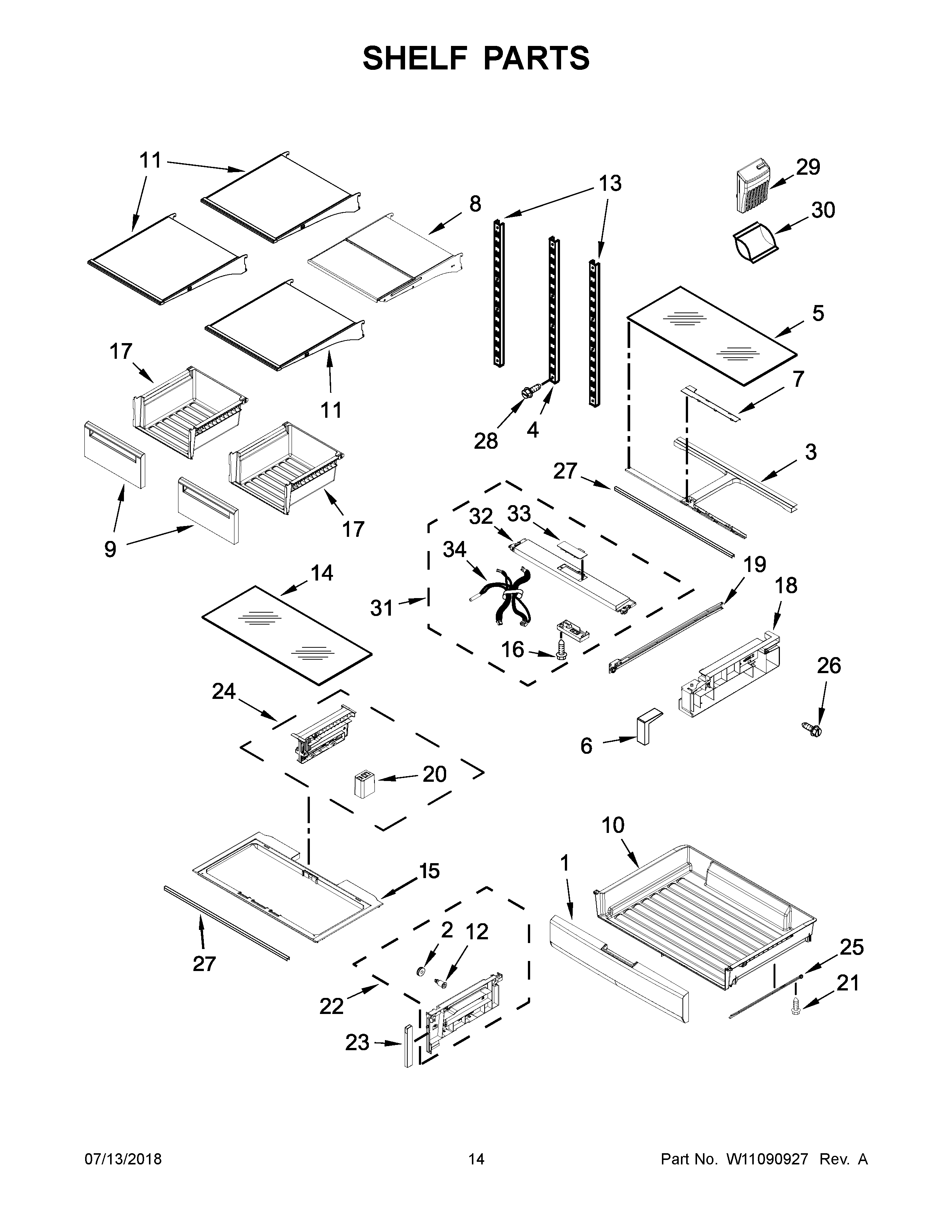

MFT2776FEZ01 08 – SHELF PARTS

Products

PositionProduct
1MAY W10559660
2MAY W10248544
3SUPPORT, PANTRY
4MAY W10248516
5MAY W10248799
6AFRONT, SIDEPLATE (PANTRY) (RIGHT HAND)
6FRONT, SIDEPLATE (PANTRY) (LEFT HAND)
7SUPPORT, PANTRY COVER (INCLUDES GASKET)
8SHELF, TUCK
9FRONT, CRISPER
10MAY W10498901
11SHELF, FIXED
12MAY W10257246
13MAY W10372170
14MAY W10248578
15COVER, CRISPER
16MAY 12990204
17MAY W10410352
18ASIDEPLATE, PANTRY (RIGHT HAND)
18SIDEPLATE, PANTRY (LEFT HAND)
19MAY W10508327
19AMAY W10508326
20MAY W10530315
21SCREW
22SIDEPLATE, CRISPER (LEFT HAND)
22ASIDEPLATE, CRISPER (RIGHT HAND)
23FRONT, SIDEPLATE (CRISPER)
24TRACK ASSEMBLY, CRISPER
25ARUNNER, PANTRY ROLLER (RIGHT HAND)
25RUNNER, PANTRY ROLLER (LEFT HAND)
26MAY W10185612
27MAY W10236512
28MAY W10423560
29MAY W10408748
30MAY W10346771
31COVER, FRONT (INCLUDES LED ASSEMBLY)
32COVER, TOP
33ASSEMBLY, USER INTERFACE
34ASSEMBLY, PANTRY WIRE (INCLUDES THERMISTOR)
