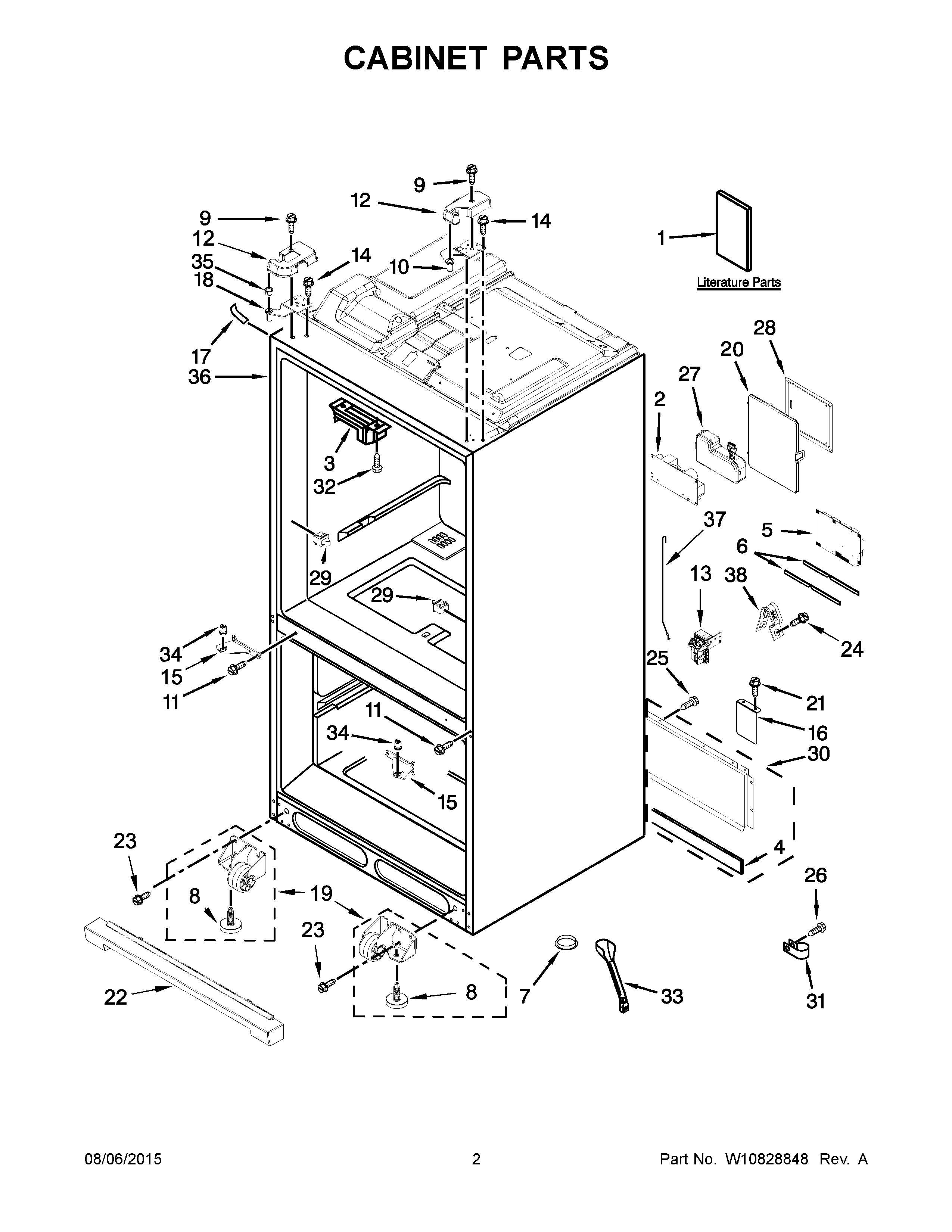

MFT2778EEZ00 02 – CABINET PARTS

Products

Position	Product
1A	MAY W10739710
1B	TECH SHEET (ENERGY GUIDE)
1	MAY W10739699
2	SUPPLY, POWER
3	MAY W10344432
4	MAY W10505487
5	MAY W10774170
6	GASKET, HV BOX
7	A3076901 Whirlpool Refrigerator Plug
8	Brake, Foot
9	MAY 12992602
10	HINGE, TOP (RIGHT HAND)
11	SCREW
12	MAY W10471618
12A	MAY W10407158
13	VALVE, WATER
14	SCREW (BLACK)
15A	HINGE, CENTER (RIGHT) (GREY)
15	HINGE, CENTER (LEFT) (GREY)
16	MAY W10336736
17	COVER, CORNER (GREY)
18	HINGE, TOP (LEFT HAND)
19A	ROLLER ASSEMBLY (RIGHT HAND)
19	ROLLER ASSEMBLY (LEFT HAND)
20	MAY W10277839
21	MAY 12990701
22	MAY W10637671
23	Screw (8)
25	MAY W10141645
26	SCREW (10)
27	MAY W10306786
28	MAY W10485658
29	MAY 12466105
30	MAY W10577369
31	CLAMP, TUBE
32	Screw (4)
33	MAY W10503562
34	MAY W10505294
35	MAY W10212137
36	LINER (NOT A SERVICEABLE PART)
37	MAY W10678711
38	MAY 549193
