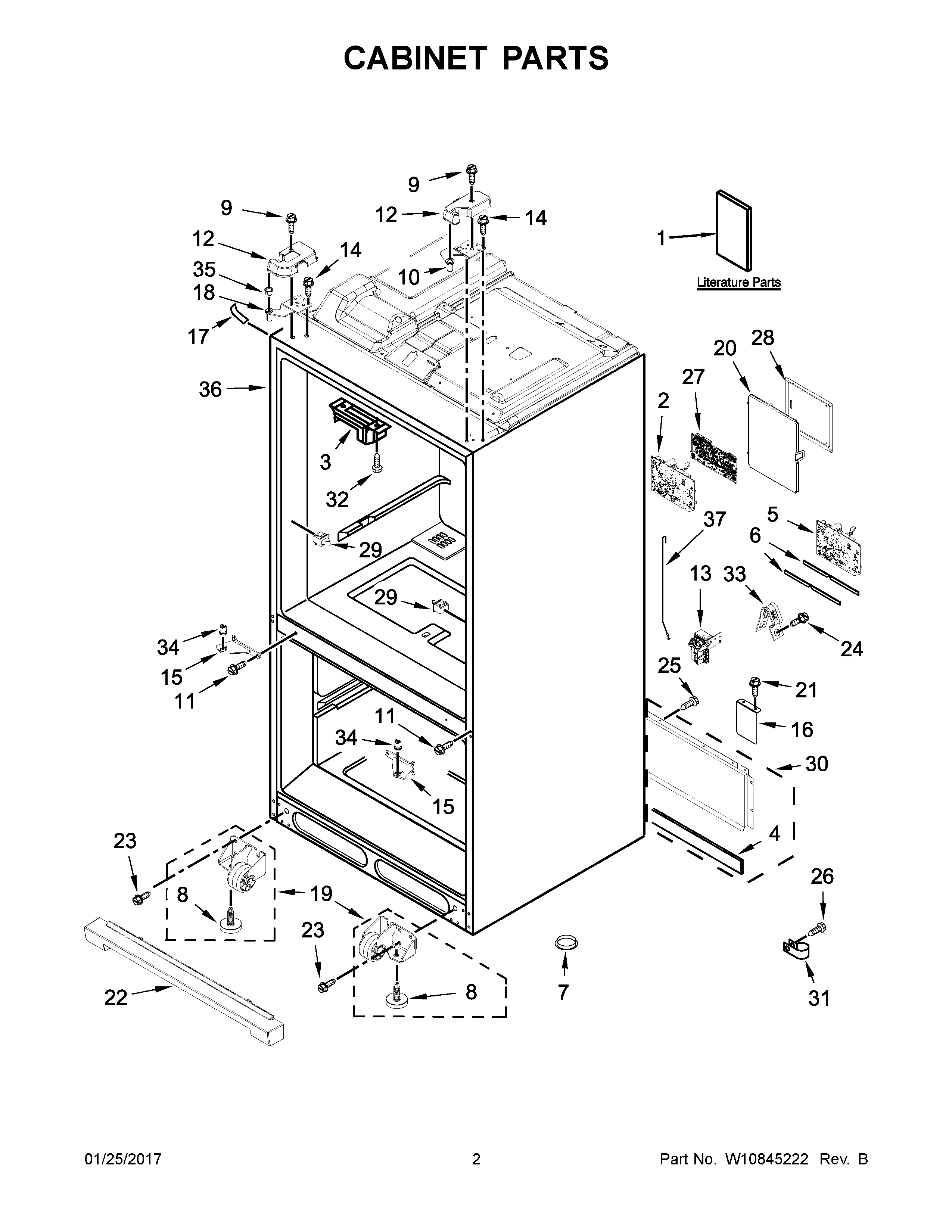

MFT2778EEZ01 02 – CABINET PARTS

Products

PositionProduct
1BTECH SHEET (FRENCH)
1ATECH SHEET (ENGLISH)
1MAY W10859990
1CTECH SHEET (ENERGY GUIDE)
2MAY W10665178
3MAY W10344432
4MAY W10505487
5MAY W10811364
6GASKET, HV BOX
7A3076901 Whirlpool Refrigerator Plug
8Brake, Foot
9MAY 12992602
10HINGE, TOP (RIGHT HAND)
11MAY W10673840
12MAY W10471618
12AMAY W10407158
13VALVE, WATER
14SCREW
15AHINGE, CENTER (RIGHT) (GREY)
15HINGE, CENTER (LEFT) (GREY)
16MAY W10336736
17COVER, CORNER (GREY)
18HINGE, TOP (LEFT HAND)
19AROLLER ASSEMBLY (RIGHT HAND)
19ROLLER ASSEMBLY (LEFT HAND)
20MAY W10277839
21SCREW
22MAY W10637671
23MAY W10709365
25MAY W10141645
26SCREW (10)
27MAY W10790783
28MAY W10754591
29MAY 12466105
30MAY W10577369
31CLAMP, TUBE
32Screw (4)
33MAY 549193
34MAY W10505294
35MAY W10212137
36LINER (NOT A SERVICEABLE PART)
37MAY W10678711
