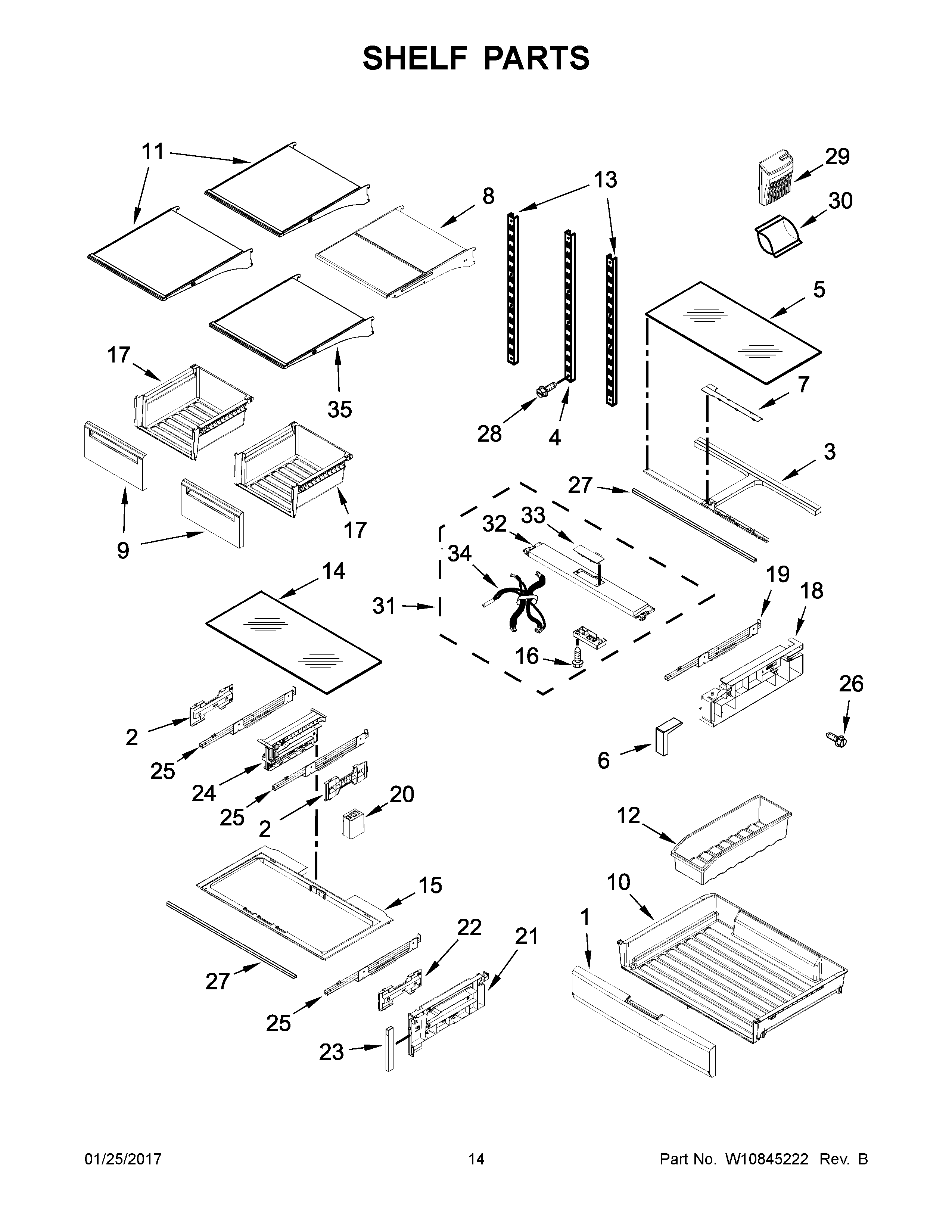

MFT2778EEZ01 08 – SHELF PARTS

Products

Position	Product
1	MAY W10559660
2	PLATE, SLIDE CENTER
3	SUPPORT, PANTRY
4	MAY W10719661
5	MAY W10248799
6A	FRONT, SIDEPLATE (PANTRY) (RIGHT HAND)
6	FRONT, SIDEPLATE (PANTRY) (LEFT HAND)
7	SUPPORT, PANTRY COVER (INCLUDES GASKET)
8	SHELF, TUCK
9	FRONT, CRISPER
10	PAN, PANTRY
11	SHELF, FIXED
12	DIVIDER, PANTRY
13	MAY W10719660
14	MAY W10248578
15	COVER, CRISPER
16	MAY 12990204
17	MAY W10410352
18	SIDEPLATE, PANTRY (LEFT HAND)
18A	SIDEPLATE, PANTRY (RIGHT HAND)
19A	SLIDE, PANTRY (RIGHT HAND)
19	SLIDE, PANTRY (LEFT HAND)
20	MAY W10530315
21	PLATE, CRISPER (LEFT HAND)
21A	PLATE, CRISPER (RIGHT HAND)
22	PLATE, SIDE
23	FRONT, SIDEPLATE (CRISPER)
24	TRACK, CENTER
25	SLIDE, CRISPER
26	Screw (4)
27	MAY W10236512
28	MAY W10423560
29	MAY W10408748
30	MAY W10346771
31	COVER, FRONT (INCLUDES LED ASSEMBLY)
32	COVER, TOP
33	ASSEMBLY, USER INTERFACE
34	ASSEMBLY, PANTRY WIRE (INCLUDES THERMISTOR)
35	SHELF, FIXED LIGHTED
