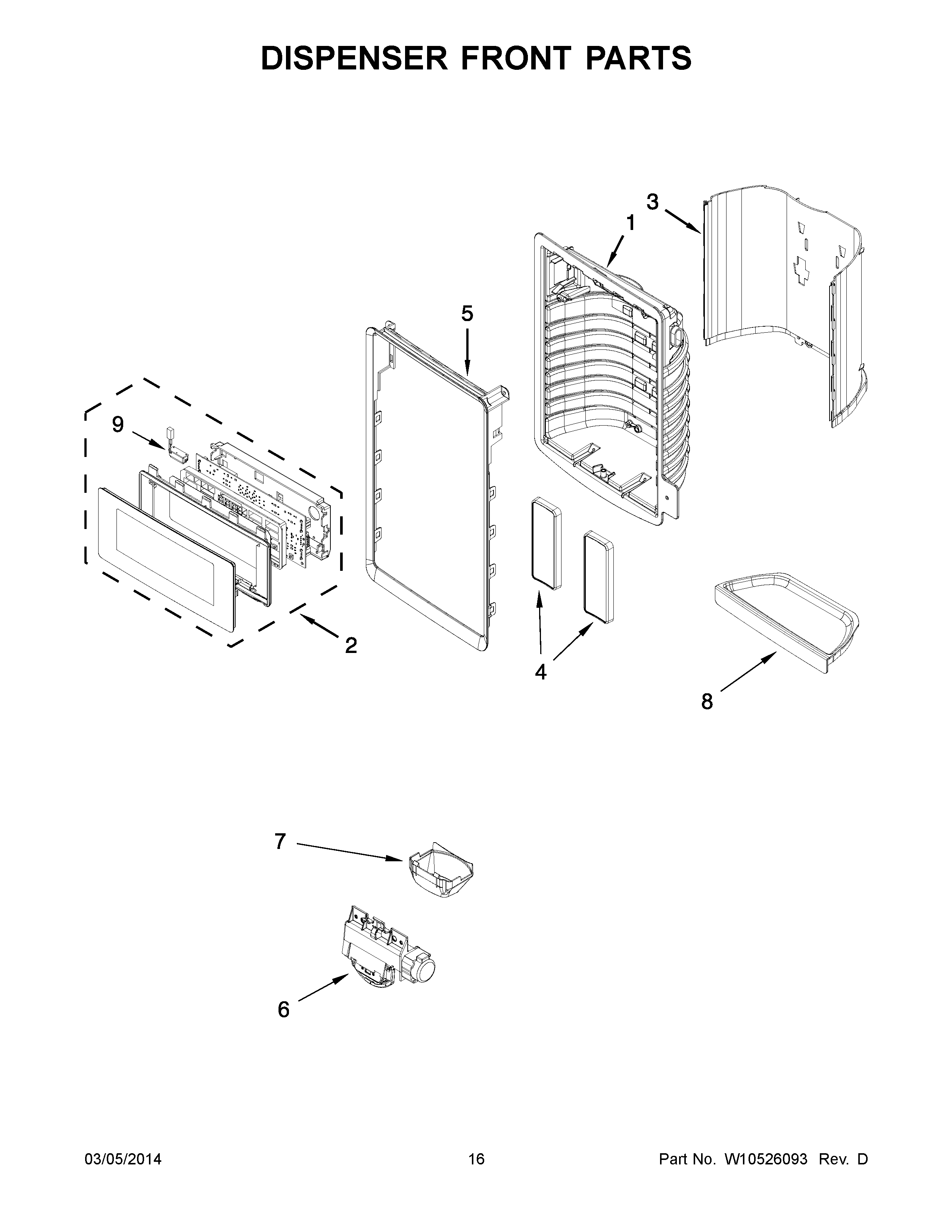

MFT2976AEB00 09 – DISPENSER FRONT PARTS

MFT2976AEB00 09 – DISPENSER FRONT PARTS

Written by

in

MFT2976AEB00 09 – DISPENSER FRONT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10549068
2	MAY W10549067
2	MAY W10549041
3	MAY W10520868
3	WALL, DISPENSER FALSE (WHITE)
3	WALL, DISPENSER FALSE (GREY)
4	MAY W10436677
4	ASSEMBLY, PAD (WHITE)
4	ASSEMBLY, PAD (STAINLESS)
5	MAY W10322864
5	MAY W10587907
5	MAY W10423497
6	MAY W10577864
7	MAY W10435760
8	MAY W10410105
8	MAY W10322873
8	MAY W10322872
9	ASSEMBLY, LED
