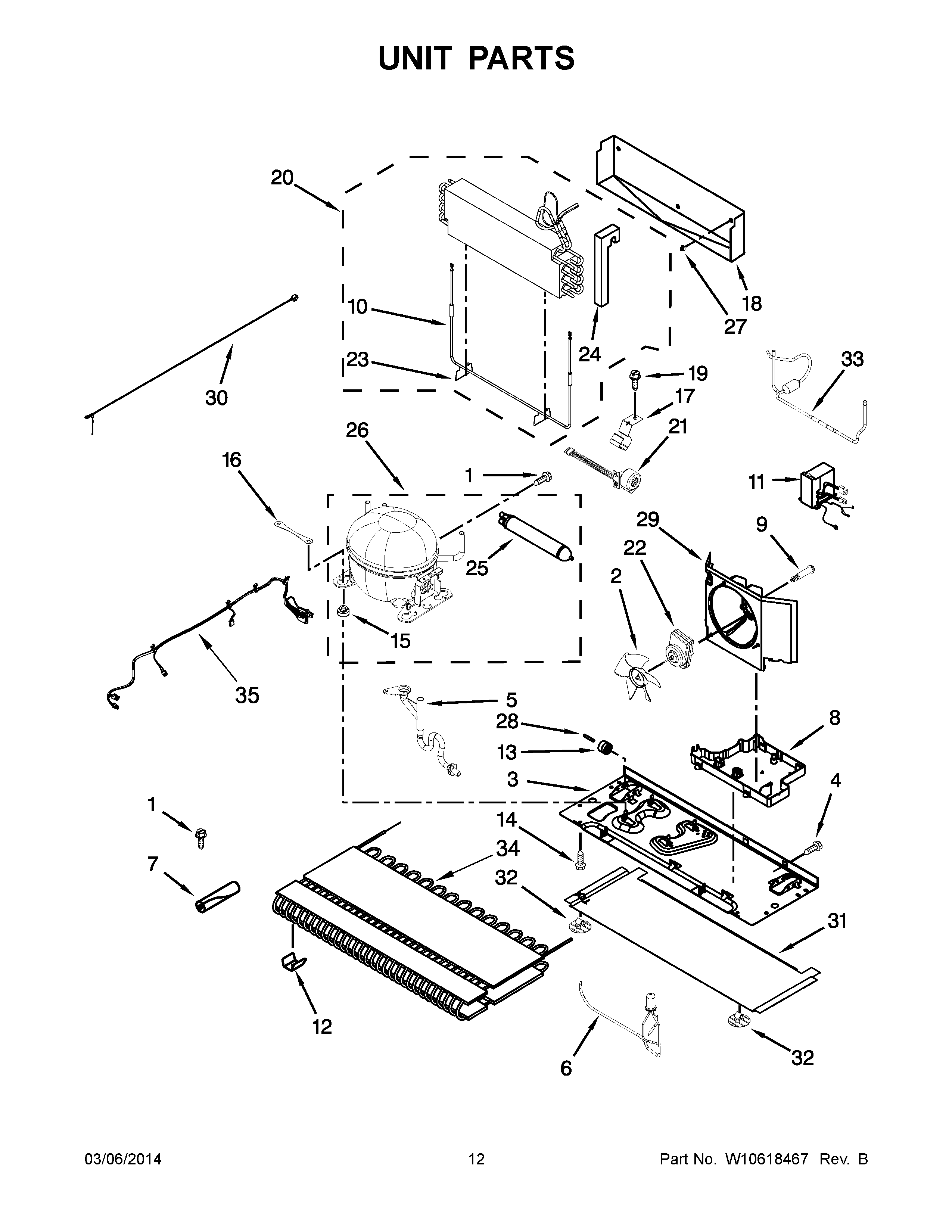

MFT2976AEB01 07 – UNIT PARTS

Products

Position	Product
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (5/8“)
NI	Valve, Access (1/2“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
1	MAY 12992301
2	Fan, Blade
3	MAY W10570074
4	SCREW (10)
5	MAY W10547687
6	MAY W10391081
7	MAY W10303521
8	MAY W10238584
9	MAY W10622701
10	MAY 12729128
11	MAY W10465778
12	CLIP, CONDENSER
13	Roller (2)
14	MAY 12992101
15	GROMMET, AIR RETURN
16	MAY W10236396
17	BRACKET, VALVE
18	MAY W10342573
19	SCREW 8-32 X 1/2
20	MAY W10608485
21	COIL, 3 WAY VALVE
22	MOTOR, CONDENSOR
23	W11673433 Whirlpool Clip
24	MAY W10491355
25	DRIER
26	COMPRESSOR (INCLUDES ITEMS 11,12,17,27)
27	MAY W10142294
28	Axle, Roller (2)
29	MAY W10406719
30	MAY W10494227
31	MAY W10278140
32	CLIP, BOTTOM COVER
33	MAY W10626970
34	CONDENSER ASSEMBLY
35	MAY W10442270
