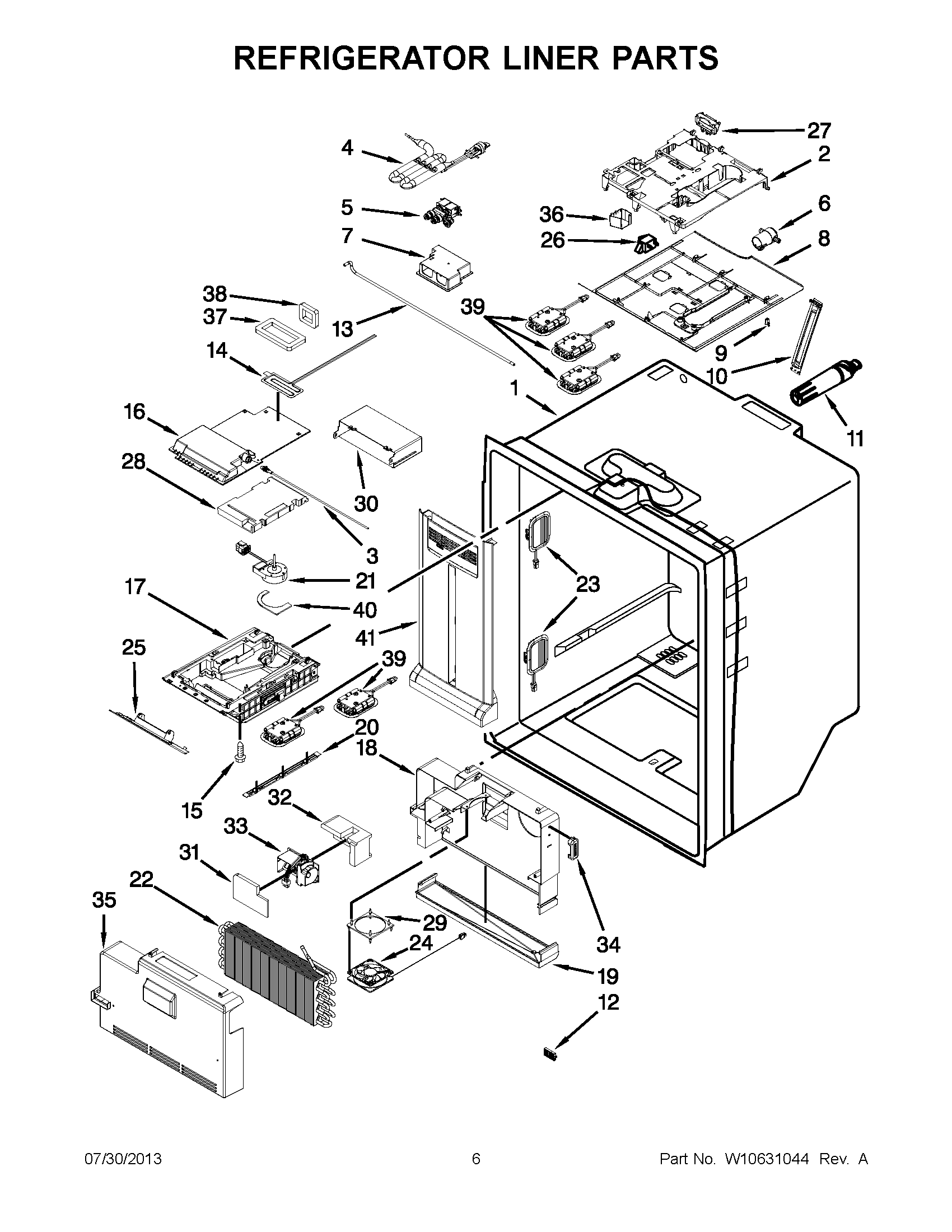

MFT2976AEB02 03 – REFRIGERATOR LINER PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	HARNESS, WIRE EVAPORATOR INCLUDES THERMISTOR
NI	MAY W10277801
2	MAY W10562486
3	MAY W10482107
4	MAY W10394084
5	MAY W10341329
6	MAY W10238156
7	MAY W10279854
8	MAY W10488685
9	LATCH, PUSH
10	MAY W10277949
11	MAY W10238154
12	FILTER, AIR
13	WATERLINE, VALVE TO \HINGE
14	MAY W10554299
15	SCREW
16	MAY W10598013
17	MAY W10492817
18	ENCLOSURE, EVAPORATOR
19	MAY W10525237
20	MAY W10505516
21	FAN, ICEBOX
22	MAY W10525236
23	MAY W10412708
24	MAY W10395278
25	MAY W10460932
26	SWITCH, LIGHT (2)
27	MAY W10434481
28	MAY W10280983
29	MAY W10389152
30	MAY W10519547
31	MAY W10389154
32	MAY W10389149
33	MAY W10248595
34	COVER, THERMISTOR
35	COVER, EVAPORATOR
37	MAY W10280988
38	MAY W10320706
40	MAY W10392172
41	MAY W10518047
