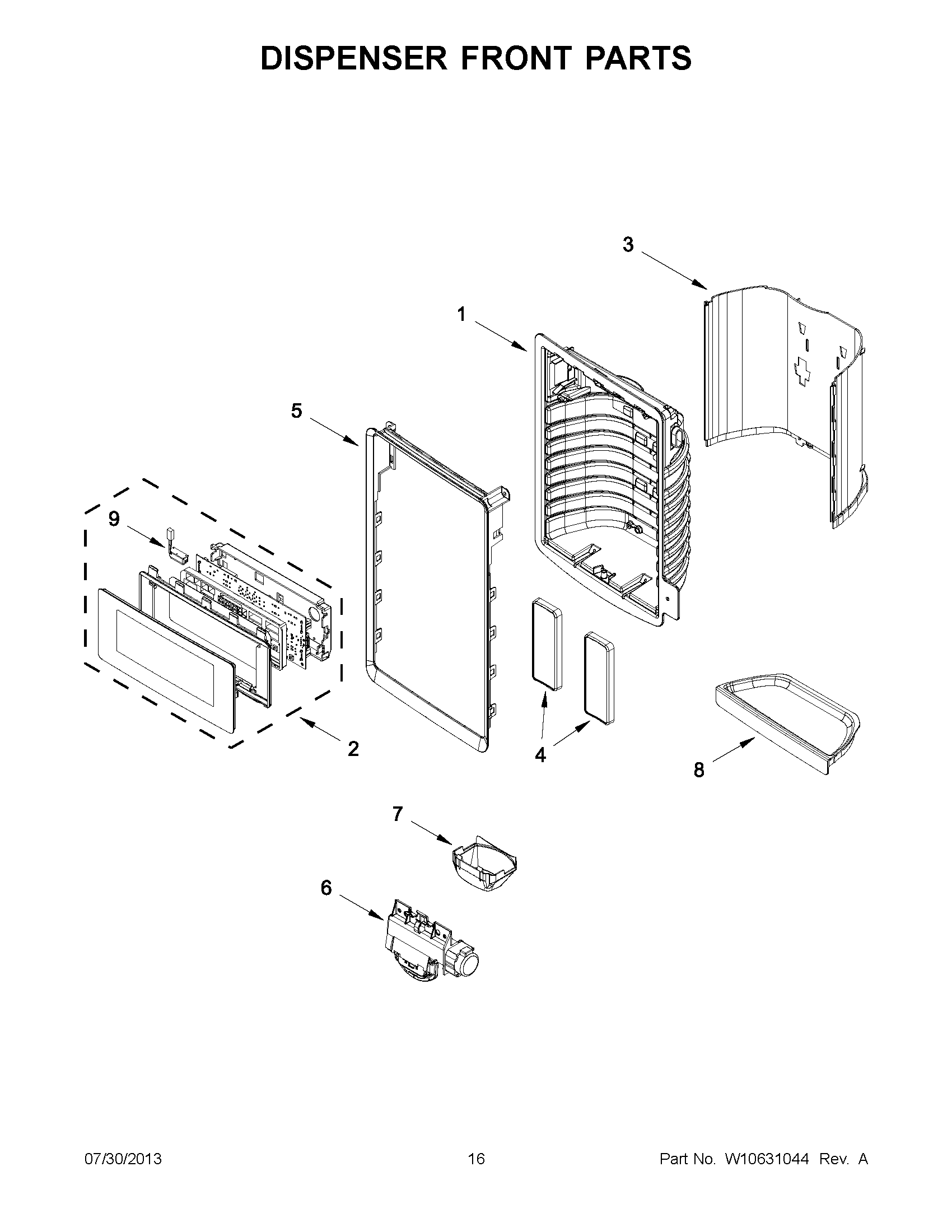

MFT2976AEB02 08 – DISPENSER FRONT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY W10590855
2	MAY W10590856
2	ASSEMBLY, USER INTERFACE (BLACK)
3	MAY W10520868
3	WALL, DISPENSER FALSE (WHITE)
3	WALL, DISPENSER FALSE (GREY)
4	MAY W10436677
4	ASSEMBLY, PAD (WHITE)
4	ASSEMBLY, PAD (STAINLESS)
5	RING, TRIM (STAINLESS)
5	MAY W10587908
5	MAY W10587907
6	MAY W10291704
7	MAY W10435760
8	MAY W10410105
8	MAY W10322873
8	MAY W10322872
9	ASSEMBLY, LED
