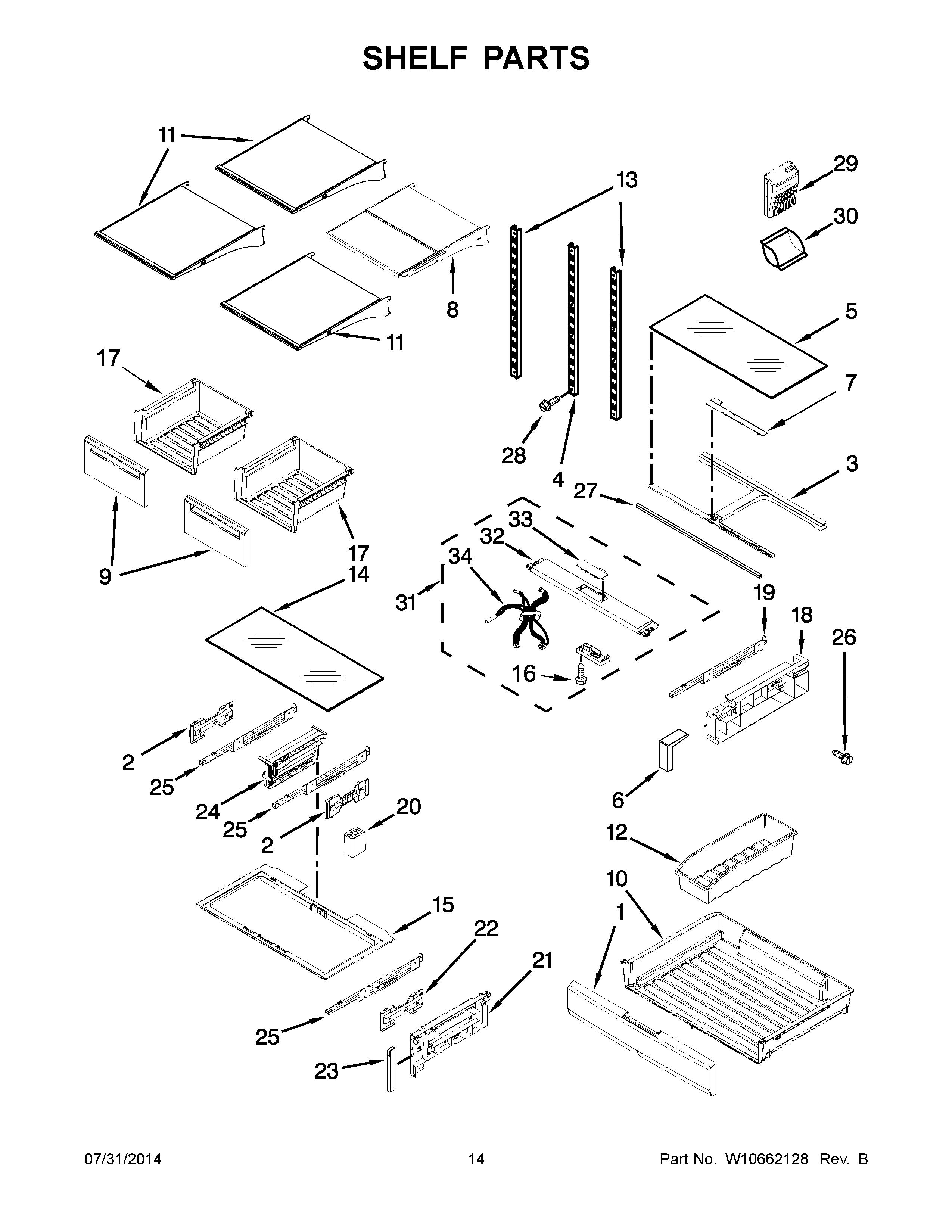

MFT2976AEB03 08 – SHELF PARTSadmin2025-04-26T09:06:33+00:00MFT2976AEB03 08 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10559660 |
| 2 | PLATE, SLIDE CENTER |
| 3 | SUPPORT, PANTRY |
| 4 | MAY W10248516 |
| 5 | MAY W10248799 |
| 6A | FRONT, SIDEPLATE (PANTRY) (RIGHT HAND) |
| 6 | FRONT, SIDEPLATE (PANTRY) (LEFT HAND) |
| 7 | SUPPORT, PANTRY COVER (INCLUDES GASKET) |
| 8 | SHELF, TUCK |
| 9 | FRONT, CRISPER |
| 10 | PAN, PANTRY |
| 11 | SHELF, FIXED |
| 12 | DIVIDER, PANTRY |
| 13 | MAY W10372170 |
| 14 | MAY W10248578 |
| 15 | MAY W10316419 |
| 16 | MAY 12990204 |
| 17 | MAY W10410352 |
| 18A | SIDEPLATE, PANTRY (RIGHT HAND) |
| 18 | SIDEPLATE, PANTRY (LEFT HAND) |
| 19 | SLIDE, PANTRY (LEFT HAND) |
| 19A | SLIDE, PANTRY (RIGHT HAND) |
| 20 | MAY W10530315 |
| 21A | PLATE, CRISPER (RIGHT HAND) |
| 21 | PLATE, CRISPER (LEFT HAND) |
| 22 | PLATE, SIDE |
| 23 | FRONT, SIDEPLATE (CRISPER) |
| 24 | TRACK, CENTER |
| 25 | SLIDE, CRISPER |
| 26 | Screw (4) |
| 27 | MAY W10236512 |
| 28 | MAY W10423560 |
| 29 | MAY W10408747 |
| 30 | MAY W10346771 |
| 31 | MAY W10584148 |
| 32 | COVER, TOP |
| 33 | MAY W10565997 |
| 34 | MAY W10442183 |
