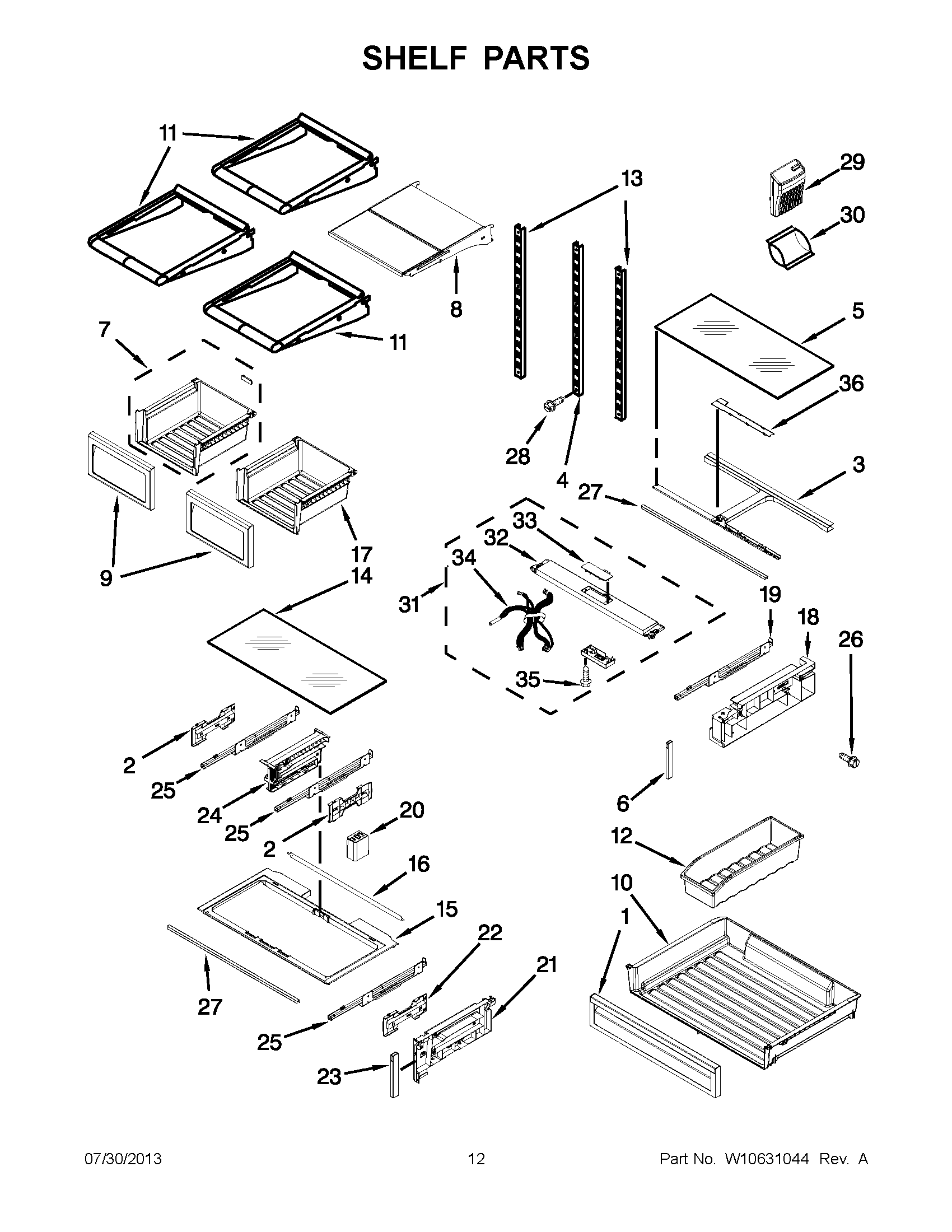

MFT2976AEM02 06 – SHELF PARTS

MFT2976AEM02 06 – SHELF PARTS

Written by

in

MFT2976AEM02 06 – SHELF PARTS

Products

PositionProduct
1MAY W10525198
2PLATE, SLIDE CENTER
3SUPPORT, PANTRY
4MAY W10248516
5MAY W10248799
6FRONT, SIDEPLATE (PANTRY) (LEFT HAND)
6FRONT, SIDEPLATE (PANTRY) (RIGHT HAND)
7MAY W10422682
8SHELF, TUCK
9FRONT, CRISPER
10MAY W10498901
11SHELF, FIXED
12DIVIDER, PANTRY
13MAY W10372170
14MAY W10248578
15MAY W10316419
16MAY W10248967
17MAY W10410352
18SIDEPLATE, PANTRY (LEFT HAND)
18SIDEPLATE, PANTRY (RIGHT HAND)
19SLIDE, PANTRY (LEFT HAND)
19SLIDE, PANTRY (RIGHT HAND)
20MAY W10530315
21PLATE, CRISPER (LEFT HAND)
21PLATE, CRISPER (RIGHT HAND)
22PLATE, SIDE
23FRONT, SIDEPLATE (CRISPER)
24TRACK, CENTER
25SLIDE, CRISPER
26SCREW
27MAY W10236512
28MAY W10423560
29MAY W10408747
30MAY W10346771
31MAY W10584148
32COVER, TOP
33MAY W10565997
34MAY W10442183
35MAY 12990204
36SUPPORT, PANTRY COVER (INCLUDES GASKET)
