MFU09M2BW2 02 – DOOR

MFU09M2BW2 02 – DOOR

Written by

in

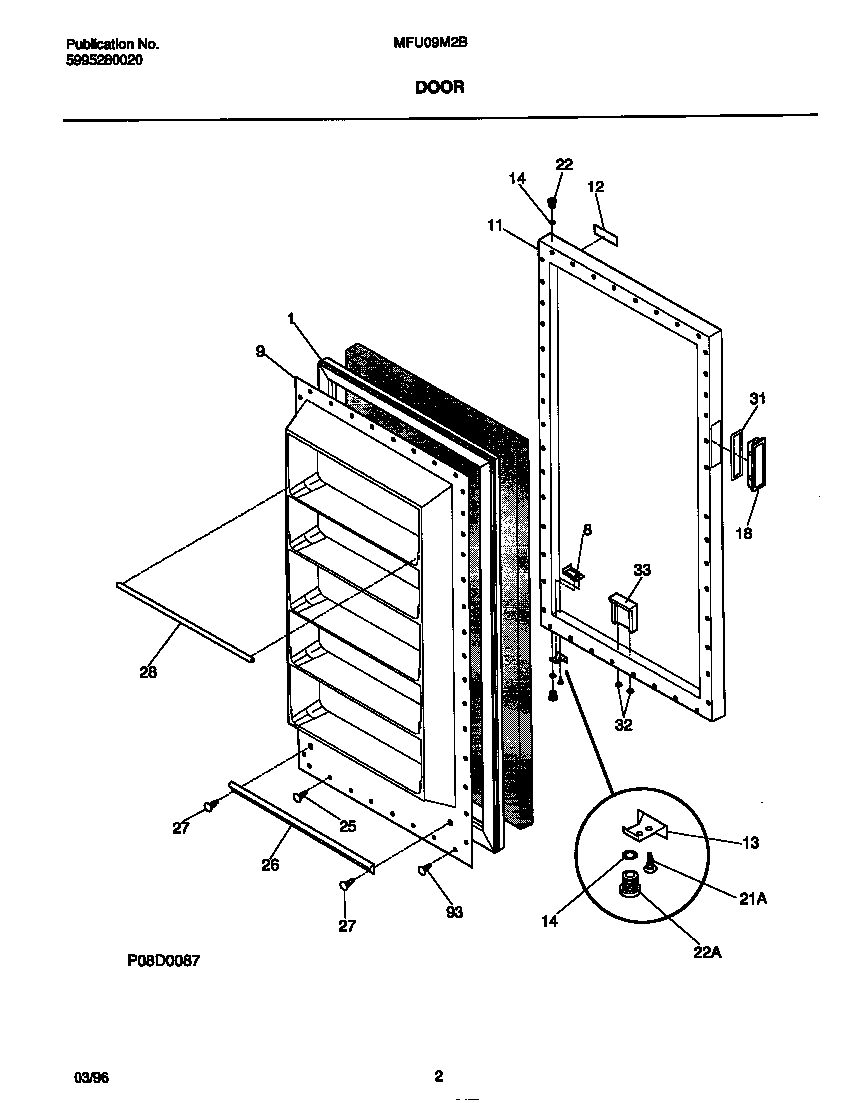

MFU09M2BW2 02 – DOOR

Products

PositionProduct
1WCI 3206236
8WCI 5300091170
9WCI 216048416
11PANEL-OUTER DOOR, WHITE
12FRAME – NAMEPLATE,WHITE
13DOOR STOP
14WCI 5303313518
18WCI 216140200
21Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
22WCI 5303925197
22297006800 Frigidaire Refrigerator Bearing Hinge
25WCI 216022800
26WCI 08009385
275303212828 Frigidaire Refrigerator Primary Clip
28WCI 216102500
31GASKET, WHITE
32Valve,breather ,door base
33WCI 5303212700
93216858001 Frigidaire Refrigerator Screw
