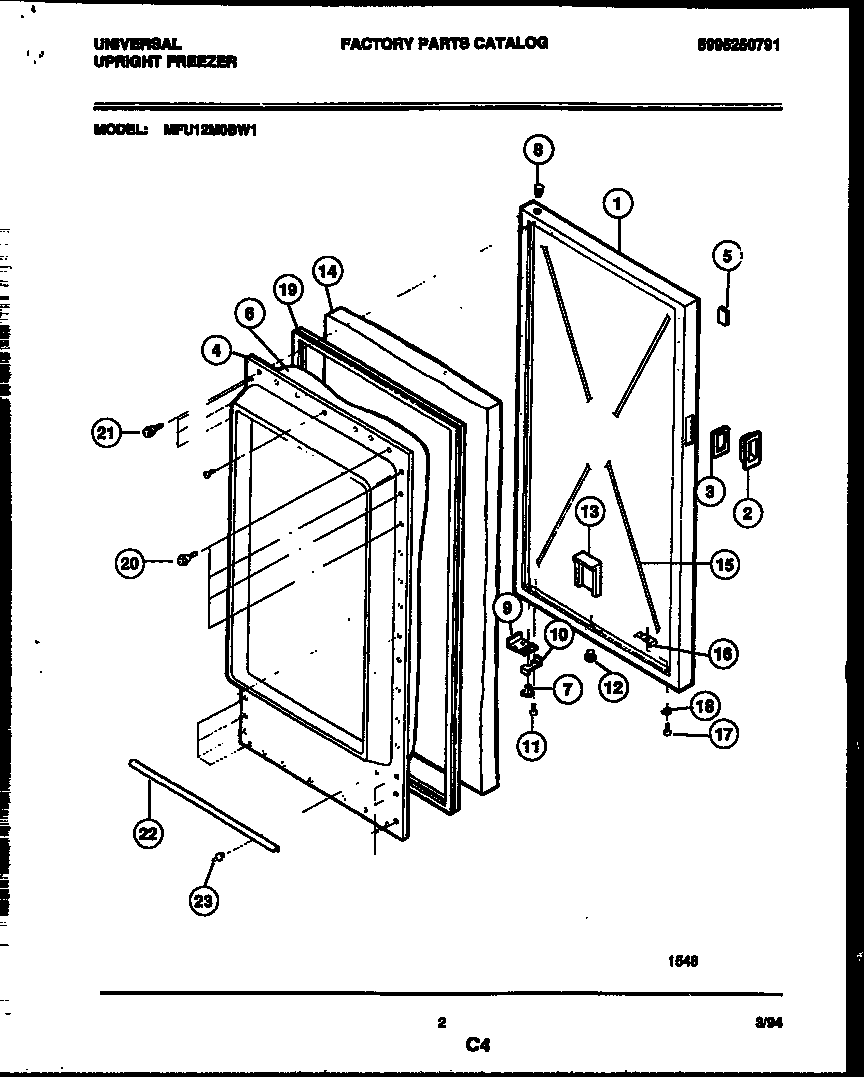

MFU12M0BW1 02 – DOOR PARTS

MFU12M0BW1 02 – DOOR PARTS

Written by

in

MFU12M0BW1 02 – DOOR PARTS

Products

PositionProduct
1WCI 216011303
2WCI 216140200
3GASKET, WHITE
4WCI 216063600
5FRAME – NAMEPLATE,WHITE
6INSULATION (CUT TO SIZE)
7297006800 Frigidaire Refrigerator Bearing Hinge
8WCI 5303925197
9WCI 5300091170
10DOOR STOP
11Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
12Valve,breather ,door base
13WCI 5303212700
14INSULATION-BULK (NON-ILLUSTRATED)
15WCI 08037981
16WCI 05879859
17SCREW
18WASHER, PLAIN, DOOR BRACKET
19GASKET DOOR
20216858001 Frigidaire Refrigerator Screw
21WCI 216022800
22WCI 5303300817
235303212828 Frigidaire Refrigerator Primary Clip
