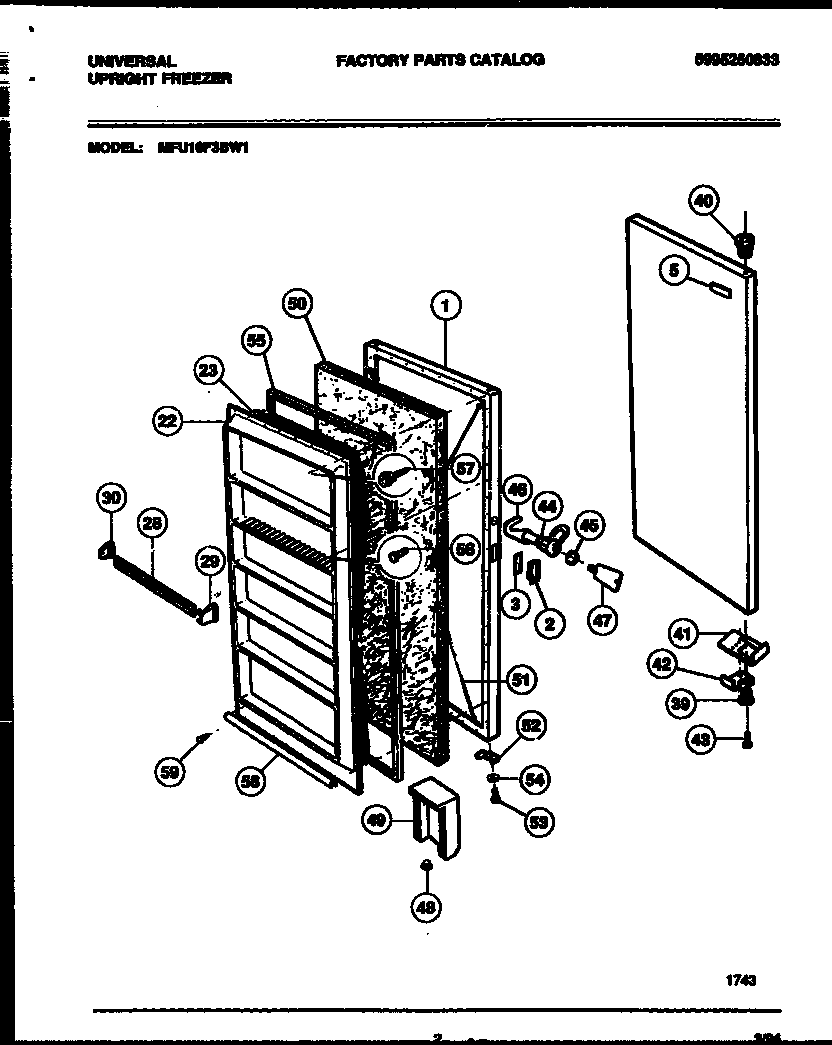

MFU16F3BW1 02 – DOOR PARTS

Products

Position	Product
1	WCI 216011712
2	WCI 216140200
3	GASKET, WHITE
4	FRAME – NAMEPLATE,WHITE
22	PANEL-INNER DOOR, WHITE
23	INSULATION (CUT TO SIZE)
28	WCI 216273800
29	5303925377 Frigidaire Refrigerator Endcap Kit R & L
39	297006800 Frigidaire Refrigerator Bearing Hinge
40	WCI 5303925197
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5303925107
45	Washer-sealing
46	WCI 216013800
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5303212700
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WIRE-DOOR ADJUSTMENT
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
55	WCI 3206255
56	216858001 Frigidaire Refrigerator Screw
57	WCI 216022800
58	WCI 5308016356
59	5303212828 Frigidaire Refrigerator Primary Clip
