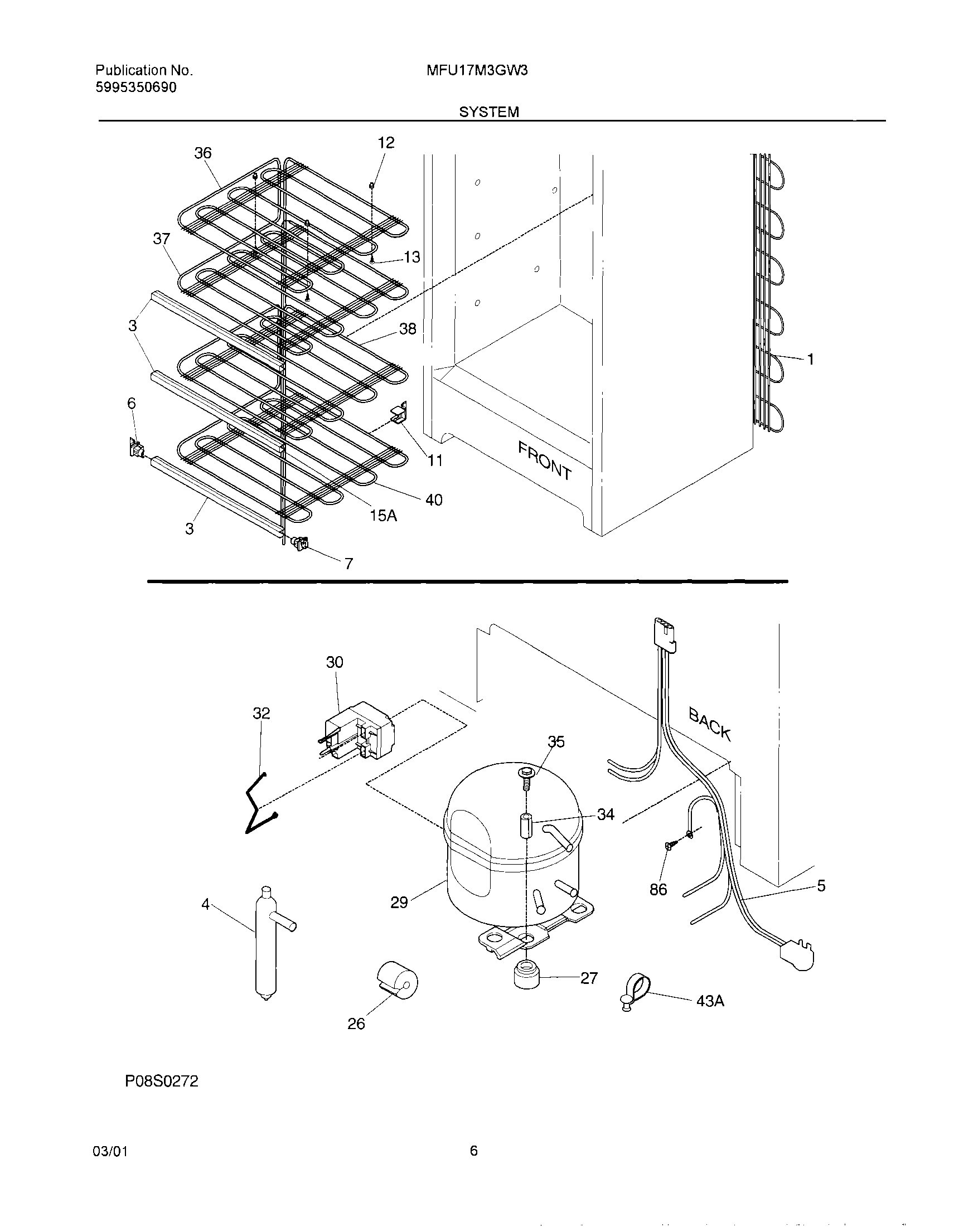

MFU17M3GW3 07 – SYSTEM

MFU17M3GW3 07 – SYSTEM

Written by

in

MFU17M3GW3 07 – SYSTEM

Products

PositionProduct
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
35304509723 Frigidaire Refrigerator Trim
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 216761500
6297001600 Frigidaire Shelf Support
7297001500 Frigidaire Shelf Support
11SUPPORT-REAR SHELF
12GROMMET-SPACER
13WCI 216138900
15WCI 216401400
26WCI 216511900
27216498900 Frigidaire Refrigerator Grommet
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
30WCI 216649308
32WCI 216731900
34SLEEVE-COMPRESSOR
35SCREW, LND HEX SEMS, 1/4-28 UNFX, COMPRESSOR
36297234500 Frigidaire Refrigerator Evaporator
37WCI 216070600
38WCI 216070700
43297315800 Frigidaire Refrigerator Clip
86216036601 Frigidaire Refrigerator Screw
