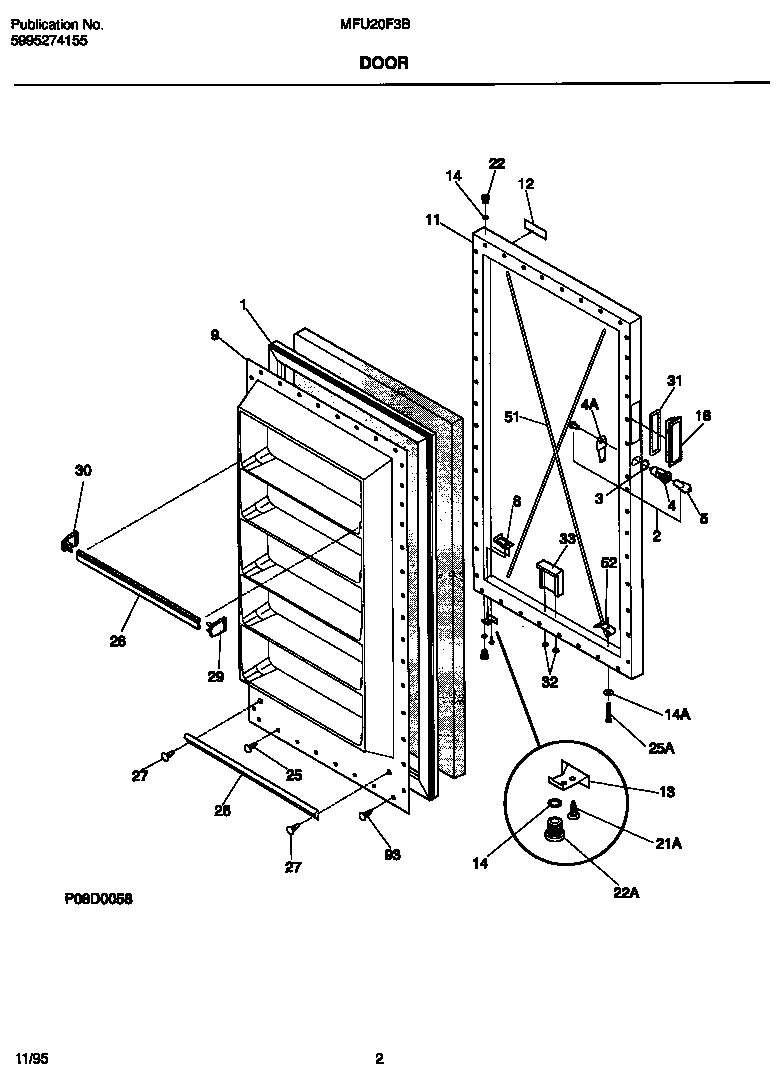

MFU20F3BW3 02 – DOOR

Products

PositionProduct
1GASKET DOOR
2WCI 5303925107
3Washer-sealing
4WCI 5303283905
4WCI 216330800
5297147700 Frigidaire Freezer Plastic Door Key
8WCI 5300091170
9PANEL-INNER DOOR, WHITE
11PANEL-OUTER DOOR, WHITE
12FRAME – NAMEPLATE,WHITE
13DOOR STOP
14WCI 5303313518
14WCI 5303307087
18WCI 216140200
21Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
22297006800 Frigidaire Refrigerator Bearing Hinge
22WCI 5303925197
25WCI 216365400
25WCI 216022800
26WCI 06594681
275303212828 Frigidaire Refrigerator Primary Clip
28WCI 216273800
29216334000 Frigidaire Refrigerator End Cap
30216334100 Frigidaire Refrigerator End Cap
31GASKET, WHITE
32Valve,breather ,door base
33WCI 216084001
51WIRE, DOOR ADJUSTMNT
52WCI 05879859
93216858001 Frigidaire Refrigerator Screw
