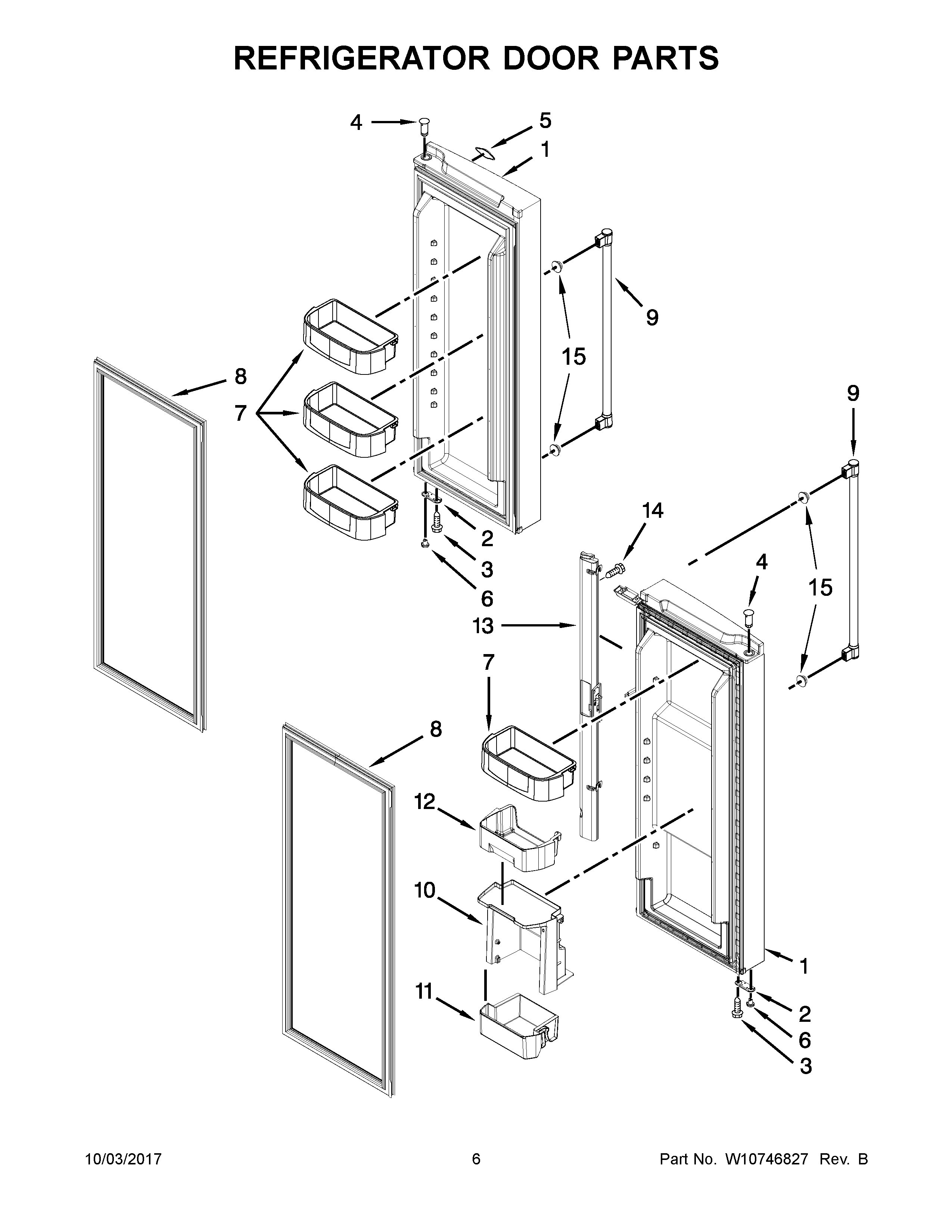

MFW2055DRE00 04 – REFRIGERATOR DOOR PARTSadmin2025-04-26T09:08:13+00:00MFW2055DRE00 04 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1D | DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (STAINLESS)) |
| 1C | DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (BLACK)) |
| 1B | DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (BLACK)) |
| 1A | DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (WHITE)) |
| 1 | DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (WHITE)) |
| 1E | DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (STAINLESS)) |
| 2 | MAY 2189202 |
| 3 | MAY 489276 |
| 4A | MAY W10334042 |
| 4 | THIMBLE (WHITE) |
| 5 | BADGE |
| 6 | CLOSURE, DOOR |
| 7 | BIN, MEDIUM |
| 8A | GASKET, DOOR (BLACK) |
| 8B | GASKET, DOOR (GREY) |
| 8 | GASKET, DOOR (BEIGE) |
| 9 | ASSEMBLY, HANDLE (STAINLESS) |
| 10 | COMPARTMENT, UTILITY |
| 11 | BIN, SHALLOW |
| 12 | BIN, LOW PROFILE |
| 13A | ASSEMBLY, MULLION (BLACK) |
| 13 | ASSEMBLY, MULLION (WHITE) |
| 13B | ASSEMBLY, MULLION (GREY) |
| 14 | Screw (4) |
| 15 | STUD SCREW |
