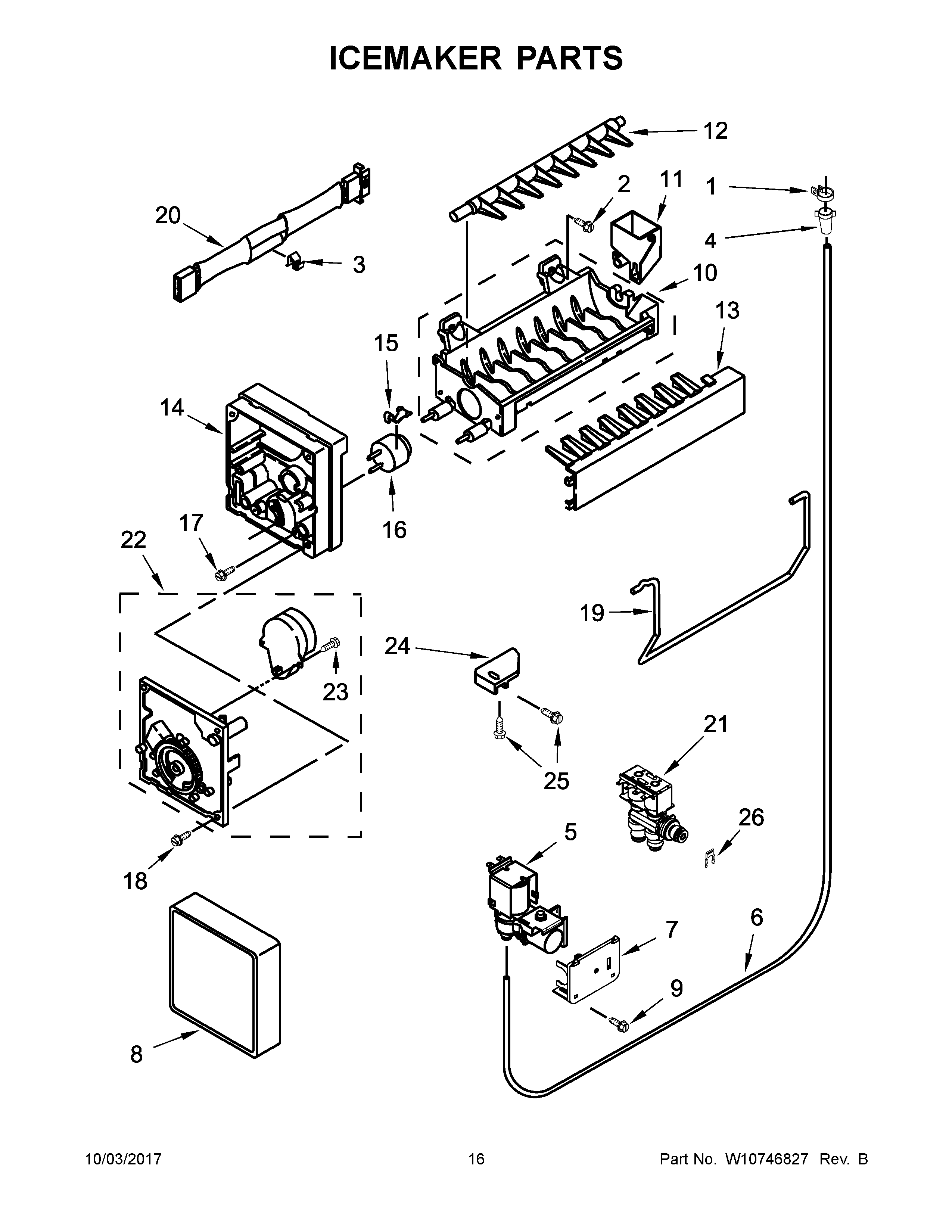

MFW2055DRE00 09 – ICEMAKER PARTS

Products

Position	Product
1	CLAMP, TUBE
2	Screw
3	Clip
4	MAY 2181939
5	VALVE, INLET
6	MAY W10837812
7	BRACKET, WATER VALVE
8	COVER
9	MAY 489442
10	ASSEMBLY, MOLD AND HEATER (ALSO ORDER 542638)
11	MAY W10435665
12	MAY 627843
13	MAY W10699925
14	MAY 2194712
15	MAY 2315522
16	MAY W10290336
17	Screw (2)
18	MAY 489276
19	ARM, SHUT OFF
20	ASSEMBLY, ICE MAKER WIRE
21	ASSEMBLY, DUAL VALVE
22	MODULE ASSEMBLY (INCLUDES ITEM 24)
23	MAY 489136
24	MAY 628320
25	MAY 489478
26	LOCKING RING (1/4)
26A	LOCKING RING (5/16)
100	ASSEMBLY, ICEMAKER
