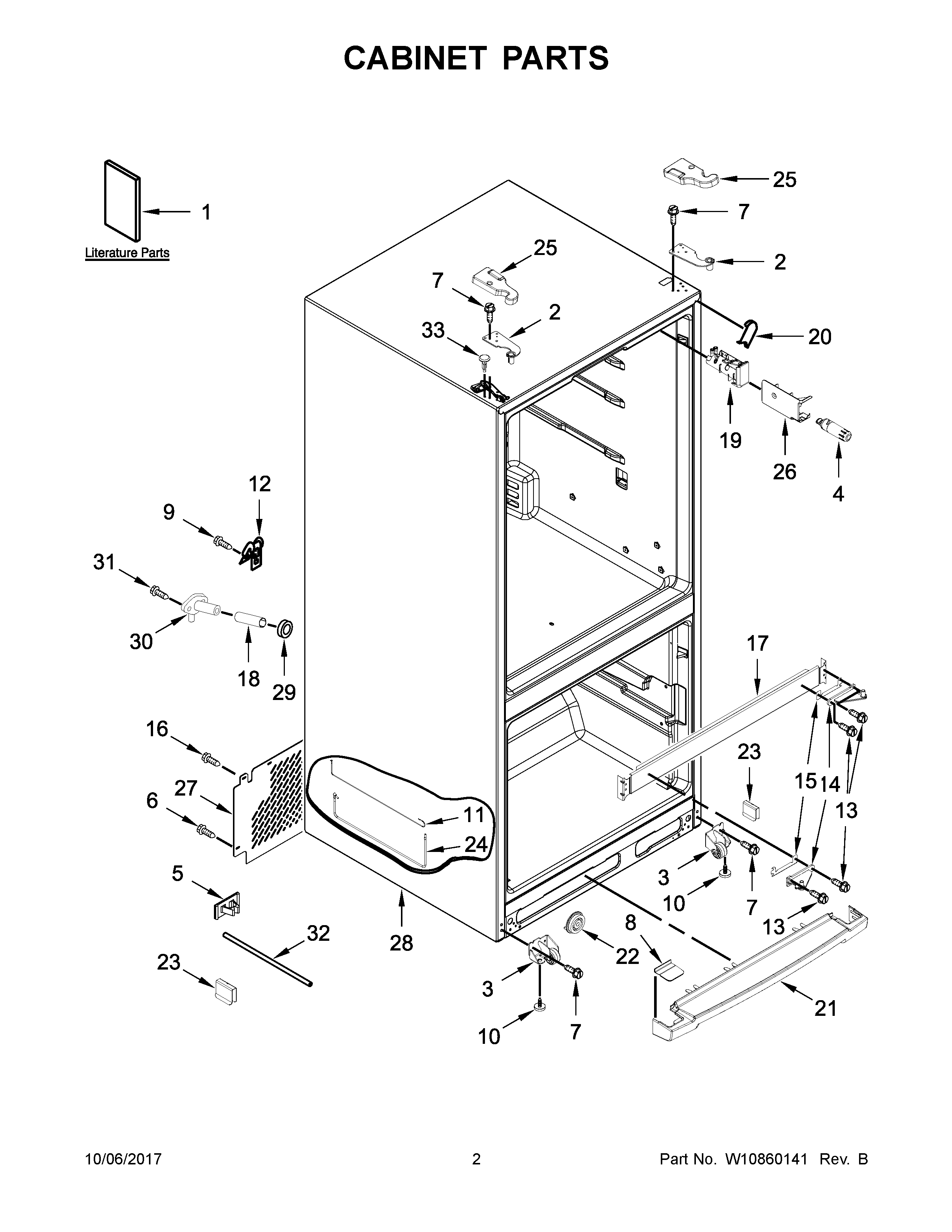

MFW2055DRE01 02 – CABINET PARTS

MFW2055DRE01 02 – CABINET PARTS

Written by

in

MFW2055DRE01 02 – CABINET PARTS

Products

PositionProduct
1SERVICE & WIRING SHEET
1AMAY W11112395
1BUSE AND CARE GUIDE
2AHINGE, TOP (RIGHT HAND)
2HINGE, TOP (LEFT HAND)
3ROLLER, FRONT (LEFT HAND)
3AROLLER, FRONT (RIGHT HAND)
4FILTER, WATER
5CLIP, TUBE
6MAY 2262176
7MAY 489497
8BCOVER, TOE GRILLE (GREY)
8ENDCAP, GRILLE (WHITE)
8AENDCAP, GRILLE (BLACK)
10Brake, Foot
11TUBE, FILTER INLET
12MAY 549193
13SCREW
14AHINGE, CENTER (RIGHT HAND)
14HINGE, CENTER (LEFT HAND)
15SHIM, CENTER HINGE
16MAY 489442
18TUBE, WATER
19HOUSING, WATER FILTER
20BFILLER, CORNER (GREY)
20CORNER FILLER (WHITE)
20ACORNER FILLER (BLACK)
21BGRILLE (GREY)
21GRILLE (INCLUDES ILLUS. 20) (WHITE)
21AGRILLE (INCLUDES ILLUS. 20) (BLACK)
22DRUM, TOE GRILLE
23CLIP, ROLLER
24TUBE, FILTER OUTLET
25BCOVER, HINGE (LEFT HAND (BLACK))
25ECOVER, HINGE (RIGHT HAND (GREY))
25DCOVER, HINGE (LEFT HAND (GREY))
25CCOVER, HINGE (RIGHT HAND (BLACK))
25ACOVER, HINGE (RIGHT HAND (WHITE))
25COVER, HINGE (LEFT HAND (WHITE))
26COVER, WATER FILTER
27COVER, UNIT
28LINER (NOT A SERVICEABLE PART)
29Seal
30FITTING, WATER TUBE
31Screw
32TUBE, CABINET WATER
33MAY W10520304
33AHOLE PLUG (BLACK)
33BHOLE PLUG (GREY)
