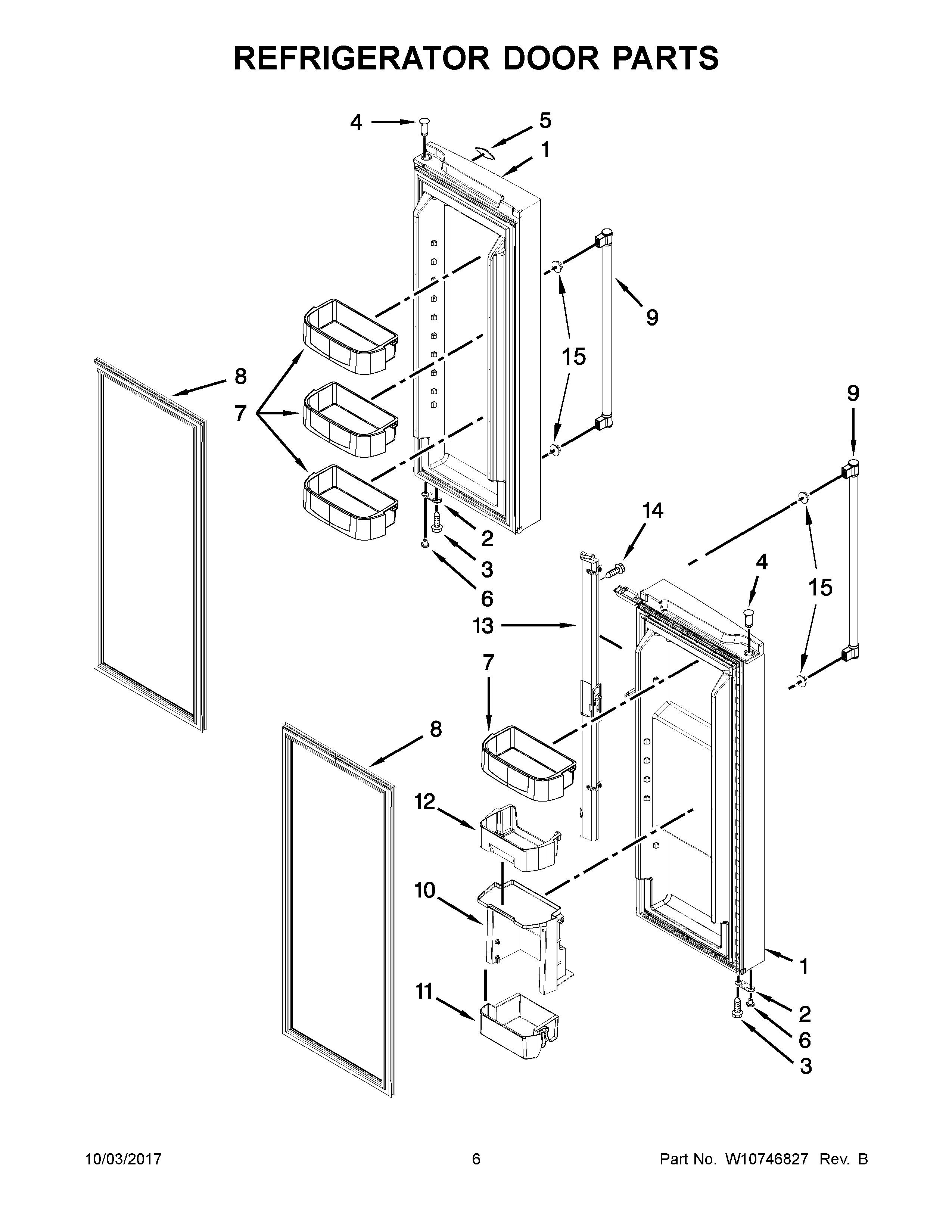

MFW2055DRH00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DDOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (STAINLESS))
1CDOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (BLACK))
1BDOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (BLACK))
1ADOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (WHITE))
1DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (WHITE))
1EDOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (STAINLESS))
2MAY 2189202
3MAY 489276
4AMAY W10334042
4THIMBLE (WHITE)
5BADGE
6CLOSURE, DOOR
7BIN, MEDIUM
8AGASKET, DOOR (BLACK)
8BGASKET, DOOR (GREY)
8GASKET, DOOR (BEIGE)
9ASSEMBLY, HANDLE (STAINLESS)
10COMPARTMENT, UTILITY
11BIN, SHALLOW
12BIN, LOW PROFILE
13AASSEMBLY, MULLION (BLACK)
13ASSEMBLY, MULLION (WHITE)
13BASSEMBLY, MULLION (GREY)
14Screw (4)
15STUD SCREW
