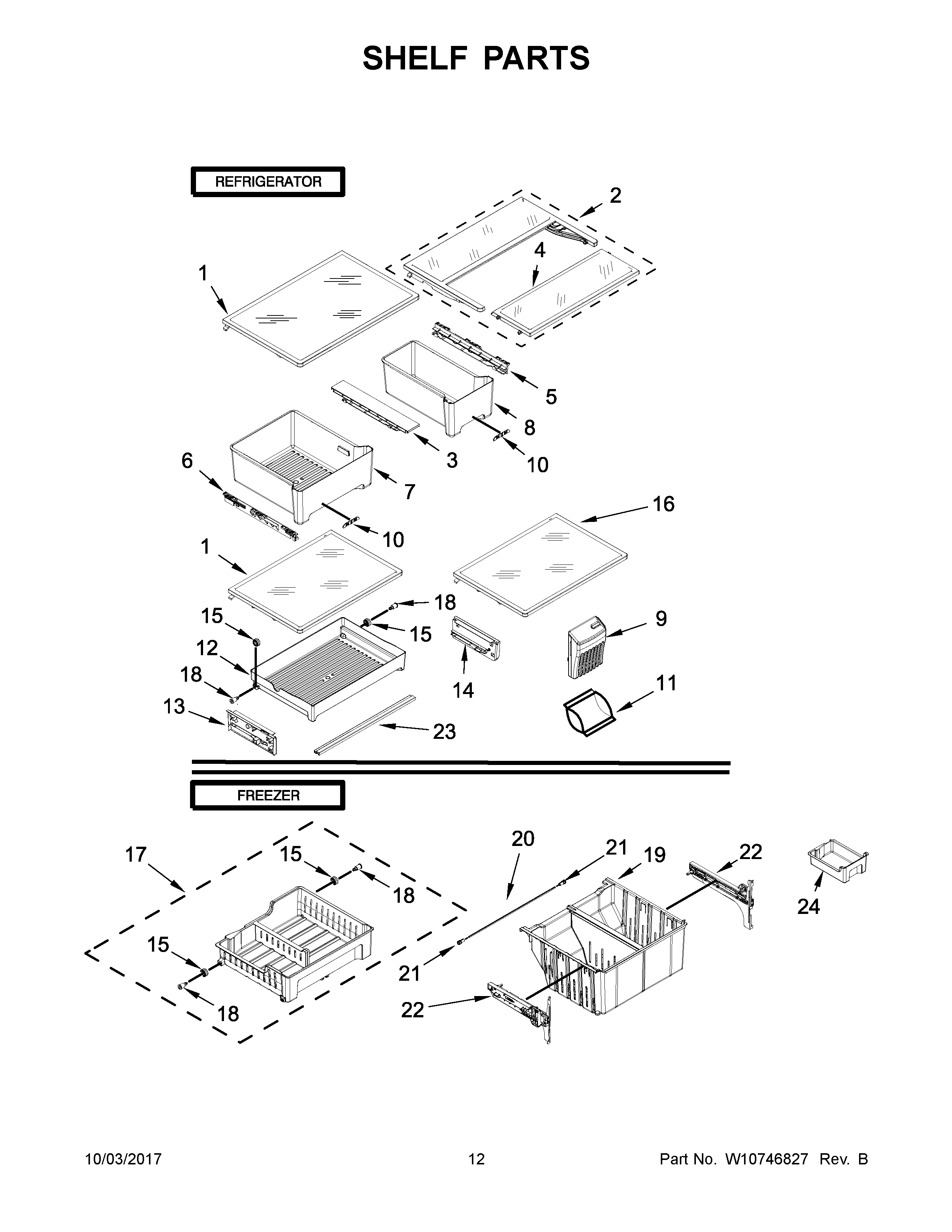

MFW2055DRH00 07 – SHELF PARTS

Products

Position	Product
1	ASSEMBLY, FULL SHELF (30")
2	FLIP DOWN SHELF ASSEMBLY
3	RAIL, TRACK (CENTER)
4	SHELF, FLIP DOWN
5	RAIL, TRACK (RIGHT HAND)
6	RAIL, TRACK (LEFT HAND)
7	PAN, CRISPER (16")
8	PAN, CRISPER (8")
9	MAY W10408748
10	CONTROL, HUMIDITY
11	MAY W10346771
12	ASSEMBLY, PANTRY DELI PAN
13	RAIL, PANTRY (LEFT HAND)
14	RAIL, PANTRY (RIGHT HAND)
15	ROLLER, PAN
16	GLASS, PANTRY COVER
17	BIN, UPPER FREEZER
18	AXLE, ROLLER
19	BASKET, LOWER FREEZER
20	SHAFT, RACK
21	COLLAR, GEAR
22	ADAPTOR, FREEZER (LEFT HAND)
22A	ADAPTOR, FREEZER (RIGHT HAND)
23	ASSEMBLY, PANTRY COVER SUPPORT
24	PAN, ICE
