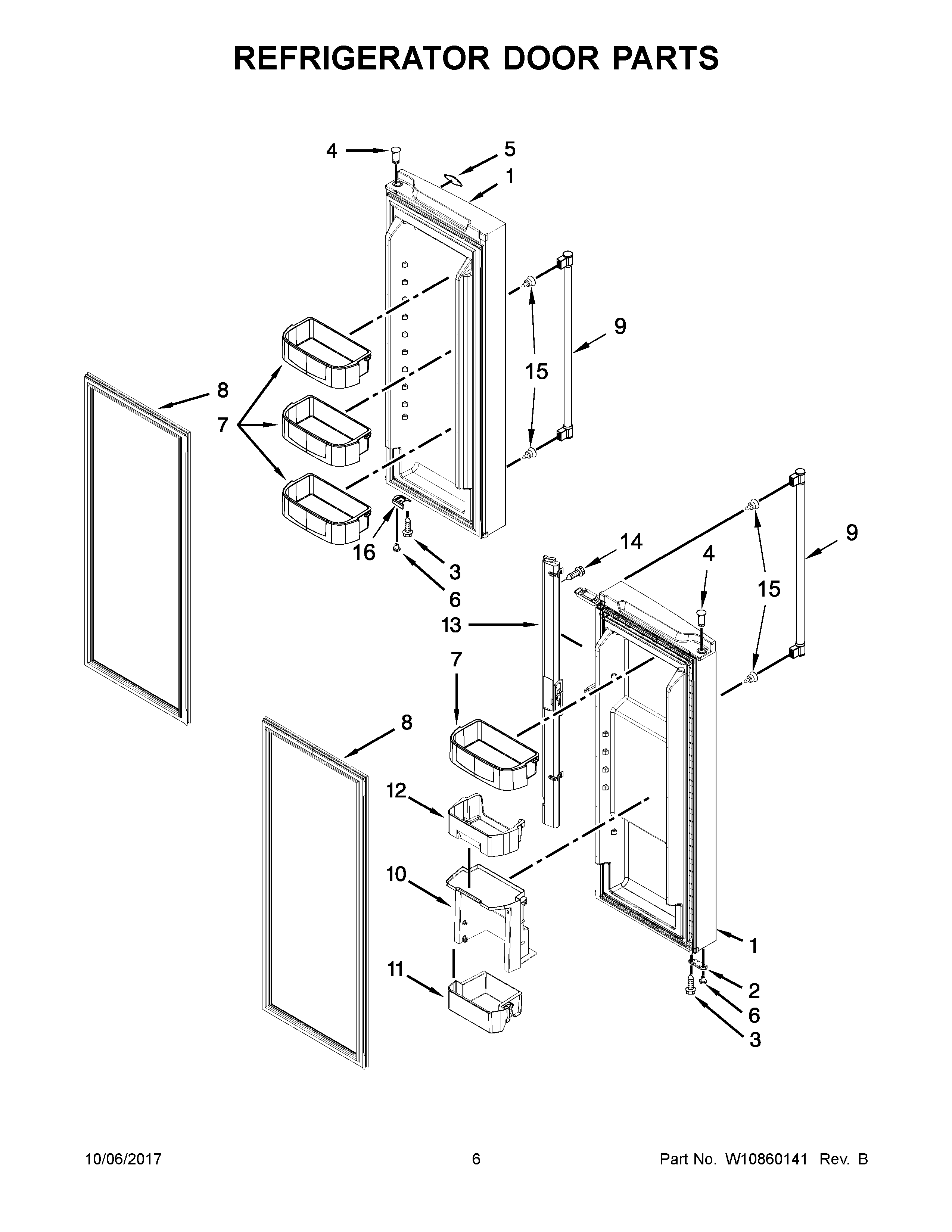

MFW2055DRH01 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1EDOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (STAINLESS))
1DDOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (STAINLESS))
1CDOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (BLACK))
1BDOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (BLACK))
1ADOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (WHITE))
1DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (WHITE))
2MAY 2189202
3MAY 489276
4THIMBLE (WHITE)
4AMAY W10334042
5BADGE
6CLOSURE, DOOR
7BIN, MEDIUM
8GASKET, DOOR (BEIGE)
8AGASKET, DOOR (BLACK)
8BGASKET, DOOR (GREY)
9ASSEMBLY, HANDLE (STAINLESS)
10COMPARTMENT, UTILITY
11BIN, SHALLOW
12BIN, LOW PROFILE
13BASSEMBLY, MULLION (GREY)
13ASSEMBLY, MULLION (WHITE)
13AASSEMBLY, MULLION (BLACK)
14Screw (4)
15STUD SCREW
16BRACKET, DOOR STOP
