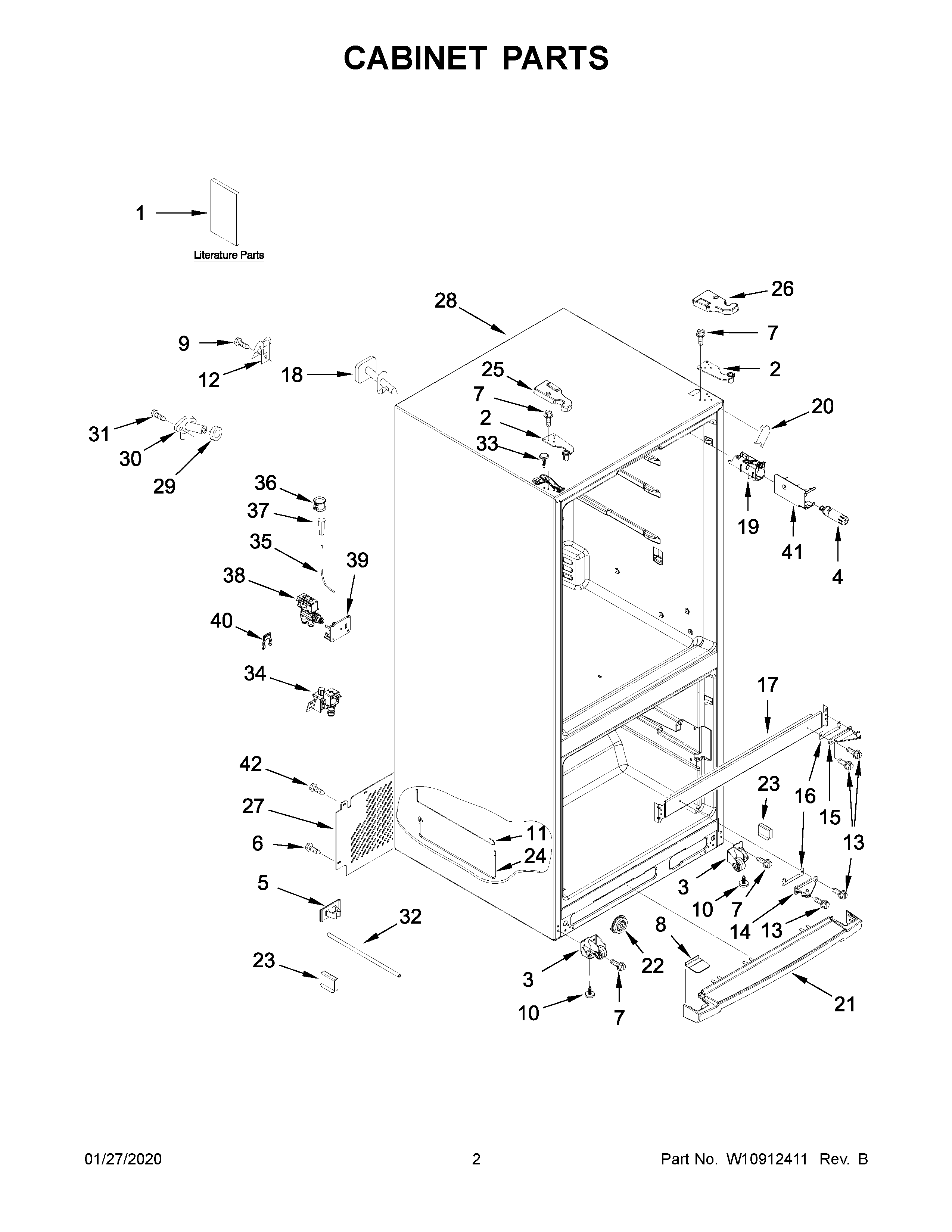

MFW2055FRH00 02 – CABINET PARTS

MFW2055FRH00 02 – CABINET PARTS

Written by

in

MFW2055FRH00 02 – CABINET PARTS

Products

PositionProduct
1SERVICE & WIRING SHEET
1BUSE AND CARE GUIDE
1AMAY W11112387
1CICEMAKER SERVICE SHEET
2AHINGE, TOP (RIGHT HAND)
2HINGE, TOP (LEFT HAND)
3ROLLER, FRONT (LEFT HAND)
3AROLLER, FRONT (RIGHT HAND)
4FILTER, WATER
5CLIP, TUBE
6MAY 2262176
7MAY 489497
8ACOVER, TOE GRILLE (GREY)
8ENDCAP, GRILLE (WHITE)
10Brake, Foot
11TUBE, FILTER INLET
12MAY 549193
13SCREW
14HINGE, CENTER (LEFT HAND)
15HINGE, CENTER (RIGHT HAND)
16SHIM, CENTER HINGE
19HOUSING, WATER FILTER
20FILLER, WRAPPER (WHITE)
20AFILLER, CORNER (GREY)
21GRILLE (INCLUDES ILLUS. 20) (WHITE)
21AGRILLE (GREY)
22DRUM, TOE GRILLE
23CLIP, ROLLER
24TUBE, FILTER OUTLET
25ACOVER, HINGE (LEFT HAND (GREY))
25COVER, HINGE (LEFT HAND (WHITE))
26ACOVER, HINGE (RIGHT HAND (GREY))
26COVER, HINGE (RIGHT HAND (WHITE))
27COVER, UNIT
28LINER (NOT A SERVICEABLE PART)
29Seal
30MAY W11249272
31Screw
32TUBE, CABINET WATER
33MAY W10520304
33AHOLE PLUG (GREY)
34VALVE, INLET
35TUBE, WATER
36CLAMP, TUBE
37MAY 2181939
38ASSEMBLY, DUAL VALVE
39BRACKET, WATER VALVE
40ALOCKING RING (1/4)
40LOCKING RING (5/16)
41COVER, WATER FILTER
42MAY 489442
