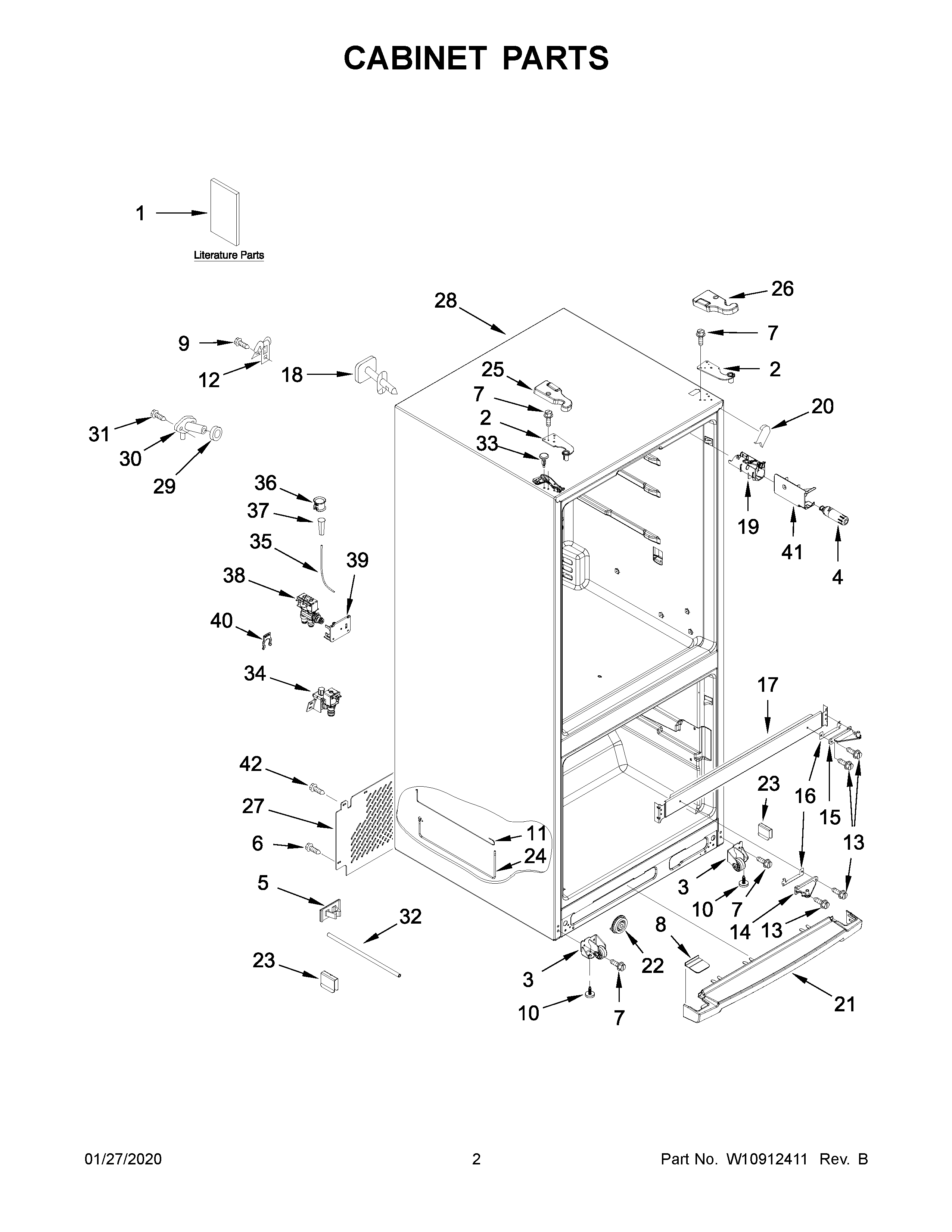

MFW2055FRZ00 02 – CABINET PARTSadmin2025-04-26T09:07:39+00:00MFW2055FRZ00 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | SERVICE & WIRING SHEET |
| 1B | USE AND CARE GUIDE |
| 1A | MAY W11112387 |
| 1C | ICEMAKER SERVICE SHEET |
| 2A | HINGE, TOP (RIGHT HAND) |
| 2 | HINGE, TOP (LEFT HAND) |
| 3 | ROLLER, FRONT (LEFT HAND) |
| 3A | ROLLER, FRONT (RIGHT HAND) |
| 4 | FILTER, WATER |
| 5 | CLIP, TUBE |
| 6 | MAY 2262176 |
| 7 | MAY 489497 |
| 8A | COVER, TOE GRILLE (GREY) |
| 8 | ENDCAP, GRILLE (WHITE) |
| 10 | Brake, Foot |
| 11 | TUBE, FILTER INLET |
| 12 | MAY 549193 |
| 13 | SCREW |
| 14 | HINGE, CENTER (LEFT HAND) |
| 15 | HINGE, CENTER (RIGHT HAND) |
| 16 | SHIM, CENTER HINGE |
| 19 | HOUSING, WATER FILTER |
| 20 | FILLER, WRAPPER (WHITE) |
| 20A | FILLER, CORNER (GREY) |
| 21 | GRILLE (INCLUDES ILLUS. 20) (WHITE) |
| 21A | GRILLE (GREY) |
| 22 | DRUM, TOE GRILLE |
| 23 | CLIP, ROLLER |
| 24 | TUBE, FILTER OUTLET |
| 25A | COVER, HINGE (LEFT HAND (GREY)) |
| 25 | COVER, HINGE (LEFT HAND (WHITE)) |
| 26A | COVER, HINGE (RIGHT HAND (GREY)) |
| 26 | COVER, HINGE (RIGHT HAND (WHITE)) |
| 27 | COVER, UNIT |
| 28 | LINER (NOT A SERVICEABLE PART) |
| 29 | Seal |
| 30 | MAY W11249272 |
| 31 | Screw |
| 32 | TUBE, CABINET WATER |
| 33 | MAY W10520304 |
| 33A | HOLE PLUG (GREY) |
| 34 | VALVE, INLET |
| 35 | TUBE, WATER |
| 36 | CLAMP, TUBE |
| 37 | MAY 2181939 |
| 38 | ASSEMBLY, DUAL VALVE |
| 39 | BRACKET, WATER VALVE |
| 40A | LOCKING RING (1/4) |
| 40 | LOCKING RING (5/16) |
| 41 | COVER, WATER FILTER |
| 42 | MAY 489442 |
