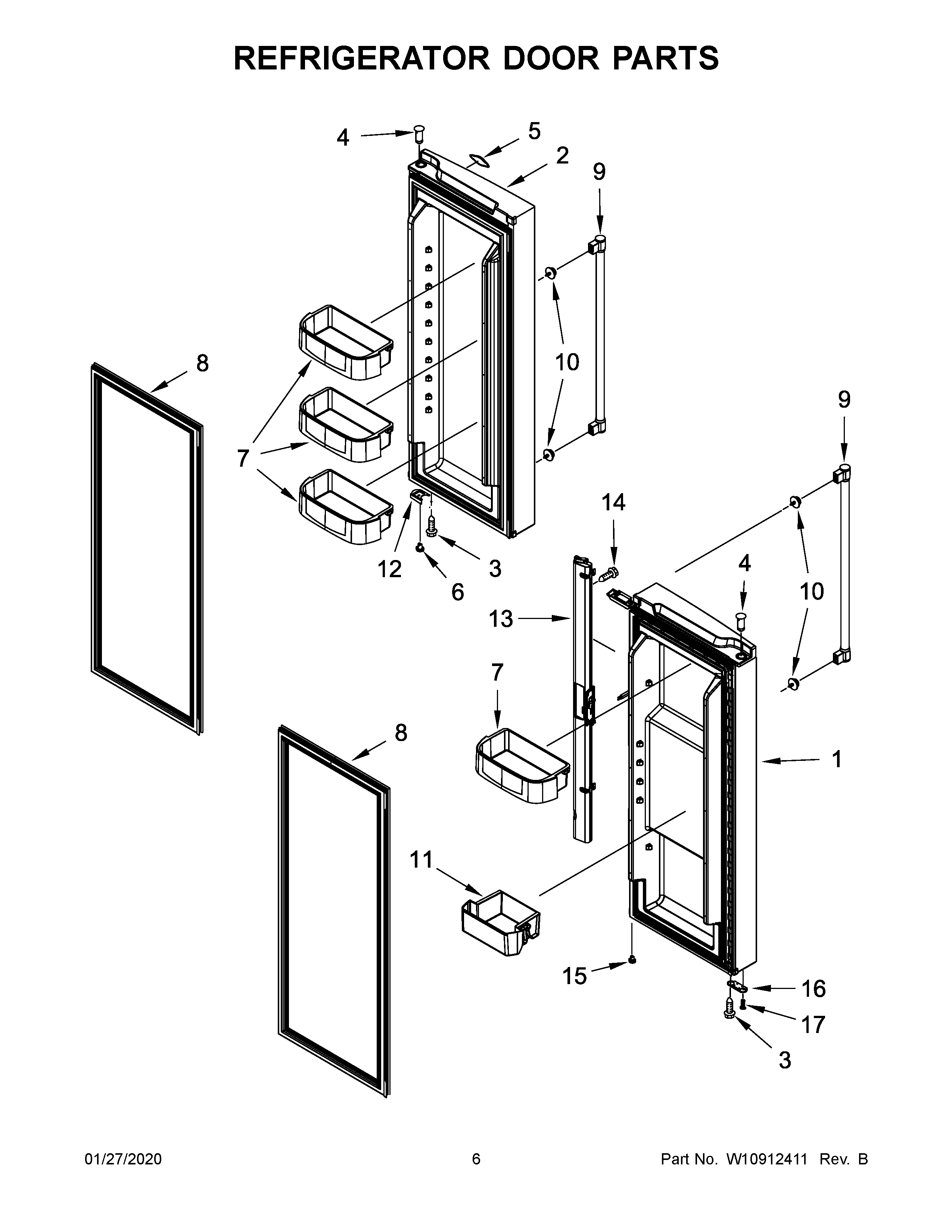

MFW2055FRZ00 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1ADOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) LEFT HAND (STAINLESS)
1DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (WHITE))
2ADOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) RIGHT HAND (STAINLESS)
2DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (WHITE))
3MAY 489276
4THIMBLE (WHITE)
5BADGE
6CLOSURE, DOOR
7BIN, MEDIUM
8GASKET, DOOR (BEIGE)
8AGASKET, DOOR (GREY)
9ASSEMBLY, HANDLE (STAINLESS)
10STUD SCREW
11BIN, SHALLOW
12BRACKET, DOOR STOP
13AASSEMBLY, MULLION (GREY)
13ASSEMBLY, MULLION (WHITE)
14Screw (4)
15BUSHING, DOOR (BOTTOM RIGHT) (BLACK)
16MAY 2189202
17MAY W10334042
