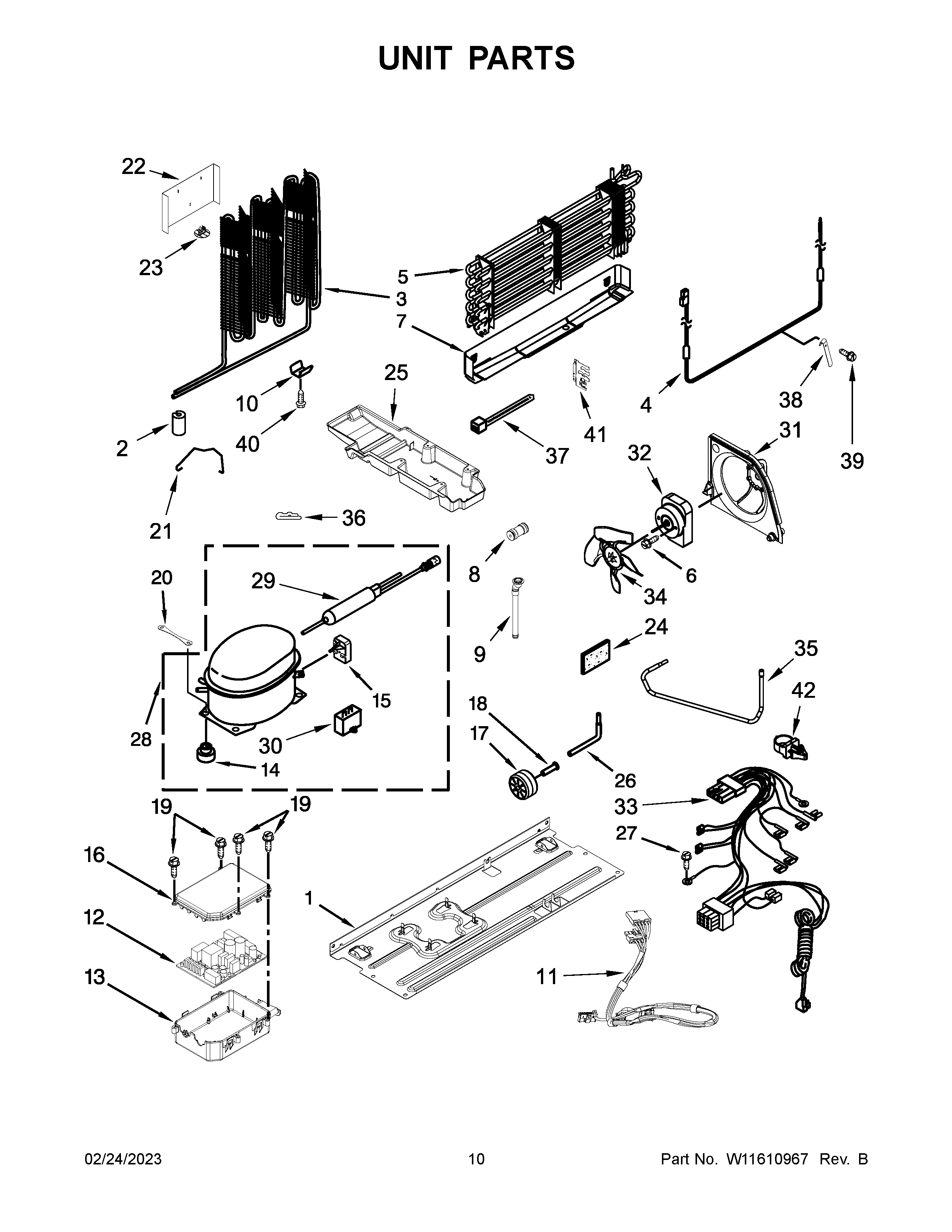

MFW2055FRZ02 06 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	W10300116 Whirlpool Refrigerator Base Plate
2	W10852725 Whirlpool Refrigerator Grommet
3	WPW10342567 Whirlpool Refrigerator Condenser
4	W11562215 Whirlpool Refrigerator Heater
5	W11611030 Whirlpool Evaporator Assembly
5A	W11504415 Whirlpool Refrigerator Coupler
5B	W11504450 Whirlpool Refrigerator Coupler
6	W11501418 Whirlpool Refrigerator Screw
7	W11562216 Whirlpool Shield
8	WP2300868 Whirlpool Refrigerator Fitting
9	W11284510 Whirlpool Refrigerator Drain Tube
10	W10683556 Whirlpool Refrigerator Clip
11	WPW10424230 Whirlpool Refrigerator Wire Harness
12	W11035836-includeCORE Whirlpool W11035836 Refrigerator Electronic Control Board + Core
13	2323186 Whirlpool Refrigerator Housing
14	W11678963 Whirlpool Grommet
15	W11547180 Whirlpool Refrigerator Start Device
16	W10313215 Whirlpool Refrigerator Box Cover
17	WPW10475495 Whirlpool Roller Assembly
18	W11594405 Whirlpool Axle
19	WPW10171469 Whirlpool Refrigerator Screw
20	W10236396 Whirlpool Refrigerator Strap
21	W11577799 Whirlpool Refrigerator Clip
22	W10349514 Whirlpool Refrigerator Air Baffle
23	W10815861 Whirlpool Refrigerator Clip
24	W11553819 Whirlpool Refrigerator Insulation
25	W10890667 Whirlpool Refrigerator Drip Pan
26	W11661102 Whirlpool Tube
27	WP489128 Whirlpool Refrigerator Screw
28C	W11506638 Whirlpool Refrigerator Coupler
28B	COUPLER
28	COMPRESSOR
28A	W11504432 Whirlpool Refrigerator Coupler
29A	W11504445 Whirlpool Refrigerator Coupler
29B	W11504448 Whirlpool Refrigerator Coupler
29	W11109499 Whirlpool Refrigerator Tube
30	WPW10662129 Whirlpool Refrigerator Run Capacitor
31	W11605794 Whirlpool Air Baffle
32	W11563806 Whirlpool Refrigerator Condenser Motor
33	W10633276 Whirlpool Refrigerator Wire Harness
34	W11193484 Whirlpool Fan Blade
35	W11741026 Whirlpool Tube Assembly
36	W11501419 Whirlpool Refrigerator Clip
37	WPW10339879 Whirlpool Wire Tie
38	W11611126 Whirlpool Heat Probe
39	WP489478 Whirlpool Refrigerator Screw
40	W11544659 Whirlpool Refrigerator Screw
41	WPL W11466555
42	2219077 Whirlpool Refrigerator Clip
