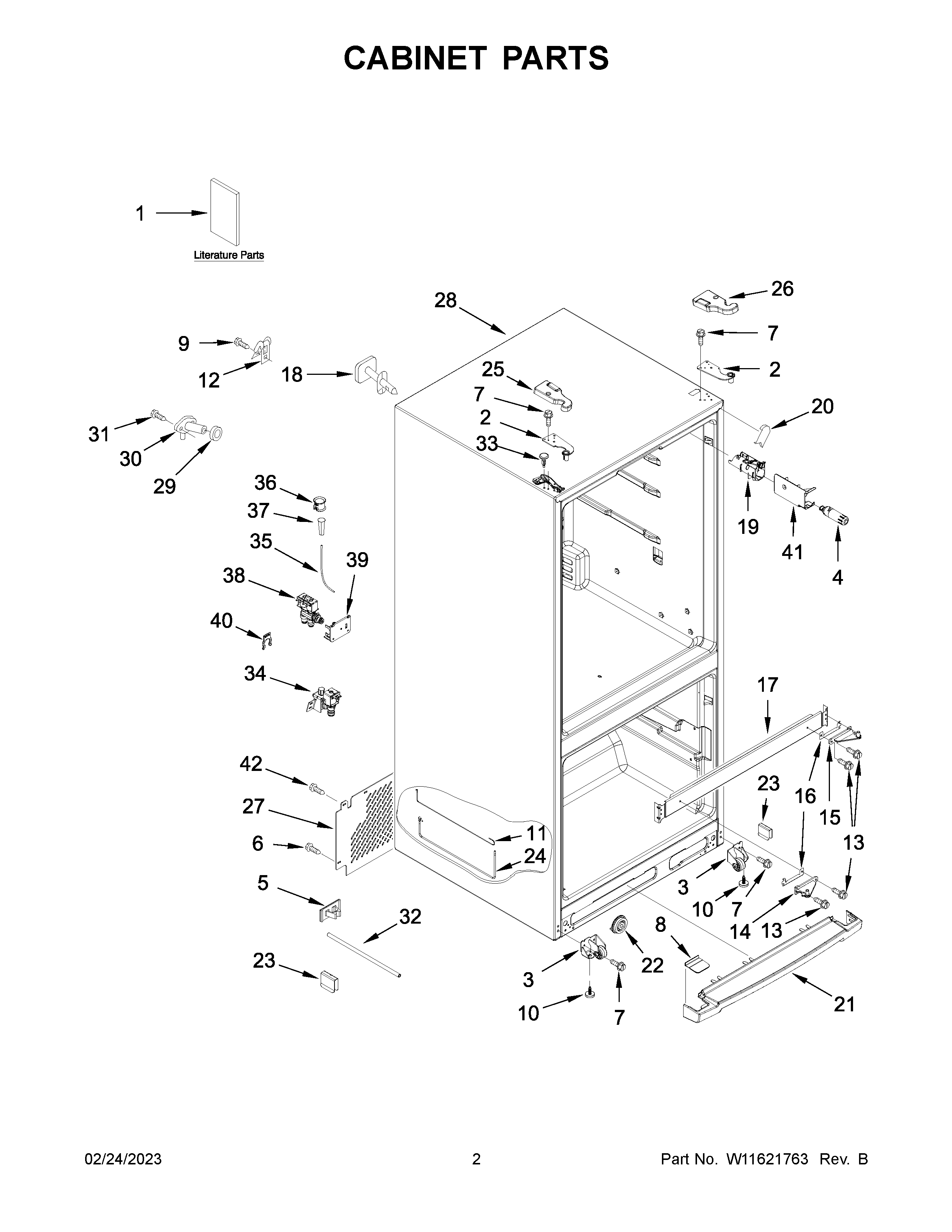

MFW2055FRZ03 02 – CABINET PARTS

MFW2055FRZ03 02 – CABINET PARTS

Written by

in

MFW2055FRZ03 02 – CABINET PARTS

Products

Position	Product
1C	Modular Icemaker Service Sheet
1	TECH SHEET
1A	ENERGY GUIDE
1B	USE AND CARE GUIDE
2A	W11573371 Whirlpool Refrigerator Door Hinge
2	W10546298 Whirlpool Refrigerator Door Hinge
3	WPW10359256 Whirlpool Cabinet Roller
3A	WPW10359255 Whirlpool Cabinet Wheel
4	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
5	W11501419 Whirlpool Refrigerator Clip
6	WP488729 Whirlpool Refrigerator Door Screw
7	WP489497 Whirlpool Screw
8	WPW10353932 Whirlpool Refrigerator Grille Endcap
10	WPW10141622 Whirlpool Leveler
11	W11195038 Whirlpool Refrigerator Water Tube
12	W11234470 Whirlpool Refrigerator Clamp
13	W10336489 Whirlpool Refrigerator Screw
14	W10770878 Whirlpool Refrigerator Door Hinge
15	W11417064 Whirlpool Refrigerator Door Hinge
16	WPW10450363 Whirlpool Refrigerator Shim
19	W10844267 Whirlpool Refrigerator Housing
20	W11219642 Whirlpool Refrigerator Filler
21	WPW10353935 Whirlpool Refrigerator Grille
22	W10331226 Whirlpool Refrigerator Clip
23	WP2174706 Whirlpool Refrigerator Pin Hitch
24	W10801011 Whirlpool Refrigerator Reservoir
25	W10465768 Whirlpool Hinge Cover
26	W10465767 Whirlpool Refrigerator Cover
27	W11700600 Whirlpool Unit Cover
28	CABINET (NOT A SERVICEABLE PART)
29	WP1106508 Whirlpool Refrigerator Gasket
30	W11292468 Whirlpool Refrigerator Fitting
31	WP488163 Whirlpool Refrigerator Screw
32	WPW10463317 Whirlpool Refrigerator Water Tube
33	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
34	VALVE-INLT REFR
35	WPW10496649 Whirlpool Refrigerator Water Tube
36	W10861184 Whirlpool Refrigerator Clamp
37	4387491 Whirlpool Refrigerator Insert
38	WPW10279866 Whirlpool Refrigerator Inlet Valve
39	W10847867 Whirlpool Refrigerator Bracket
40	W11678575 Whirlpool Ring
40A	W11676611 Whirlpool Ring
41	WPW10306392 Whirlpool Refrigerator Filter Cover
42	WP489442 Whirlpool Refrigerator Screw
