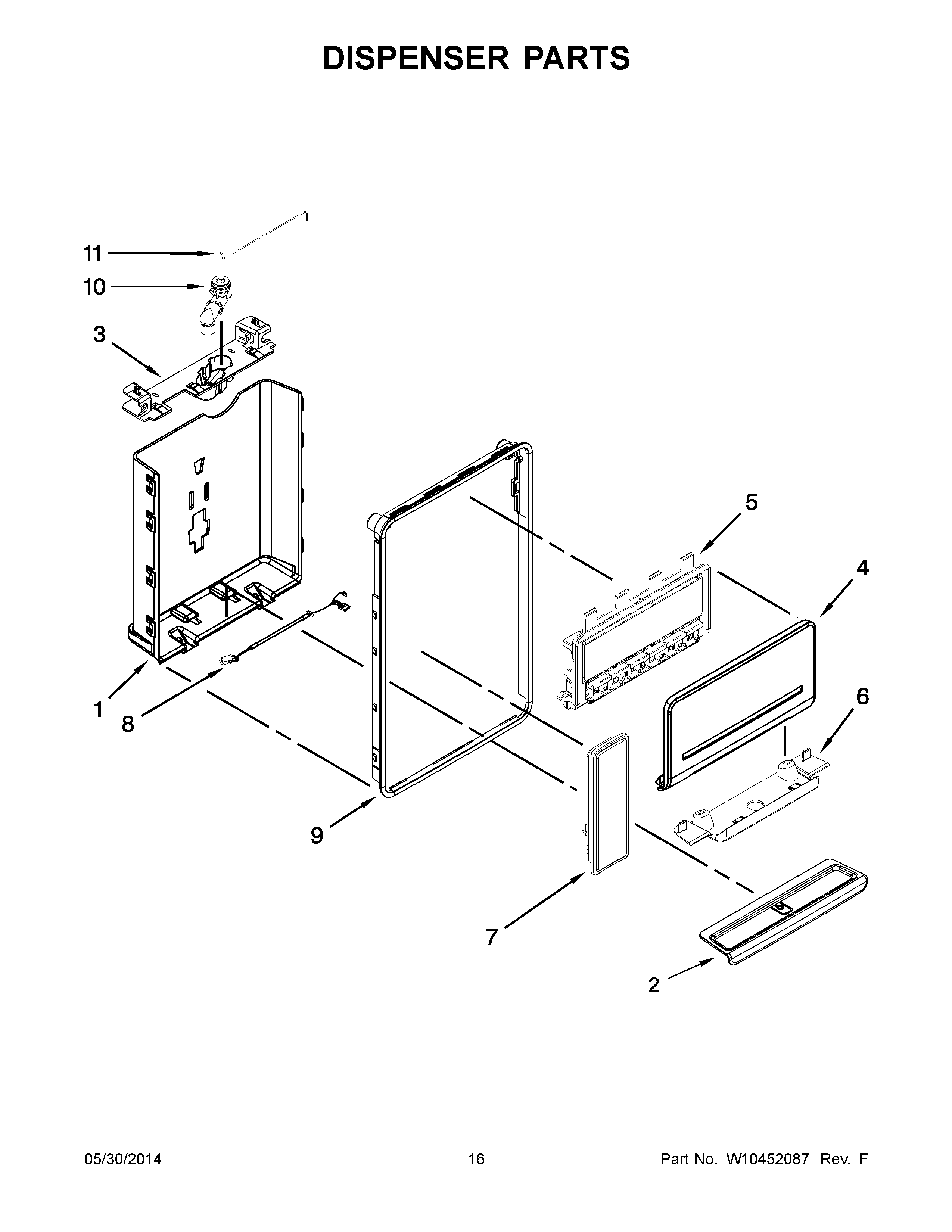

MFW2055YEB00 09 – DISPENSER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	TRAY, DRIP (GREY)
2	TRAY, DRIP (BLACK)
2	TRAY, DRIP (WHITE)
3	SEPARATOR
4	FASCIA (BLACK)
4	FASCIA (SILVER MIRROR)
5	MAY W10464483
6	COVER, SEPARATOR (CHROMIUM FROST)
7	ASSEMBLY, PAD (GREY)
7	ASSEMBLY, PAD (WHITE)
7	ASSEMBLY, PAD (BLACK)
8	MAY W10465298
9	RING, TRIM
10	ASSEMBLY, SPIGOT
11	TUBE, WATER DISPENSER
