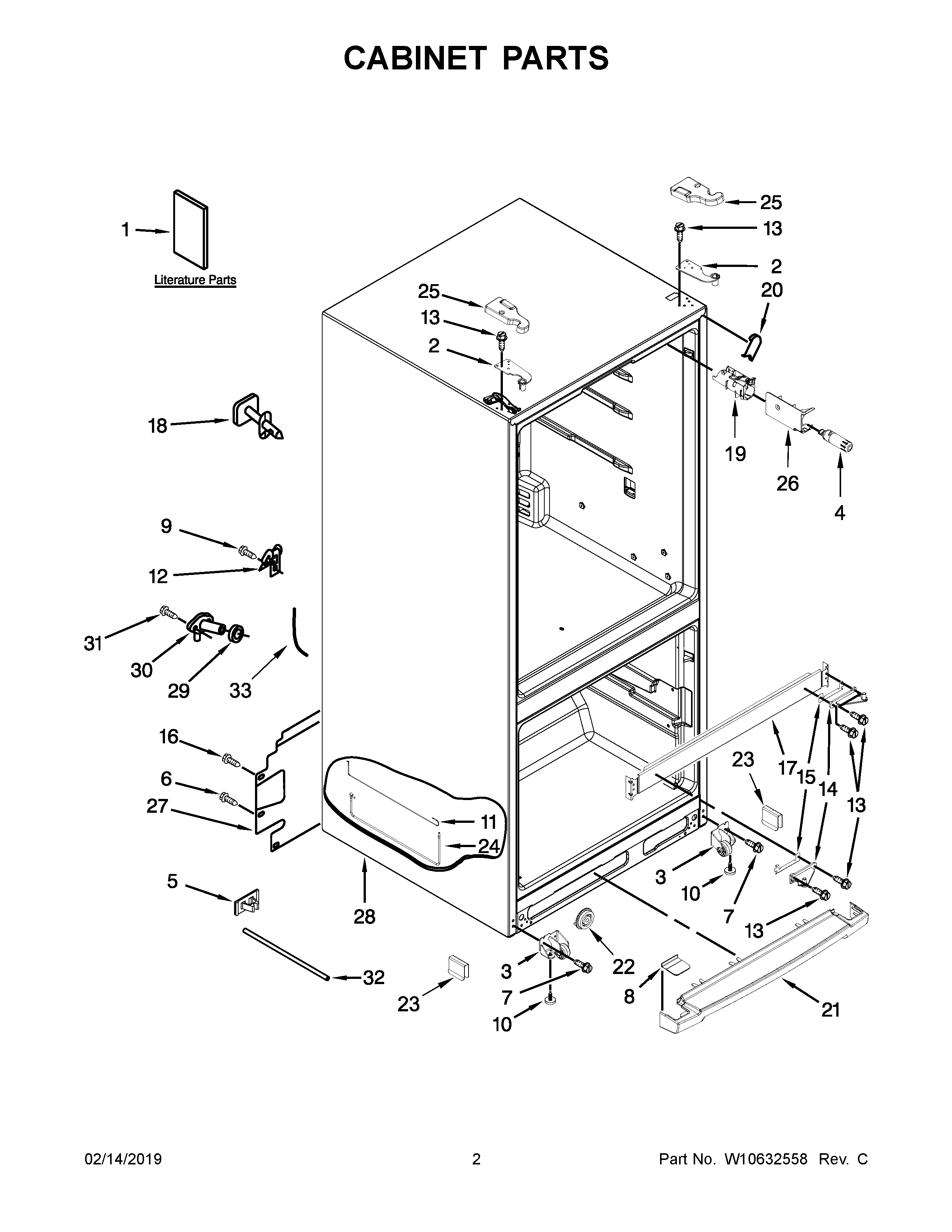

MFW2055YEB01 02 – CABINET PARTS

MFW2055YEB01 02 – CABINET PARTS

Written by

in

MFW2055YEB01 02 – CABINET PARTS

Products

PositionProduct
1BUSE AND CARE GUIDE
1AMAY W10458271
1CICEMAKER SERVICE SHEET
1SERVICE AND WIRING SHEET
2HINGE, TOP (LEFT HAND)
2AHINGE, TOP (RIGHT HAND)
3ROLLER, FRONT (LEFT HAND)
3AROLLER, FRONT (RIGHT HAND)
4FILTER, WATER
5CLIP, TUBE
6MAY 2262176
8ENDCAP, GRILLE (WHITE)
8BCOVER, TOE GRILLE (GREY)
8AENDCAP, GRILLE (BLACK)
10Brake, Foot
11TUBE, FILTER INLET
12MAY 549193
13MAY 489497
14AHINGE, CENTER (RIGHT HAND)
14HINGE, CENTER (LEFT HAND)
15SHIM, CENTER HINGE
16MAY 489442
19HOUSING, WATER FILTER
20BFILLER, CORNER (GREY)
20FILLER, WRAPPER (WHITE)
20AFILLER, WRAPPER (BLACK)
21GRILLE (INCLUDES ILLUS. 20) (WHITE)
21AGRILLE (INCLUDES ILLUS. 20) (BLACK)
21BGRILLE (GREY)
22DRUM, TOE GRILLE
23CLIP, ROLLER
24TUBE, FILTER OUTLET
25CCOVER, HINGE (RIGHT HAND (BLACK))
25COVER, HINGE (LEFT HAND (WHITE))
25ACOVER, HINGE (RIGHT HAND (WHITE))
25BCOVER, HINGE (LEFT HAND (BLACK))
25DCOVER, HINGE (LEFT HAND (GREY))
25ECOVER, HINGE (RIGHT HAND (GREY))
26COVER, WATER FILTER
27COVER, UNIT
28LINER (NOT A SERVICEABLE PART)
29Seal
30FITTING, WATER TUBE
31Screw
32TUBE, CABINET WATER
33TUBE, WATER
