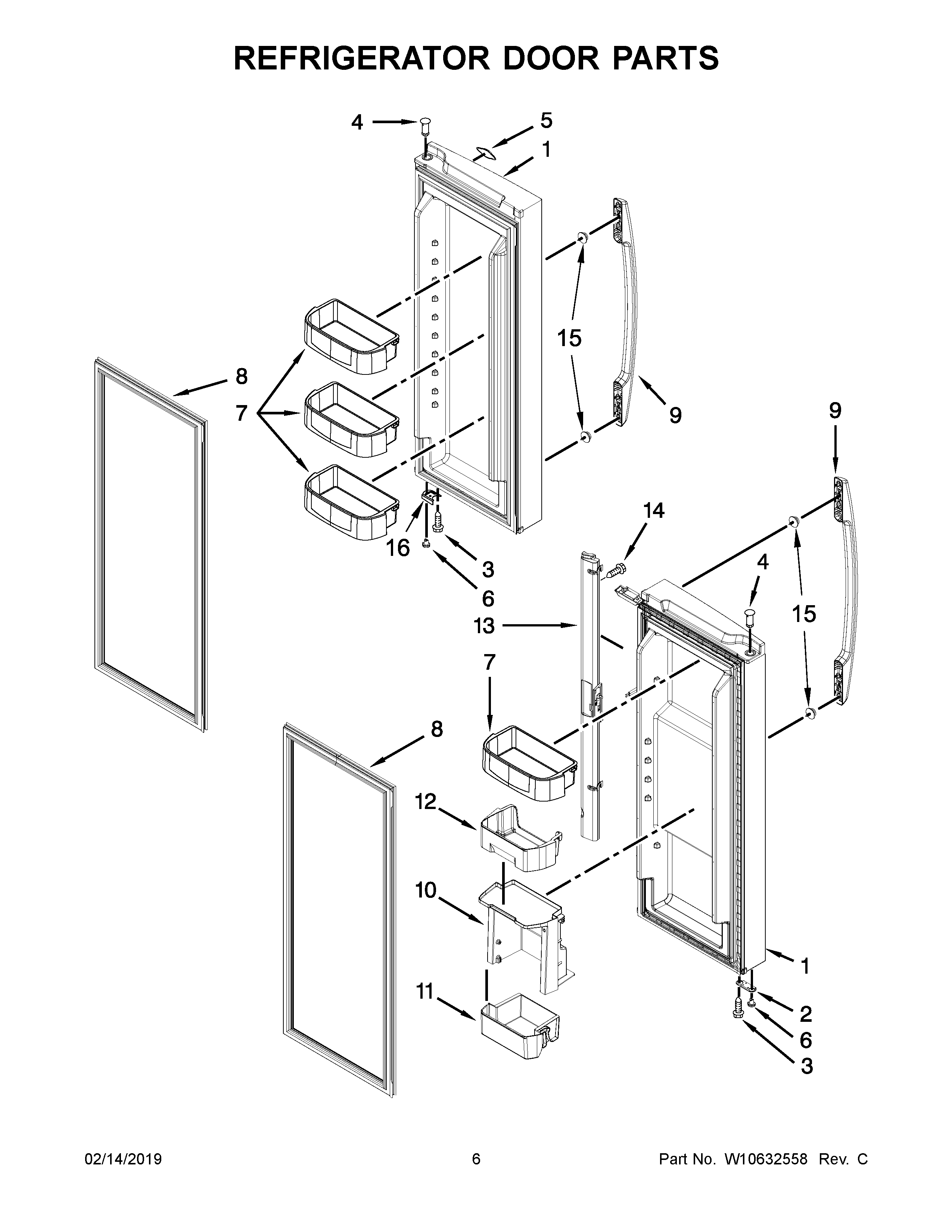

MFW2055YEB01 04 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1ADOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (BLACK))
1DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (WHITE))
1CDOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (WHITE))
1EDOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (STAINLESS))
1BDOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (STAINLESS))
1DDOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (BLACK))
2MAY 2189202
3MAY 489276
4AMAY W10334042
4THIMBLE (WHITE)
5Nameplate
6CLOSURE, DOOR
7BIN, MEDIUM
8BGASKET, DOOR (GREY)
8GASKET, DOOR (BEIGE)
8AGASKET, DOOR (BLACK)
9BHANDLE, DOOR STAINLESS
9MAY W10252284
9AHANDLE, DOOR (BLACK)
10COMPARTMENT, UTILITY
11BIN, LOW PROFILE
12BIN, SHALLOW
13BASSEMBLY, MULLION (GREY)
13AASSEMBLY, MULLION (BLACK)
13ASSEMBLY, MULLION (WHITE)
14Screw (4)
15MAY W10129563
16BRACKET, DOOR STOP
