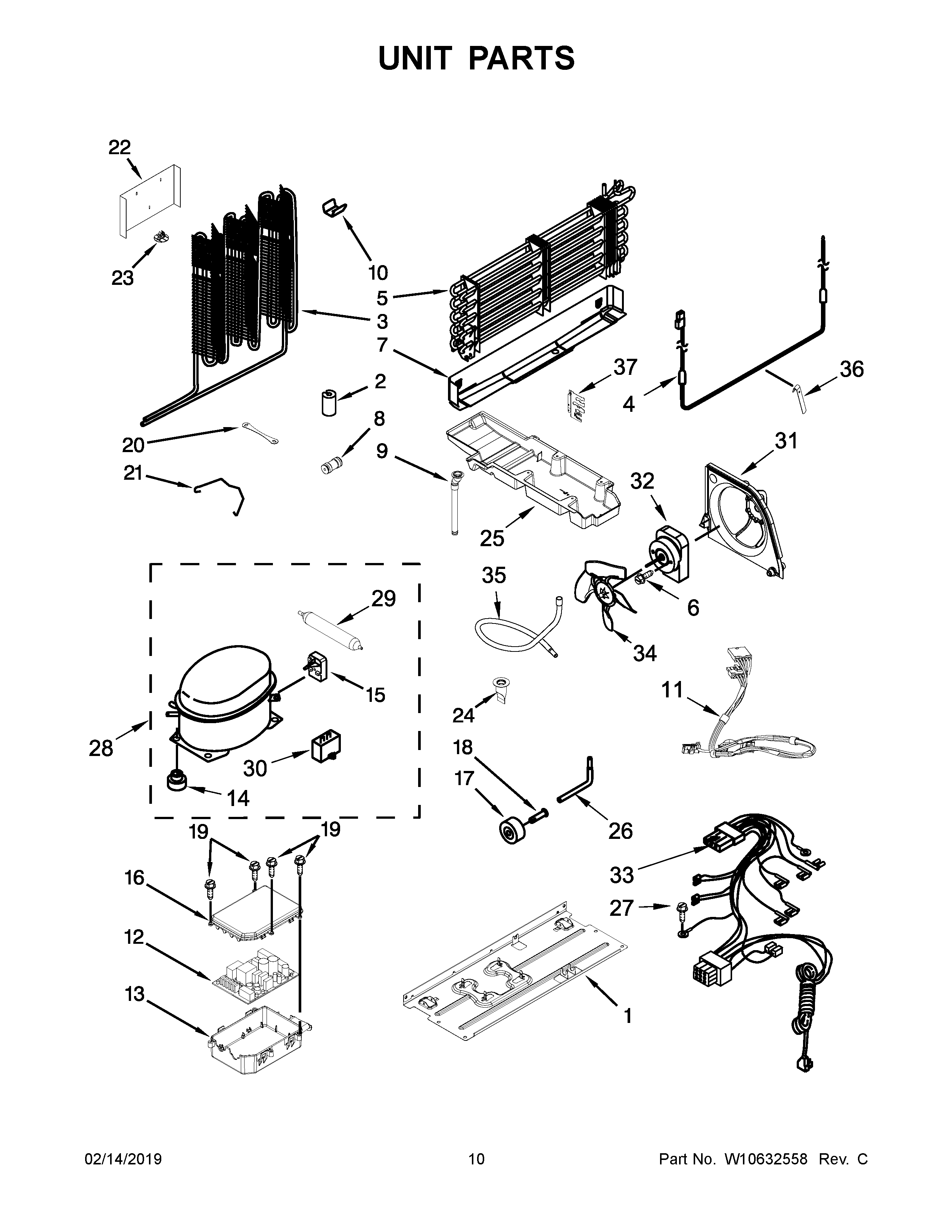

MFW2055YEB01 06 – UNIT PARTS

Products

Position	Product
NI	MAY 876764
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY W10300116
2	GROMMET, CONDENSER
3	CONDENSER
4	HEATER, DEFROST
5	ASSEMBLY, EVAPORATOR
6	MAY 8533961
7	MAY W10314195
8	CONNECTOR, UNION
9	TUBE, DRAIN
10	CLIP, CONDENSER
11	ASSEMBLY, LOW VOLTAGE WIRE
12	MAY W10892333
13	BOX, CONTROL
14	GROMMET
15	START PROTECT, COMBO (START DEVICE, COMBINATION (START RELAY AND OVERLOAD) FOR SERVICE COMPRESSOR ONLY)
16	COVER, ELECTRONIC CONTROL
17	MAY W10475495
18	MAY 2179826
19	MAY 8533859
20	MAY W10236396
21	Clip, Retaining
22	COVER, CONDENSER BOTTOM
23	MAY W10815861
24	VALVE, DRAIN
25	TRAY, DRAIN
26	MAY VS20001
27	MAY 488500
28	MAY W10391109
29	DRIER
30	CAPACITOR
31	MAY 2315541
32	MOTOR, CONDENSER
33	ASSEMBLY, UNIT WIRE
34	MAY W10817071
35	MAY W10466682
36	MAY 2258429
37	BRACKET, EVAPORATOR
