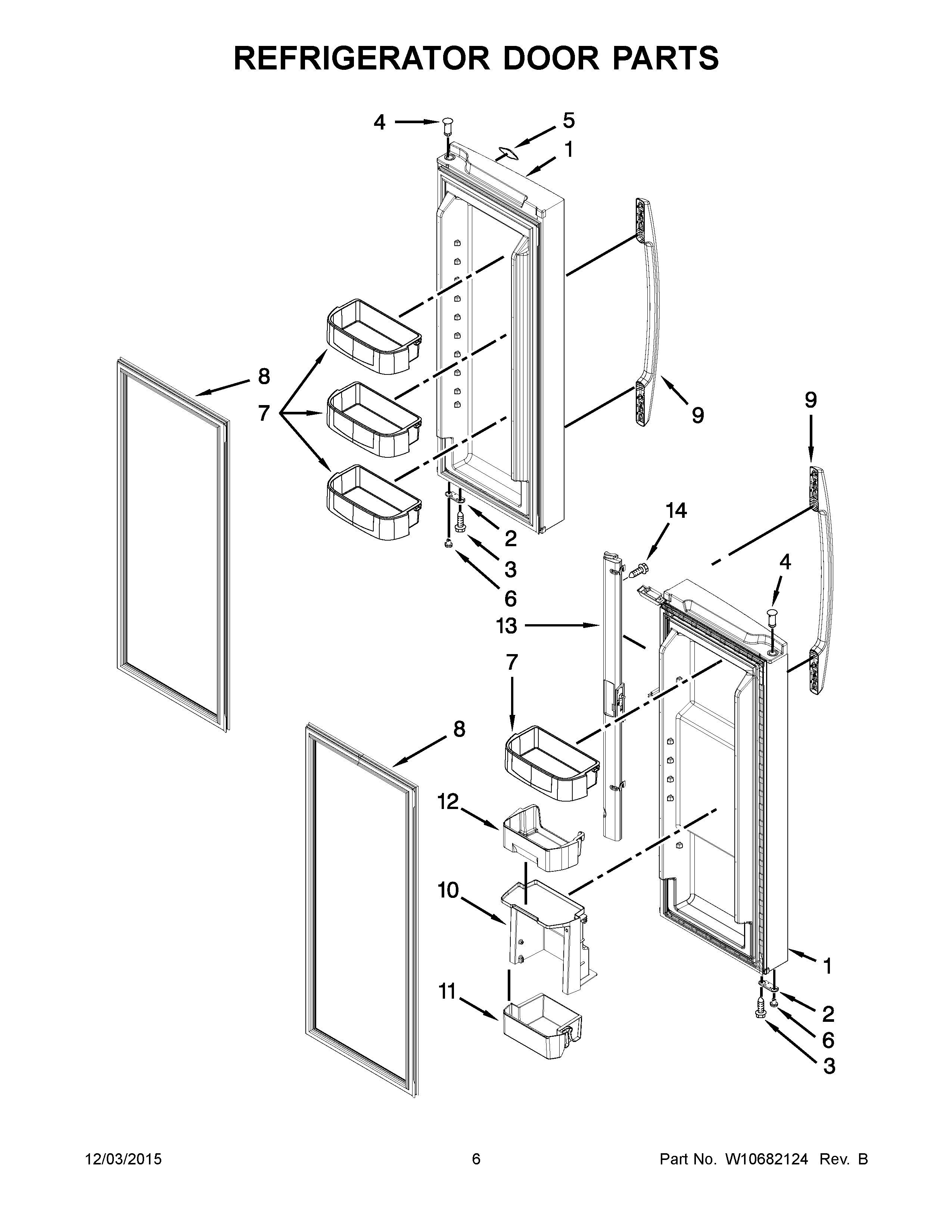

MFW2055YEB02 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1E	DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (STAINLESS))
1D	DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (STAINLESS))
1C	DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (BLACK))
1B	DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (BLACK))
1A	DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (WHITE))
1	DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (WHITE))
2	MAY 2189202
3	MAY 489276
4	THIMBLE (WHITE)
4A	MAY W10334042
5	Nameplate
6	CLOSURE, DOOR
7	BIN, MEDIUM
8B	GASKET, DOOR (GREY)
8	GASKET, DOOR (BEIGE)
8A	GASKET, DOOR (BLACK)
9A	HANDLE, DOOR (BLACK)
9B	HANDLE, DOOR STAINLESS
9	MAY W10252284
10	COMPARTMENT, UTILITY
11	BIN, SHALLOW
12	BIN, LOW PROFILE
13B	ASSEMBLY, MULLION (GREY)
13A	ASSEMBLY, MULLION (BLACK)
13	ASSEMBLY, MULLION (WHITE)
14	Screw (4)
