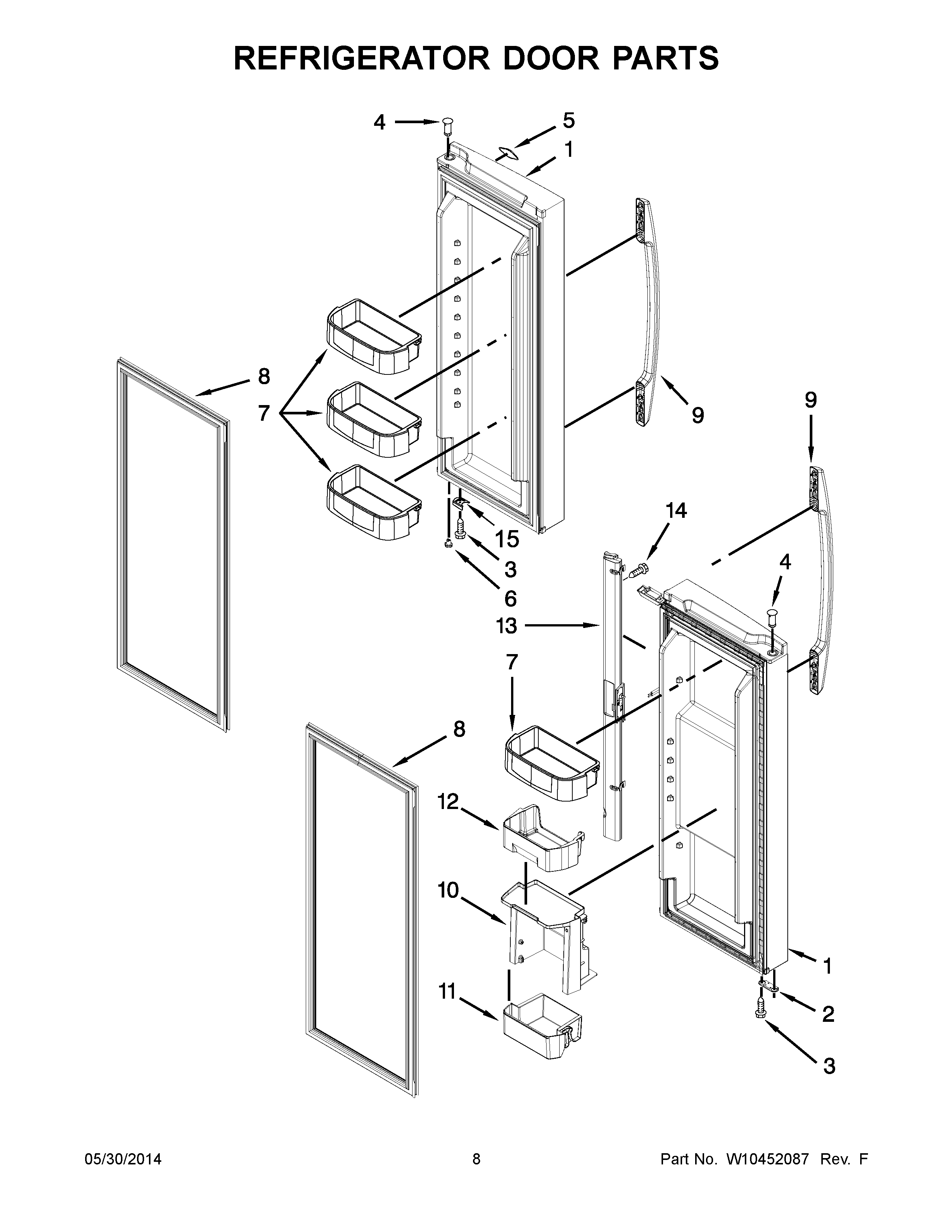

MFW2055YEM00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (WHITE))
1MAY W10404369
1DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (BLACK))
1MAY W10416544
1DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (STAINLESS))
1MAY W10416547
2MAY 2189202
3MAY 489276
4MAY W10334042
4THIMBLE (WHITE)
5Nameplate
6CLOSURE, DOOR
7BIN, MEDIUM
8GASKET, DOOR (GREY)
8GASKET, DOOR (BLACK)
8GASKET, DOOR (BEIGE)
9HANDLE, DOOR STAINLESS
9MAY W10252284
9HANDLE, DOOR (BLACK)
10COMPARTMENT, UTILITY
11BIN, SHALLOW
12BIN, LOW PROFILE
13ASSEMBLY, MULLION (WHITE)
13ASSEMBLY, MULLION (BLACK)
13ASSEMBLY, MULLION (GREY)
14Screw (4)
15BRACKET, DOOR STOP
