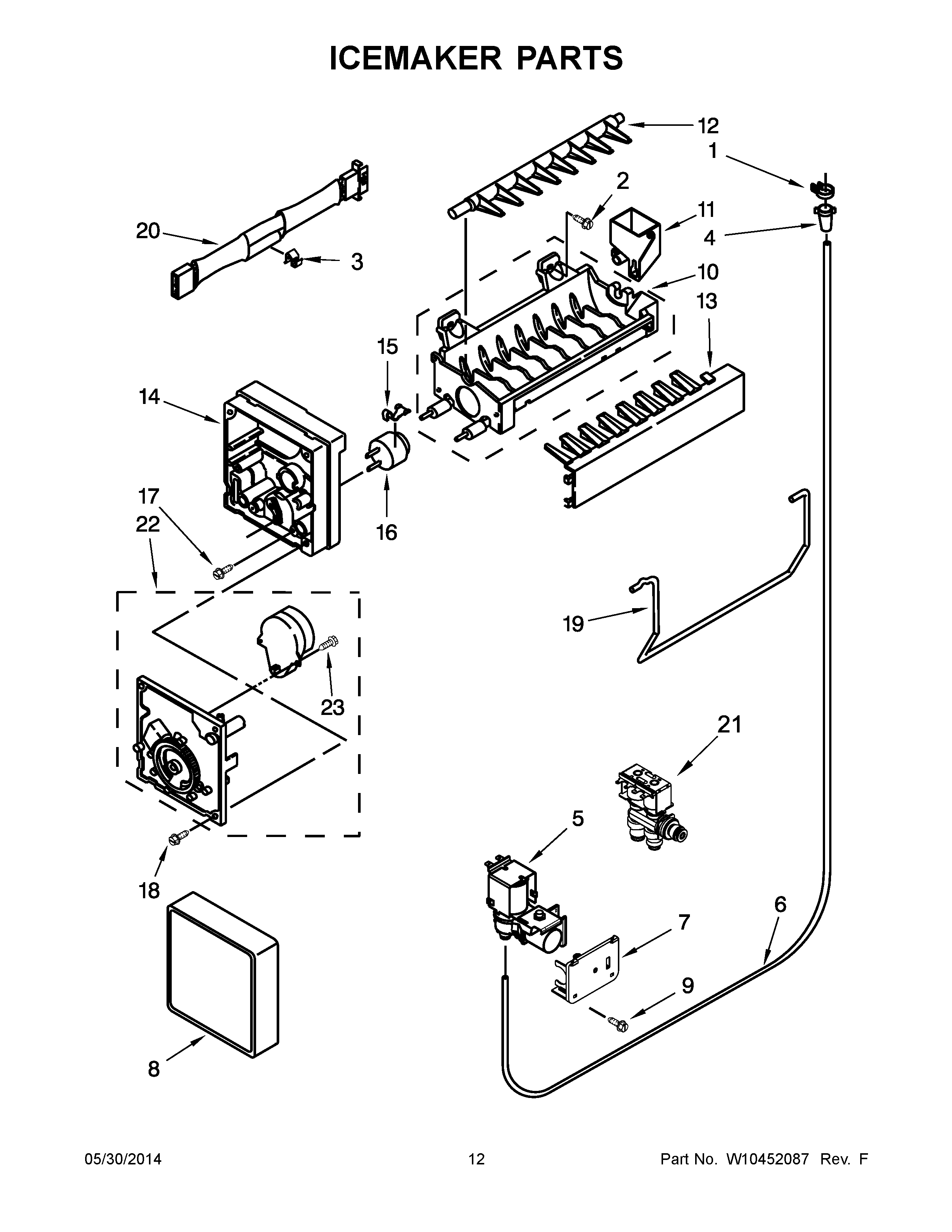

MFW2055YEM00 07 – ICEMAKER PARTS

Products

Position	Product
1	CLAMP, TUBE
2	Screw
3	Clip
4	MAY 2181939
5	MAY W10238100
6	TUBE, CABINET WATER
7	BRACKET, WATER VALVE
8	COVER
9	MAY 489442
10	MAY W10122527
11	MAY W10435665
12	MAY 627843
13	ICE STRIPPER
14	MAY 2194712
15	MAY 2315522
16	Thermostat (Also Order 542369 Cement Alumilastic)
17	Screw (2)
18	MAY 489276
19	ARM, SHUT OFF
20	ASSEMBLY, ICE MAKER WIRE
21	ASSEMBLY, DUAL VALVE
22	MODULE ASSEMBLY (INCLUDES ITEM 24)
23	MAY 489136
100	MAY W10190952
