MFW2055YEM00 08 – SHELF PARTS

MFW2055YEM00 08 – SHELF PARTS

Written by

in

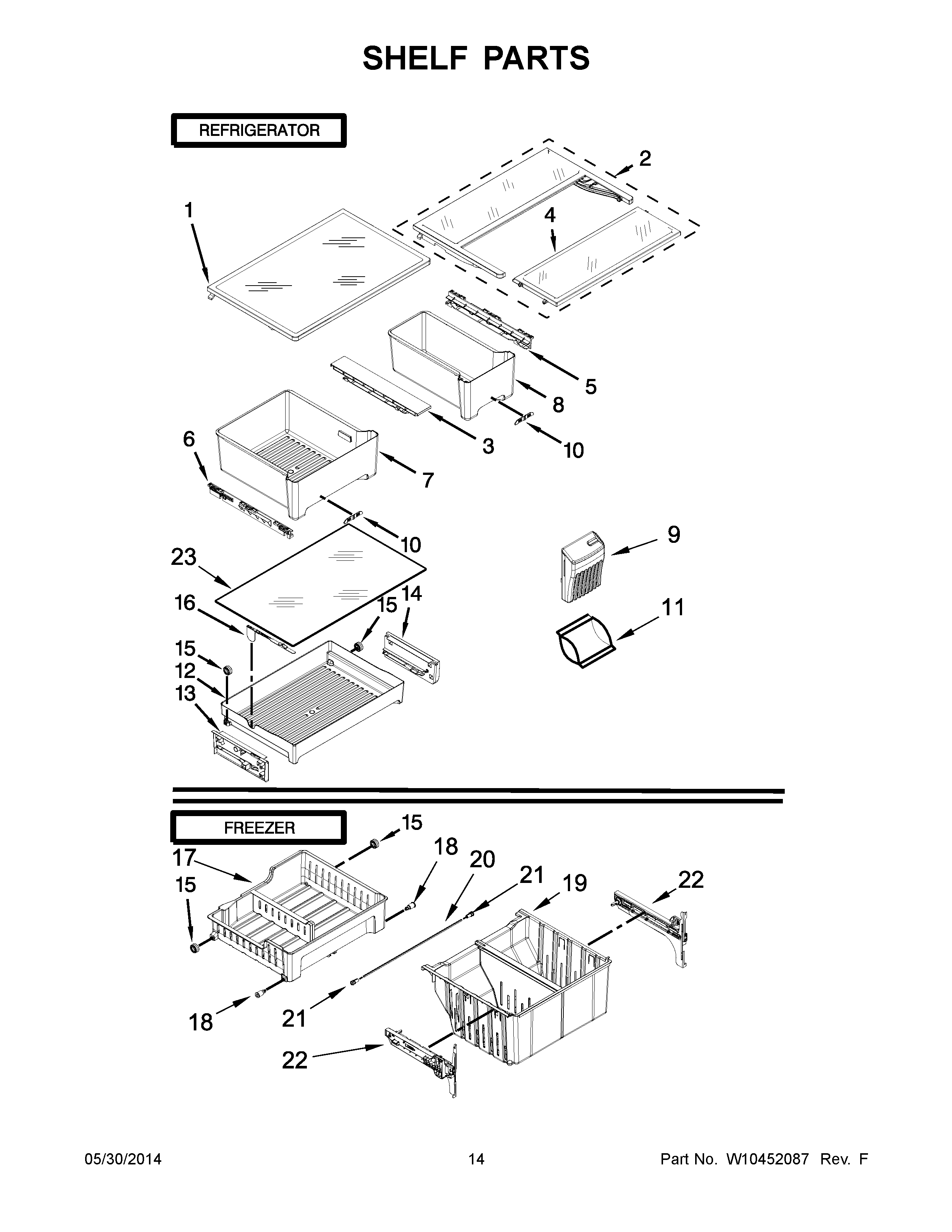

MFW2055YEM00 08 – SHELF PARTS

Products

PositionProduct
1ASSEMBLY, FULL SHELF (30")
2ASSEMBLY, FLIP DOWN SHELF
3RAIL, TRACK (CENTER)
4SHELF, FLIP DOWN
5RAIL, TRACK (RIGHT HAND)
6RAIL, TRACK (LEFT HAND)
7PAN, CRISPER (16")
8PAN, CRISPER (8")
9MAY W10408748
10CONTROL, HUMIDITY
11MAY W10346771
12ASSEMBLY, PANTRY DELI PAN
13RAIL, PANTRY (LEFT HAND)
14RAIL, PANTRY (RIGHT HAND)
15MAY W10278139
16MAY W10411411
17BIN, UPPER FREEZER
18MAY W10257246
19BASKET, LOWER FREEZER
20MAY W10371538
21COLLAR, GEAR
22ADAPTOR, FREEZER (RIGHT HAND)
22ADAPTOR, FREEZER (LEFT HAND)
23GLASS, PANTRY COVER
