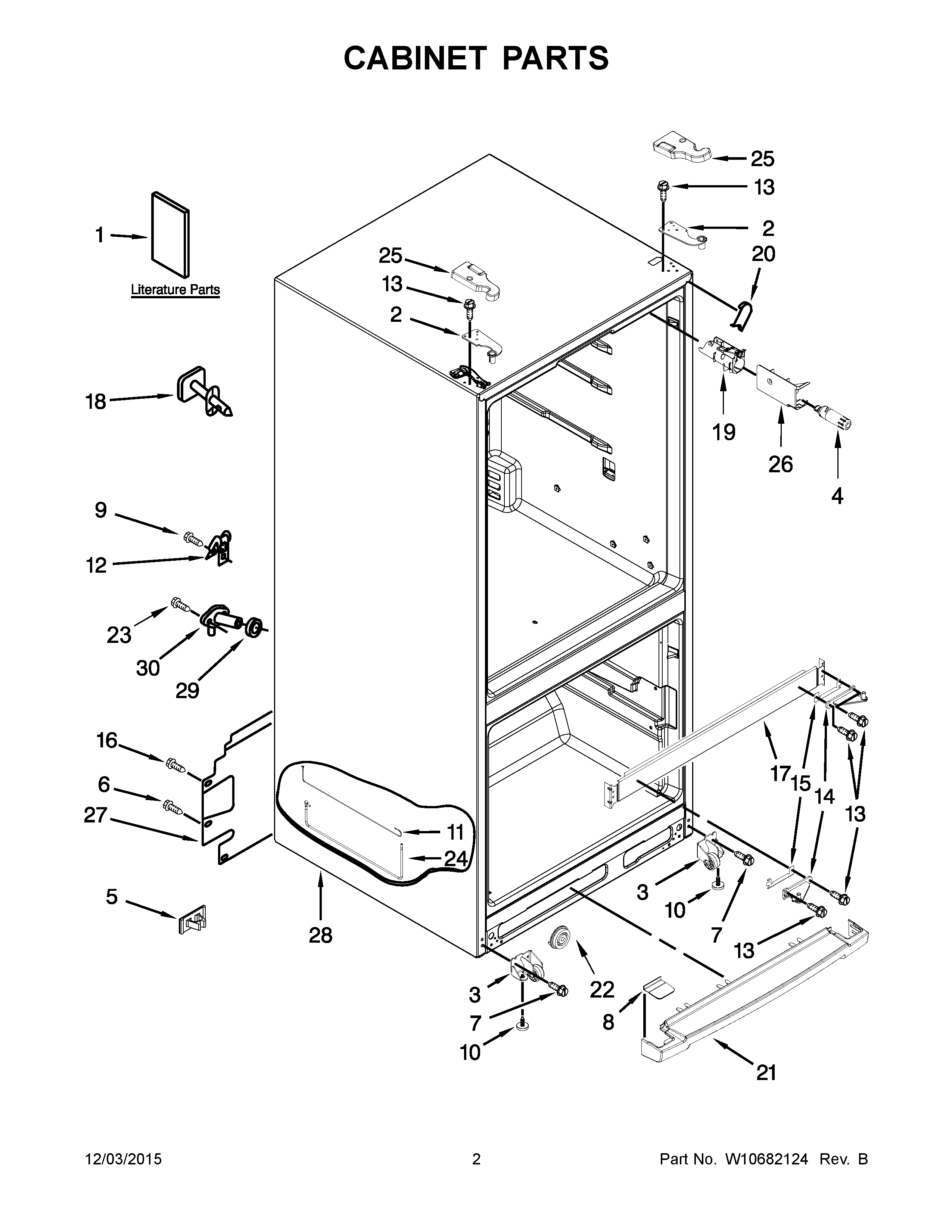

MFW2055YEM02 02 – CABINET PARTS

Products

Position	Product
1A	MAY W10458271
1	SERVICE & WIRING SHEET
1C	ICEMAKER SERVICE SHEET
1B	USE AND CARE GUIDE
2	HINGE, TOP (LEFT HAND)
2A	HINGE, TOP (RIGHT HAND)
3	ROLLER, FRONT (LEFT HAND)
3A	ROLLER, FRONT (RIGHT HAND)
4	MAY W10569758
5	CLIP, TUBE
6	MAY 2262176
8B	COVER, TOE GRILLE (GREY)
8	ENDCAP, GRILLE (WHITE)
8A	ENDCAP, GRILLE (BLACK)
10	Brake, Foot
11	MAY W10449619
12	MAY 549193
13	MAY 489497
14	MAY W10521411
14A	MAY W10521409
15	SHIM, CENTER HINGE
16	MAY 489442
19	MAY W10346257
20	CORNER FILLER (WHITE)
20A	CORNER FILLER (BLACK)
20B	FILLER, CORNER (GREY)
21B	GRILLE (GREY)
21	GRILLE (INCLUDES ILLUS. 20) (WHITE)
21A	GRILLE (INCLUDES ILLUS. 20) (BLACK)
22	DRUM, TOE GRILLE
23	Screw
24	MAY W10449617
25	COVER, HINGE (LEFT HAND (WHITE))
25E	COVER, HINGE (RIGHT HAND (GREY))
25D	COVER, HINGE (LEFT HAND (GREY))
25A	COVER, HINGE (RIGHT HAND (WHITE))
25C	COVER, HINGE (RIGHT HAND (BLACK))
25B	COVER, HINGE (LEFT HAND (BLACK))
26	COVER, WATER FILTER
27	MAY W10444800
28	LINER (NOT A SERVICEABLE PART)
29	Seal
30	FITTING, WATER TUBE
