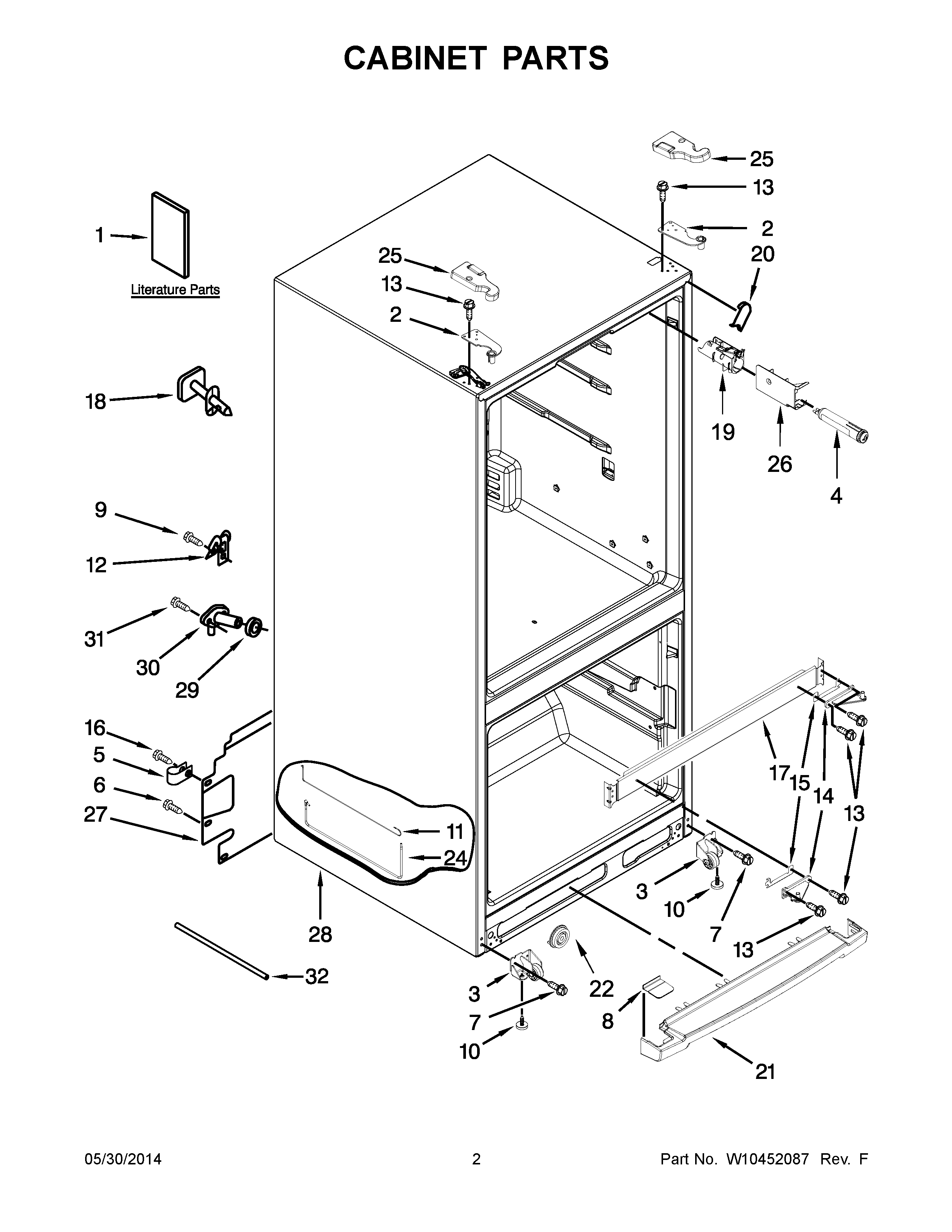

MFW2055YEW00 02 – CABINET PARTSadmin2025-04-26T09:07:55+00:00MFW2055YEW00 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10458271 |
| 1 | SERVICE AND WIRING SHEET |
| 1 | ICEMAKER SERVICE SHEET |
| 1 | USE AND CARE GUIDE |
| 2 | HINGE, TOP (RIGHT HAND) |
| 2 | HINGE, TOP (LEFT HAND) |
| 3 | ROLLER, FRONT (RIGHT HAND) |
| 3 | ROLLER, FRONT (LEFT HAND) |
| 4 | MAY W10217316 |
| 5 | CLAMP, TUBE |
| 6 | MAY 2262176 |
| 8 | COVER, TOE GRILLE (GREY) |
| 8 | ENDCAP, GRILLE (WHITE) |
| 8 | ENDCAP, GRILLE (BLACK) |
| 10 | Brake, Foot |
| 11 | MAY W10449619 |
| 12 | MAY 549193 |
| 13 | MAY 489497 |
| 14 | MAY W10521411 |
| 14 | MAY W10521409 |
| 15 | SHIM, CENTER HINGE |
| 16 | MAY 489442 |
| 19 | MAY W10346257 |
| 20 | CORNER FILLER (WHITE) |
| 20 | FILLER, CORNER (GREY) |
| 20 | CORNER FILLER (BLACK) |
| 21 | GRILLE (INCLUDES ILLUS. 20) (WHITE) |
| 21 | GRILLE (INCLUDES ILLUS. 20) (BLACK) |
| 21 | GRILLE (GREY) |
| 22 | DRUM, TOE GRILLE |
| 24 | MAY W10449617 |
| 25 | COVER, HINGE (RIGHT HAND (GREY)) |
| 25 | COVER, HINGE (LEFT HAND (GREY)) |
| 25 | COVER, HINGE (RIGHT HAND (BLACK)) |
| 25 | COVER, HINGE (LEFT HAND (BLACK)) |
| 25 | COVER, HINGE (RIGHT HAND (WHITE)) |
| 25 | COVER, HINGE (LEFT HAND (WHITE)) |
| 26 | COVER, WATER FILTER |
| 27 | MAY W10444800 |
| 28 | LINER (NOT A SERVICEABLE PART) |
| 29 | Seal |
| 30 | FITTING, WATER TUBE |
| 31 | Screw |
| 32 | TUBE, CABINET WATER |
