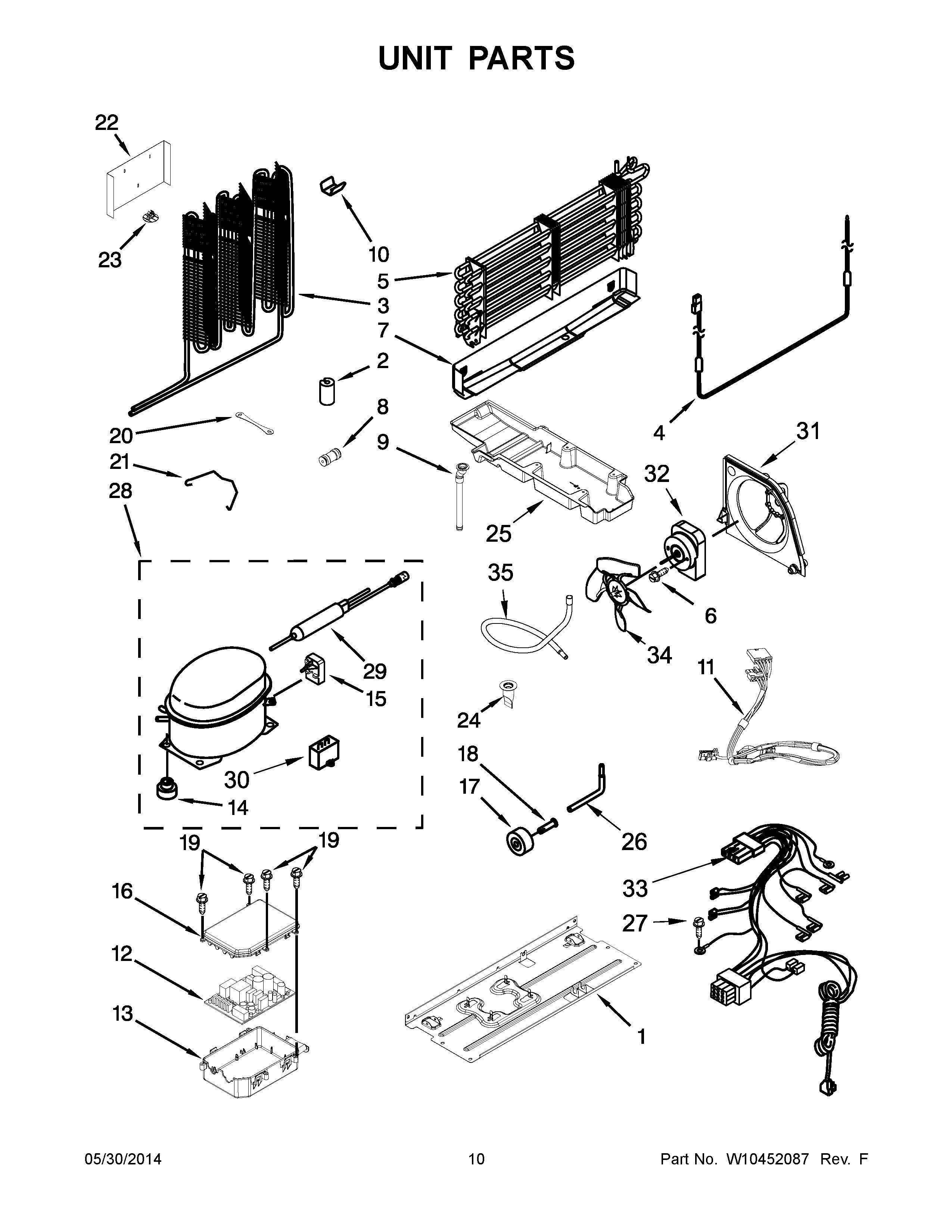

MFW2055YEW00 06 – UNIT PARTSadmin2025-04-26T09:06:12+00:00MFW2055YEW00 06 – UNIT PARTS
Products
| Position | Product |
|---|
| NI | MAY 876764 |
| NI | LINER (NOT A SERVICEABLE PART) |
| NI | Valve, Access (3/4``) |
| NI | Valve, Access (5/8``) |
| NI | Valve, Access (1/2``) |
| NI | VALVE, ACCESS (3/8``) |
| NI | Valve, Access (5/16``) |
| NI | VALVE, ACCESS (1/4``) |
| 1 | MAY W10300116 |
| 2 | GROMMET, CONDENSER |
| 3 | CONDENSER |
| 4 | HEATER, DEFROST |
| 5 | ASSEMBLY, EVAPORATOR |
| 6 | MAY 8533961 |
| 7 | MAY W10314195 |
| 8 | CONNECTOR, UNION |
| 9 | TUBE, DRAIN |
| 10 | CLIP, CONDENSER |
| 11 | ASSEMBLY, LOW VOLTAGE WIRE |
| 12 | CONTROL, ELECTRONIC |
| 13 | MAY W10370696 |
| 14 | GROMMET |
| 15 | START PROTECT, COMBO (START DEVICE, COMBINATION (START RELAY AND OVERLOAD) FOR SERVICE COMPRESSOR ONLY) |
| 16 | COVER, ELECTRONIC CONTROL |
| 17 | MAY W10475495 |
| 18 | MAY 2179826 |
| 19 | MAY 8533859 |
| 20 | MAY W10236396 |
| 21 | Clip, Retaining |
| 22 | COVER, CONDENSER BOTTOM |
| 23 | CLIP, BOTTOM COVER |
| 24 | VALVE, DRAIN |
| 25 | MAY W10466213 |
| 26 | MAY VS20001 |
| 27 | MAY 488500 |
| 28 | MAY W10391109 |
| 29 | DRIER (PRODUCTION) |
| 30 | CAPACITATOR (SERVICE) |
| 31 | MAY 2315541 |
| 32 | MOTOR, CONDENSOR |
| 33 | MAY W10390391 |
| 34 | MAY W10139483 |
| 35 | MAY W10466682 |
