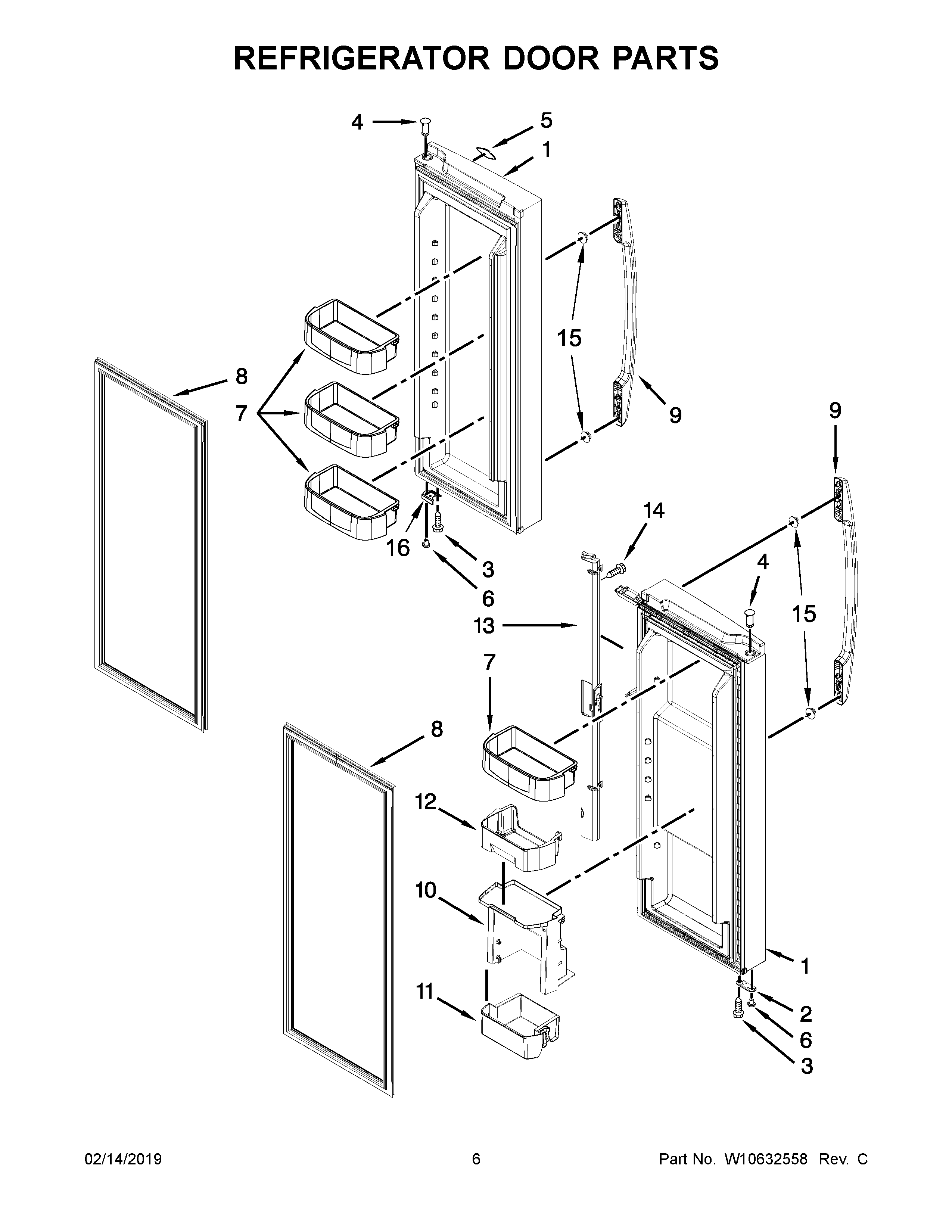

MFW2055YEW01 04 – REFRIGERATOR DOOR PARTSadmin2025-04-26T09:09:01+00:00MFW2055YEW01 04 – REFRIGERATOR DOOR PARTS
Products
| Position | Product |
|---|
| 1A | DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (BLACK)) |
| 1 | DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (WHITE)) |
| 1C | DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (WHITE)) |
| 1E | DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (STAINLESS)) |
| 1B | DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (LEFT HAND (STAINLESS)) |
| 1D | DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) (RIGHT HAND (BLACK)) |
| 2 | MAY 2189202 |
| 3 | MAY 489276 |
| 4A | MAY W10334042 |
| 4 | THIMBLE (WHITE) |
| 5 | Nameplate |
| 6 | CLOSURE, DOOR |
| 7 | BIN, MEDIUM |
| 8B | GASKET, DOOR (GREY) |
| 8 | GASKET, DOOR (BEIGE) |
| 8A | GASKET, DOOR (BLACK) |
| 9B | HANDLE, DOOR STAINLESS |
| 9 | MAY W10252284 |
| 9A | HANDLE, DOOR (BLACK) |
| 10 | COMPARTMENT, UTILITY |
| 11 | BIN, LOW PROFILE |
| 12 | BIN, SHALLOW |
| 13B | ASSEMBLY, MULLION (GREY) |
| 13A | ASSEMBLY, MULLION (BLACK) |
| 13 | ASSEMBLY, MULLION (WHITE) |
| 14 | Screw (4) |
| 15 | MAY W10129563 |
| 16 | BRACKET, DOOR STOP |
