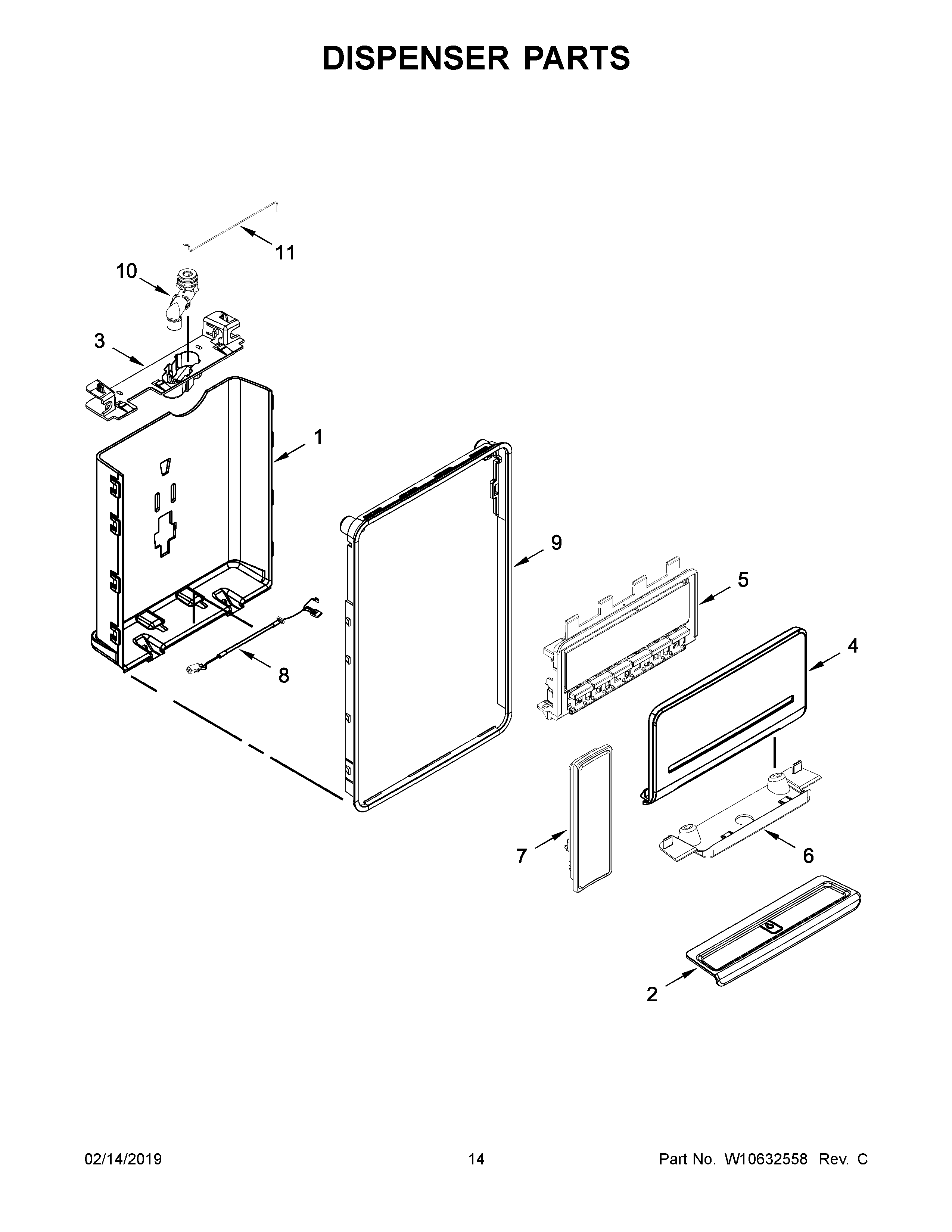

MFW2055YEW01 08 – DISPENSER PARTSadmin2025-04-26T09:09:10+00:00MFW2055YEW01 08 – DISPENSER PARTS
Products
| Position | Product |
|---|
| 1 | LINER (NOT A SERVICEABLE PART) |
| 2B | TRAY, DRIP (GREY) |
| 2A | TRAY, DRIP (BLACK) |
| 2 | TRAY, DRIP (WHITE) |
| 3 | SEPARATOR |
| 4 | FASCIA (SILVER MIRROR) |
| 4A | FASCIA (BLACK) |
| 5 | ASSEMBLY, USER INTERFACE |
| 6 | COVER, SEPARATOR (CHROMIUM FROST) |
| 7B | ASSEMBLY, PAD (GREY) |
| 7A | ASSEMBLY, PAD (BLACK) |
| 7 | ASSEMBLY, PAD (WHITE) |
| 8 | ASSEMBLY, DISPENSER WIRE |
| 9 | RING, TRIM |
| 10 | ASSEMBLY, SPIGOT |
| 11 | TUBE, WATER DISPENSER |
