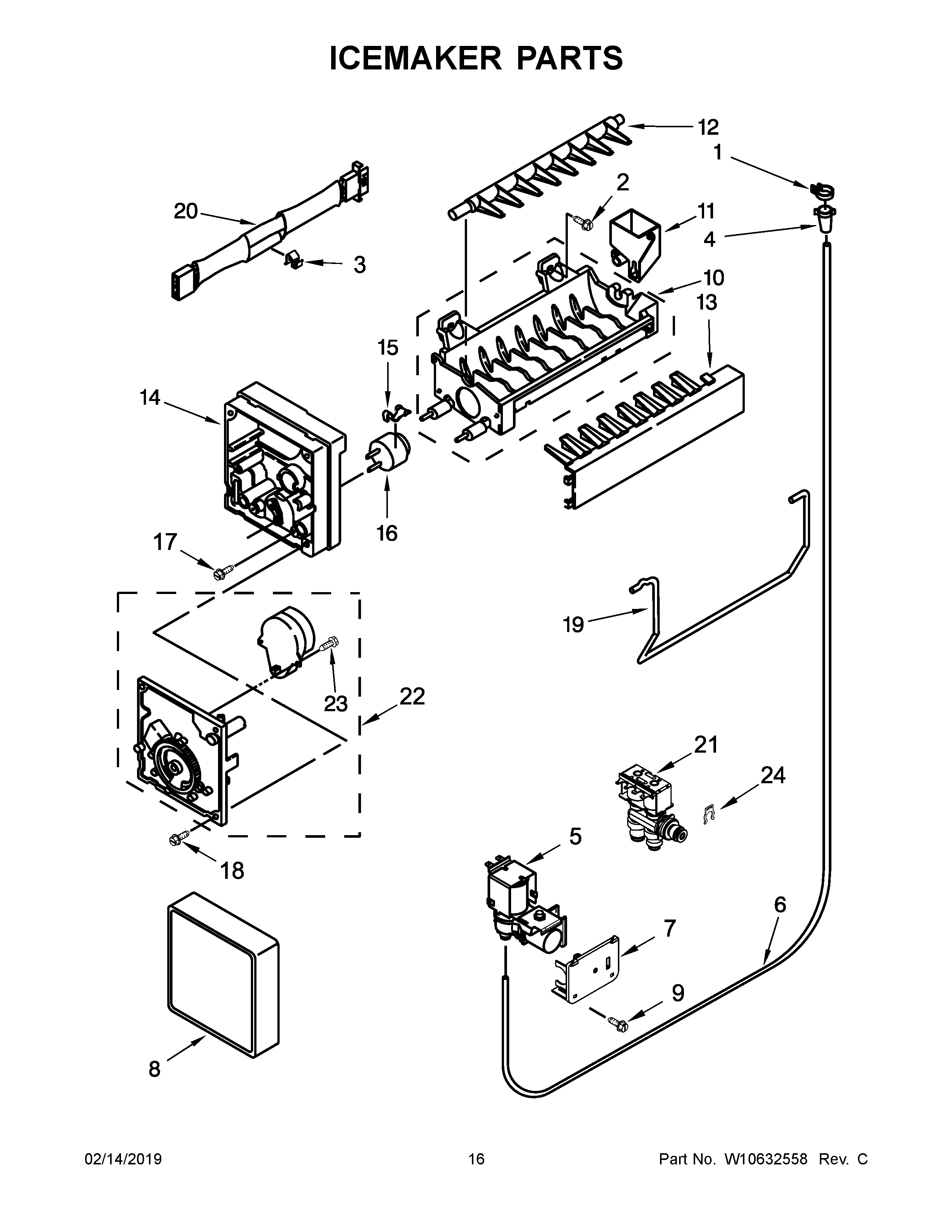

MFW2055YEW01 09 – ICEMAKER PARTS

Products

Position	Product
1	CLAMP, TUBE
2	Screw
3	Clip
4	MAY 2181939
5	MAY W10238100
6	MAY W10837812
7	BRACKET, WATER VALVE
8	COVER
9	MAY 489442
10	MAY W10122527
11	MAY W10435665
12	MAY 627843
13	ICE STRIPPER
14	MAY 2194712
15	MAY 2315522
16	Thermostat (Also Order 542369 Cement Alumilastic)
17	Screw (2)
18	MAY 489276
19	ARM, SHUT OFF
20	ASSEMBLY, ICE MAKER WIRE
21	VALVE, INLET
22	MODULE ASSEMBLY (INCLUDES ITEM 24)
23	MAY 489136
24	LOCKING RING (5/16)
100	ASSEMBLY, ICEMAKER
