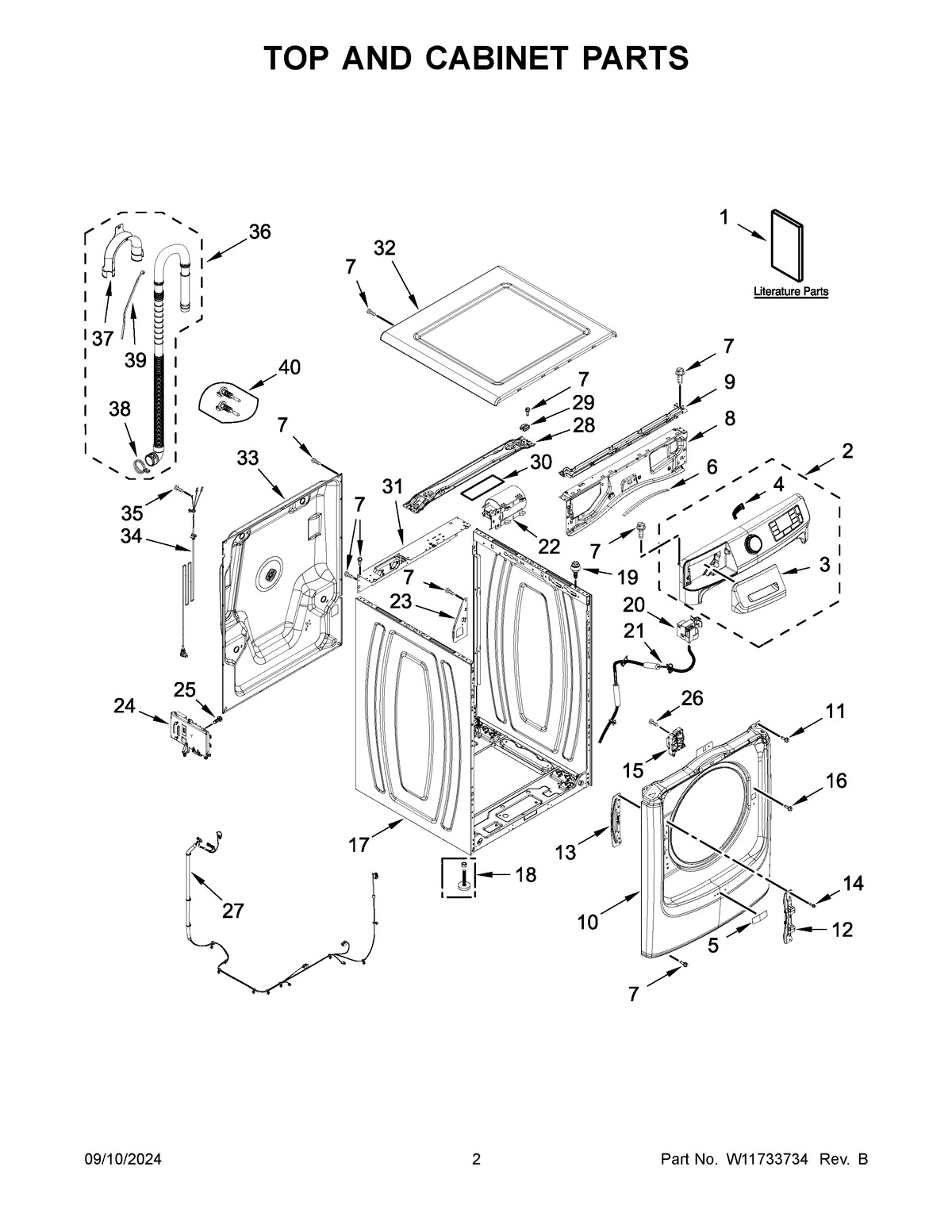

MFW7020RW0 02 – TOP AND CABINET PARTS

Products

Position	Product
1B	ENERGY GUIDE
1A	QUICK START GUIDE
1	OWNER'S MANUAL
3	HANDLE, DRAWER (WHITE)
4	JUMPER, HARNESS HMI (BOARD TO BOARD)
5	WPW10612925 Whirlpool Microwave Nameplate
6	W11316770 Whirlpool Protector
7	W11568617 Whirlpool Screw
8	W11314678 Whirlpool Bracket Assembly
9	W11458348 Whirlpool Channel
10	W11316249 Whirlpool Panel
11	W11573574 Whirlpool Screw
12	HINGE
13	W10299097 Whirlpool Bracket Assembly
14	SCREW
15	LATCH
16	WP8540282 Whirlpool Screw
17	W11352995 Whirlpool Cabinet Assembly
18	FOOT
19	W10208380 Whirlpool Screw
20	SWITCH-WL
21	W11456953 Whirlpool Hose
22	W11689659 Whirlpool Filter
23	W11316769 Whirlpool Bracket
24	CNTRL-ELEC + CORE
25	SCREW
26	W10306501 Whirlpool Screw
27	HARNESS, MAIN LOWER
28	W10467484 Whirlpool Bracket
29	W10245452 Whirlpool Retainer
30	FOAM PAD
31	W11353016 Whirlpool Bracket
32	WPW10208373 Whirlpool Top
33	W11315708 Whirlpool Panel
34	W11316254 Whirlpool Power Cord
35	W10846509 Whirlpool Screw
36	W11551765 Whirlpool Hose
37	WPW10280024 Whirlpool Retainer
38	WP356138 Whirlpool Hose Clamp
39	WPW10339879 Whirlpool Wire Tie
40	W11316629 Whirlpool Bolt
