MFW7020RW0 03 – DOOR PARTS – Aparts

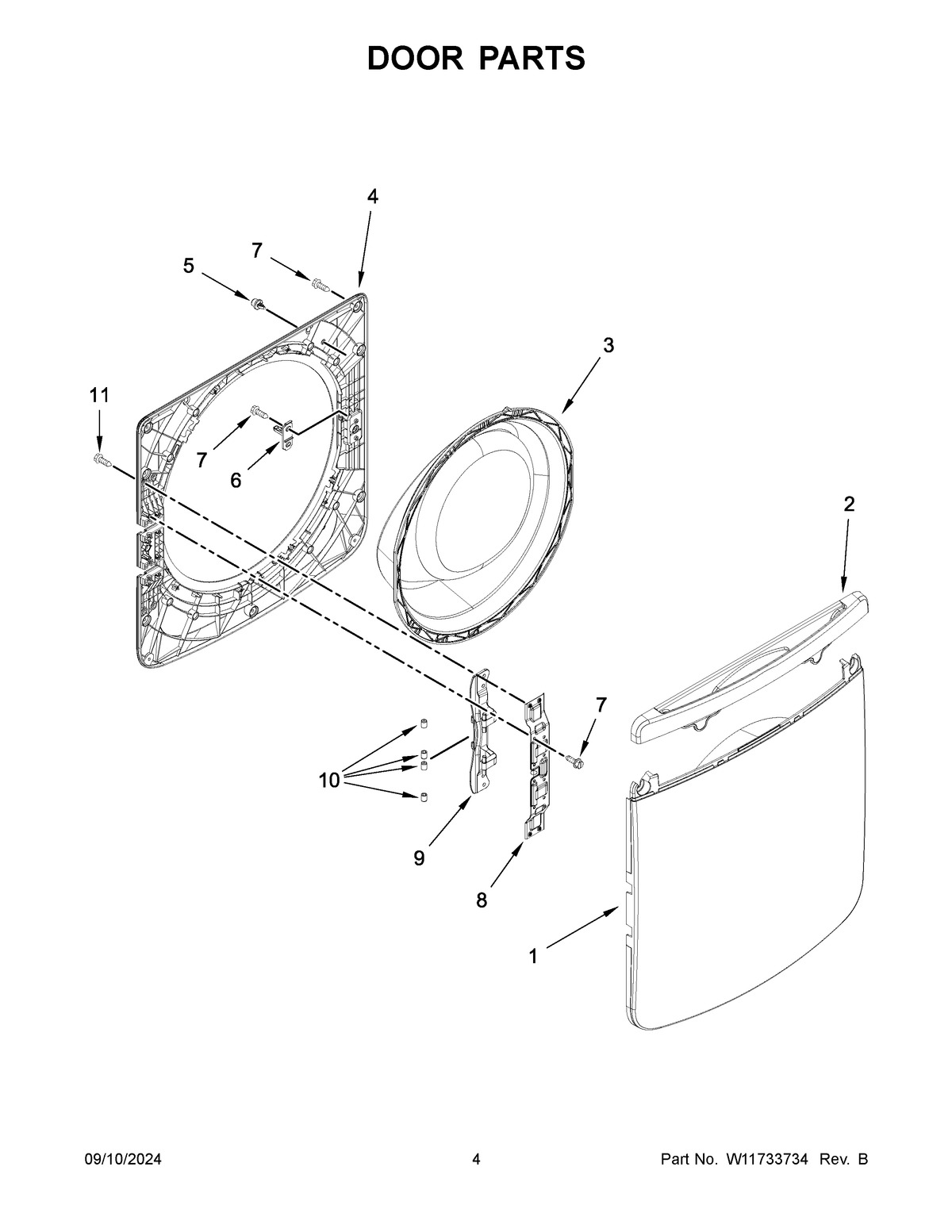

MFW7020RW0 03 – DOOR PARTS

Products

Position	Product
1	W11316913 Whirlpool Outer Door
2	W10626041 Whirlpool Handle
3	W11316777 Whirlpool Glass Door
4	W11316776 Whirlpool Inner Door
5	W11310051 Whirlpool Bumper
6	W11316914 Whirlpool Strike
7	WP8534022 Whirlpool Screw
8	W10839743 Whirlpool Bracket
9	HINGE
10	WPW10208398 Whirlpool Hinge Pin Cap
11	SCREW
