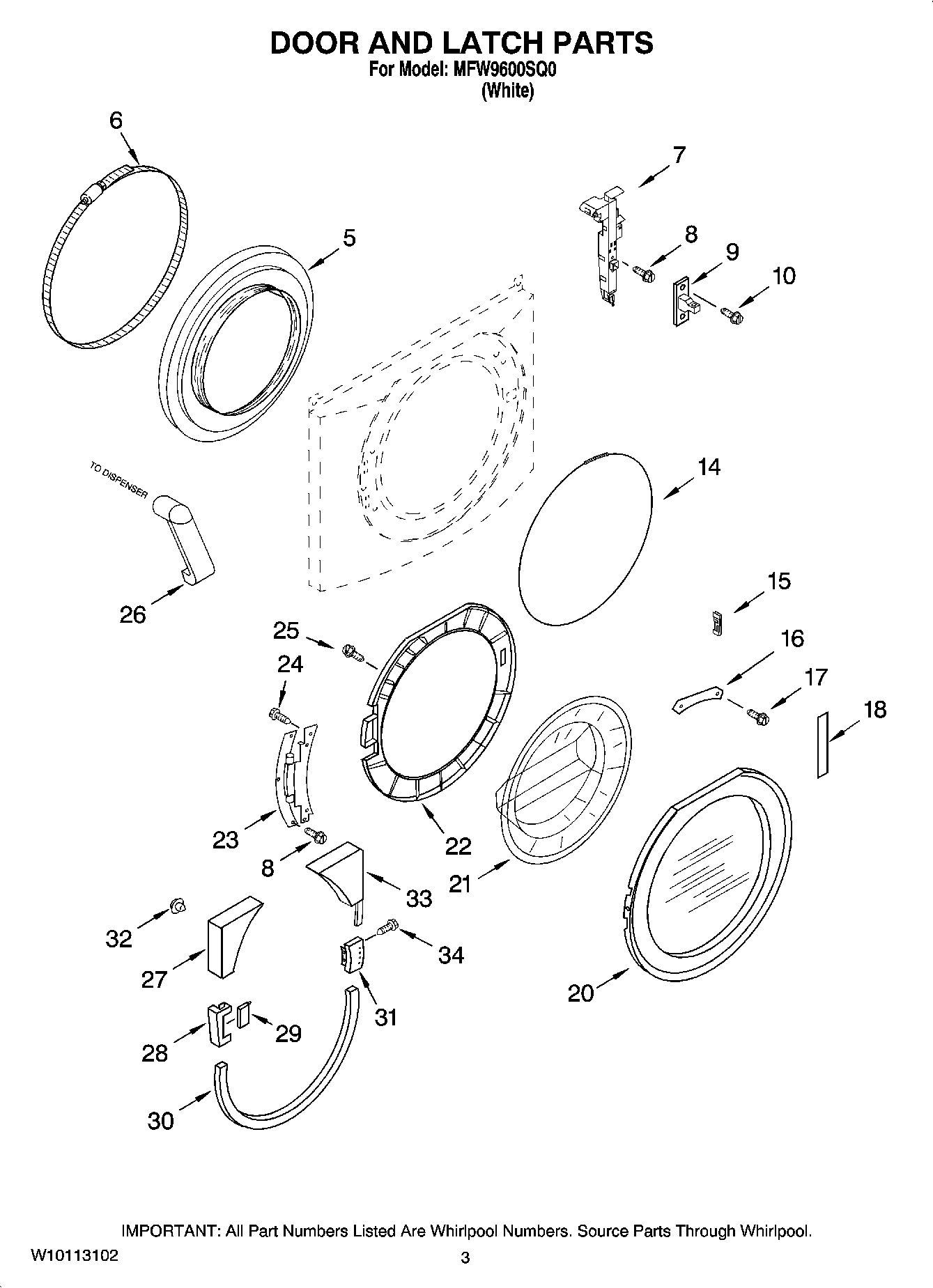

MFW9600SQ0 02 – DOOR AND LATCH PARTS

MFW9600SQ0 02 – DOOR AND LATCH PARTS

Written by

in

MFW9600SQ0 02 – DOOR AND LATCH PARTS

Products

PositionProduct
5MAY 8182119
6Clamp, Bellow To Tub
7MAY 8182634
8MAY 8181760
9MAY 8181651
10MAY 8181758
14Clamp, Bellow To Front Panel
15Clamp, Glass Support
16MAY 8181650
17MAY 8181785
18MAY 8182153
20Frame, Door Front Assembly
21MAY 8181655
22MAY 8182628
23MAY 8181843
24MAY 8181660
25MAY 8181661
26MAY 8181718
27Trim, Upper Left (White)
28Cover, Hinge (Outer) (White)
29Cover, Hinge (Inner) (White)
30Trim, Lower (White)
31Handle, Door (White)
32MAY 8182779
33Trim, Upper Right (White)
34MAY 8181759
