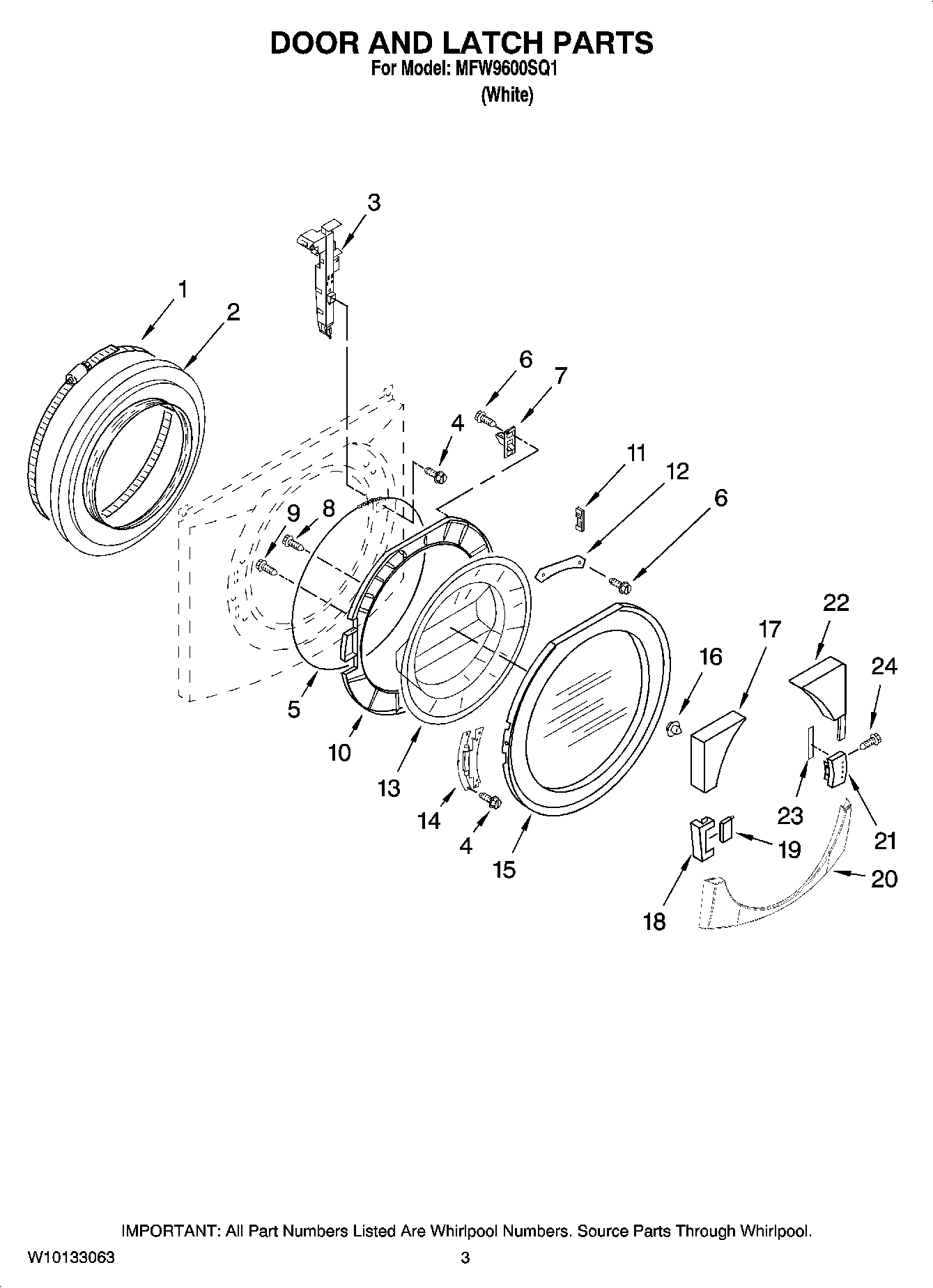

MFW9600SQ1 02 – DOOR AND LATCH PARTS

Products

PositionProduct
1Clamp, Bellow To Tub
2MAY 8182119
3MAY 8182634
4MAY 8181760
5Clamp, Bellow To Front Panel
6MAY 8181758
7MAY 8181651
8MAY 8181661
9MAY 8181660
10MAY 8182628
11MAY W10128586
12MAY 8181650
13MAY 8181655
14MAY 8181843
15Frame, Door Front Assembly
16MAY 8182779
17Trim, Upper Left (White)
18Cover, Hinge (Outer) (White)
19Cover, Hinge (Inner) (White)
20Trim, Lower (White)
21Handle, Door (White)
22Trim, Upper Right (White)
23MAY 8182153
24MAY 8181759
